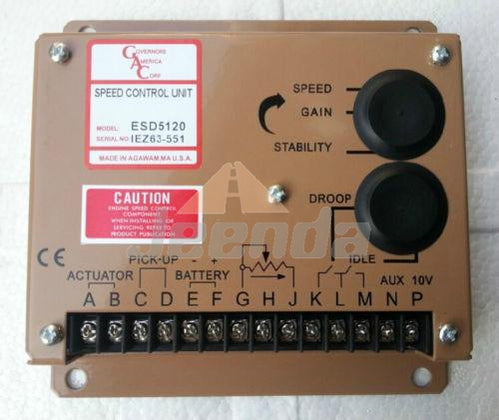

Electronic Engine Speed Controller ESD5120 for Governor Generator Genset Parts
Speed stability better than ¡À 0.25%
Speed range 1KHz ~ 7.5KHz
Thermal stability of ¡À 1% maximum
DROOP adjust the minimum position is 15Hz ¡À 6Hz / per ampere load current changes
Maximum position 400Hz ¡À 75Hz / per ampere load current changes
External speed adjustment ¡À 200Hz (external 1K¦¸)
AUX input sensitivity 148Hz / 1V., ¡À 10Hz., Impedance 1M¦¸
IDLE adjustment 160 ¡À 20Hz ~ 95% of rated speed
10V maximum output current 20mA
Environment:
Operating temperature range -40 ~ 85
Operating humidity range of 95% maximum
Storage temperature -55 ~ 90
Shock 20-100HZ 500mm/Sec.
Input Power:
Supply voltage 12V and 24V DC battery system
Ground negative polarity
Power consumption 50mA
The implementation of the minimum continuous current 2.5A; maximum 10A
Speed sensor signal 0.5 ~ 120 RMS
Note: The measured performance parameter is the frequency of 4000Hz
