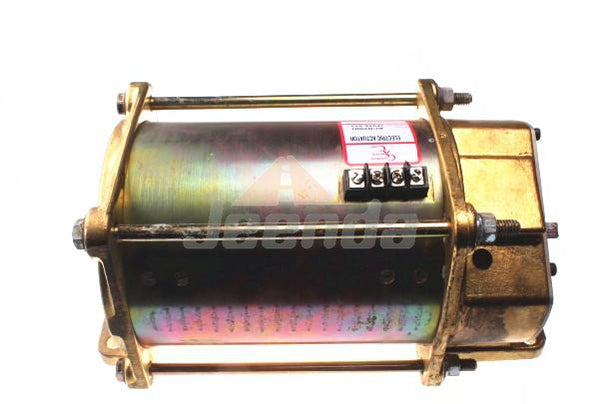

GAC Governors America Corp 2001 Series ACB2001 (24 Volt) Actuator
(24VDC / 12.0 Lb. Ft. Max Torque / 35¡ã Rotation)
The ACB2001 actuator is a rotary output, 24V, linear torque proportional electric servo designed for mechanical actuation of fuel system control levers requiring torques in the 5 lb-ft range. The actuator is energized by appropriate speed control unit signals and is capable of 35 degrees of rotation with torques as high as 12 Lb-Ft. Internal springs provide fail-safe operation by forcing the actuator to the fuel shut off position when the actuator is de-energized. Both CW and CCW shafts are available. Engine applications include large block pumps, and dual-medium and some large size carburetors.
Features:
|
Rapid Response to Transient Conditions
|
|
Mutliple Mounting Positions
|
|
Uni-Directional CW/CCW
|
|
Internal Return Spring
|
|
Maintenance Free
|
|
Universal Design
|
|
Easy Installation
|
