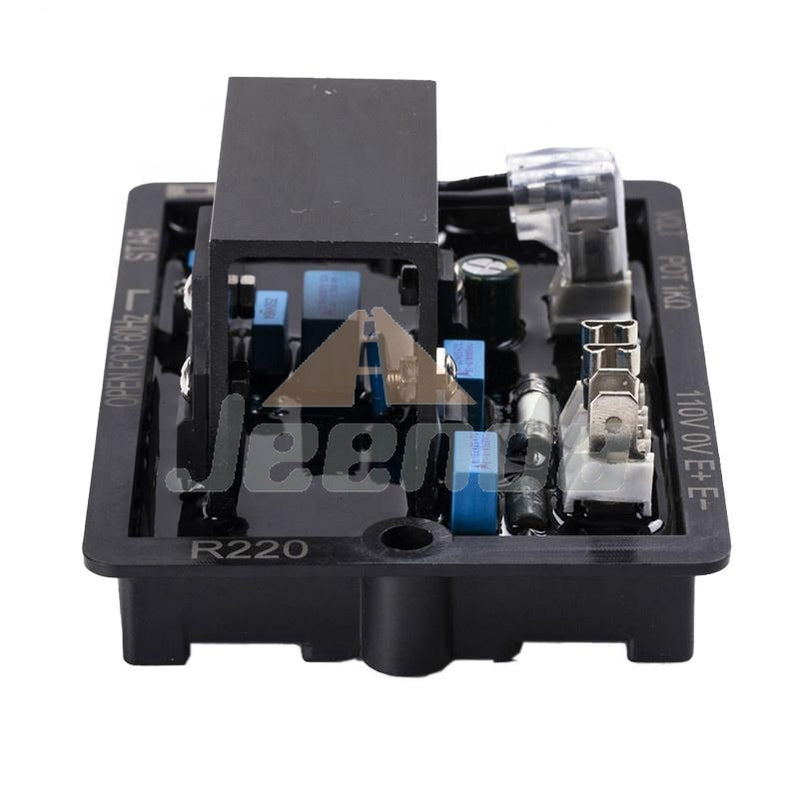

Free Shipping Automatic Voltage Regulator AVR R220 R220RVB1 for Leroy Somer AEM110RE028 Brushless Alternator
Details:
- Product Number:AVR R220
- Operation Voltage:190/240VAC
- Output Voltage:12V / 24V
- Temperature:12 mouths
- SAME EXACT AVR AS:
- Leroy Somer Voltage Regulator AEM110RE028 AVR
- FG Wilson Voltage Regulator 10000-47219 AVR
- Olympian Voltage Regulator 10000-47219 AVR
R220 AVR is used in LSA40 & LSA42.3 series alternators. The R220 AVR is a simple design, inexpensive and a perfect solution for small generators especially for standby or prime continuous applications.
Standard : for LSA 40 alternators.
Adapted to the SHUNT and AREP excitation system
Main characteristics
Voltage regulation +/- 0.5% at steady state and constant speed.
Response time 500 ms
Nominal excitation current : 3A
Maximum excitation current 7A for 10 sec.
Features:
Storage: -55°C ; +85°C
Operation : -40°C ; +65°C
Voltage regulation: ± 0.5%.
Voltage supply/sensing range 85 to 139 V (50/60 Hz)
Rapid response time (500 ms) for a transient voltage variation amplitude of ± 20%
Voltage setting P1
Stability setting P2
Power supply protected by 8 A fuse, slowblow action (tolerates 10 A for 10 s)
The fuse is impregnated in the resin, therefore it can not be replaced.
Frequency: 50 Hz with ST3 jumper - 60 Hz without ST3 jumper.
The size of the screwdriver tip used to adjust the potentiometer is 2.5 mm
Description:
1.R 220 is an analog A.V.R. with numerical regulation function.
2.It is designed for small alternators with a SHUNT excitation.
3.It controls the excitation current in order to maintain the output voltage of the alternator.
4.It is performant in terms of voltage regulation,simple to set , to use and is reliable.
