CHARACTERISTICS:
- 1. System type can set as S1 Mains S2 Mains, S1 Mains S2 Gen, S1 Gen S2 Mains, S1 Gen S2 Gen;

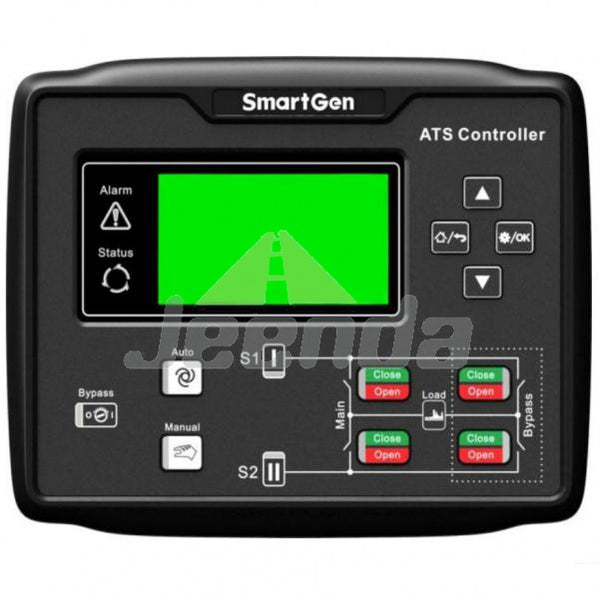

- 2. 132x64 LCD with backlight, multilingual interface (including English, simplified Chinese or other languages), push-button operation;
- 3. Collect and display 2-way 3-phase voltage, frequency and phase;
- 4. LCD displays position state of the main switch (work position, test position and isolation position) as well as state of bypass switch;
- 5. Display S1/S2 main switch and bypass switch total close times;
- 6. Display present continues power supply time and S1/S2 total power supply time;
- 7. For stored-energy type ATS, its close relay will active after the PF input is active;
- 8. Over/under voltage, loss of phase, reverse phase sequence, over/under frequency protection;
- 9. Automatic/Manual mode. In manual mode, can force the switch to close or open;
- 10. All parameters can be set on site. Passwords authentication ensures authorized staff operation only;
- 11. The Genset can be a manual test on-site to achieve start/stop operation;
- 12. The main switch has the function of automatic re-closing and close again when power off;
- 13. Applicable for single-bypass, dual-bypass and mutual backup dual-bypass ATS;
- 14. Applicable for manual control ATS and remote control ATS;
- 15. Applicable for 2 isolated neutral lines;
- 16. Real-time clock (RTC); Event log function (event log can record 99 items circularly);
- 17. Scheduled Run & Scheduled Not Run (can be set as start Genset once a day/week/month whether with load or not).
- 18. Can control two generators to work as Cycle Run mode, Master Run mode, and Balance Run mode.
- 19. Widely power supply range allows the controller can bear 80V instantaneous current;
- 20. Large terminal space allows the controller can bear maximum 625V input voltage;

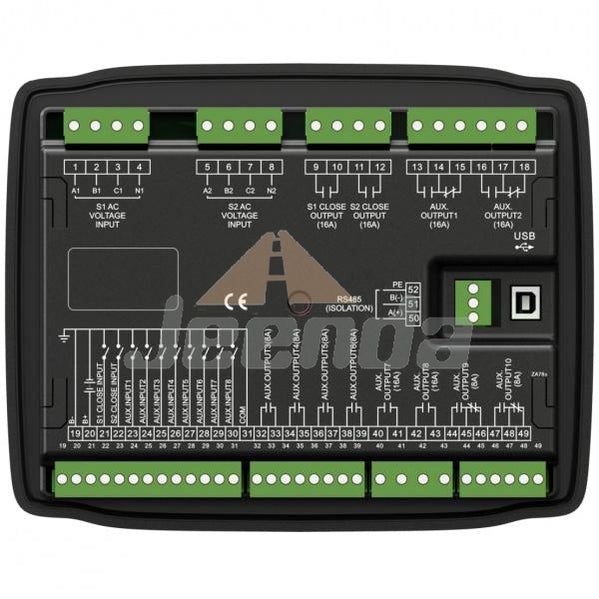

- 21. With RS485 isolated communication interface. With "remote controlling, remote measuring, remote communication, remote regulating" function by the Modbus communication protocol. Can remote start/stop the Genset and remote control the ATS to close or open?
- 22. The USB interface enables debug parameters locally and upgrade program;
- 23. Suitable for various AC systems (3 phase 4-wires, 3-phase 3-wires, single-phase 2-wire, and 2-phase 3-wire).
- 24. Modular design, self-extinguishing ABS plastic shell, pluggable terminal, built-in mounting，compact structure with easy installation.
