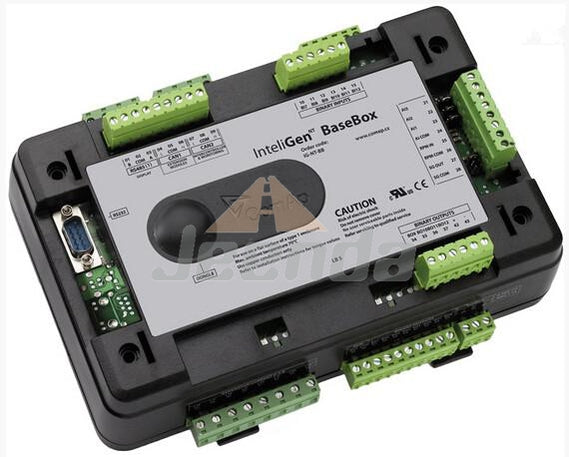

Original Controller InteliGen NT BaseBox IG-NT-BB Control Panel for ComAp Gen-set
Original Controller InteliGen NT BaseBox IG-NT-BB Control Panel for ComAp Gen-set
通常価格
$1,499.00 USD
通常価格
セール価格
$1,499.00 USD
配送料はチェックアウト時に計算されます。
- Comprehensive gen-set controller for both single and multiple gen-sets operating in standby or paralleling modes
- To be used in conjunction with detachable color displaysInteliVision 5 or Intellivision 8
- Support of engines with ECU (Electronic Control Unit)
- Complete integrated gen-set solution and signal sharing via CAN bus minimum external components needed
- Many communication options easy remote supervising and servicing
- Gen-set performance log for easy problem tracing
- Automatic synchronizing and power control (via speed governor or ECU)
- AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (Automatic Voltage Regulation AVR)
- Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
- Mains measurement: U, I, Hz, kW, kVAr, PF
- Inputs and outputs configurable for various customer needs
- Bipolar binary outputs - possibility to use BO as High or Low side switch
- RS232 interface with Modbus support; Analog / GSM / ISDN / CDMA modem support; SMS messages; ECU Modbus interface
- Controller redundancy
- Event-based history (up to 1000 records) with a customer-selectable list of stored values; RTC; statistic values
- Integrated PLC programmable functions
- Integrated fixed and configurable protections
- DIN-Rail mount
- Customized firmware solution
