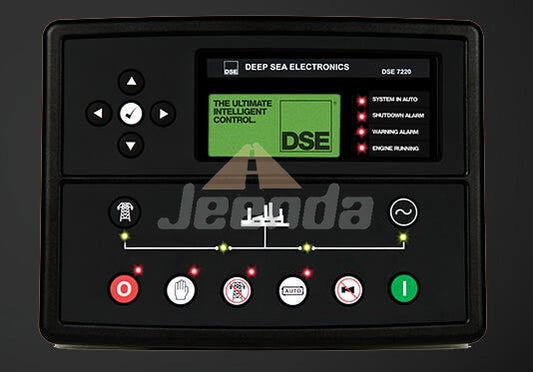

Free Shipping Deep Sea DSE7220 Auto Mains (Utility) Failure Control Module
Product features
- The 7220 Generator Controller is an Auto Start Control Module and the 7220 Genset Controller is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.
- Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs. 7220 Generator Controller will also monitor the mains (utility) supply.
- Both modules are compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs, and engine protections so the system can be easily adapted to suit a wide range of application demands.
Product description
Operating Voltage: DC 8.0V to 35.0V,Continuous
Power Supply: Power Consumption<3W(standby:¡Ü2W)
Alternator Input Range: 15V - 360 V AC (ph-N)
3-Phase4-Wire: 26V - 620 V AC (ph-ph)
3-Phase3-Wire: 15V - 360 V AC (ph-N)
Single-phase2-wire: 15V - 360 V AC (ph-N)
Alternator Frequency: 50/60Hz
Speed Sensor voltage: VPP2.2 - 100Vpp (Peak to peak)
Speed Sensor Frequency: 10000Hz (max)
Start Relay Output: 16Amp Controller Power Voltage Output
Fuel Relay Output: 16Amp Controller Power Voltage Output
Programmable Relay Output: 17Amp 250VAC Voltage Free Output
Programmable Relay Output: 27Amp 250VAC Voltage Free Output
Programmable Relay Output: 316Amp 250VAC Voltage Free Output
Programmable Relay Output: 416Amp 250VAC Voltage Free Output
Case Dimension: 210mm x 152 mm x 48 mm
Panel Cutout: 186mm x 141mm
C.T. Secondary: 5A Rated
Working ConditionsTemperature: (-25~+70)¡æ Humidity:(20~90)%
Storage ConditionTemperature: (-40~+85)¡æ
Protection LevelIP55: When a waterproof rubber seal installed between the? controller and panel fascia.
IP42: When a waterproof rubber seal is not installed between the controller and the panel fascia.
Insulating IntensityObject: input/output/power
Quote standard: IEC688-1992
Test way: AC1.5kV/1min leakage current:3mA
Weight1.0kg
