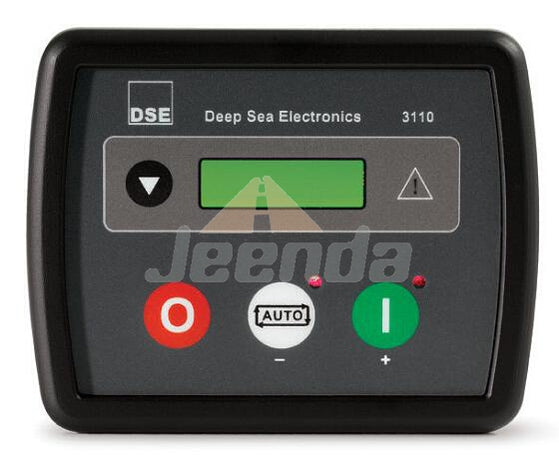

The DSE3110 is an outstanding compact control module that provides a comprehensive range of features for single-set applications. The controller can be used in manual or auto start mode.
OVERALL SIZE
98 mm x 79 mm x 40 mm (3.9¡± x 3.1¡± x 1.6¡±)
PANEL CUTOUT SIZE
80 mm x 68 mm (3.1 " x 2.7")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3¡±)
WEIGHT
0.16kg
KEY Features and Benefits
- Standard engine and electronic CANbus variants.
- Instant integration with both standard and modern electronically controlled engines.
- Configurable inputs/outputs (6 digital inputs/4 outputs ¨C 2 outputs configurable on magnetic pick-up variant).
- It provides multiple installation options.
- Remote start input.
- It provides a simple connection to operate the generator from a remote location.
- Comprehensive display parameters.
- Provides instant notification of generator voltage, generator frequency, battery voltage, engine speed and run hours via one-button navigation.
- Engine pre-heat.
- Warms the engine to a safe temperature at start-up to increase engine life.
- Configurable timers & alarms.
- It provides excellent system flexibility.
- Large back-lit icon LCD display.
- Displays information to the operator in a clear and concise format.
- DSE Configuration Suite PC Software.
- Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.
SPECIFICATION
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
CHARGE FAIL/ EXCITATION
8 V to 35 V fixed power source 2.5 W
NOMINAL STANDBY CURRENT
23 mA at 12 V, 18 mA at 24 V
MAXIMUM OPERATING CURRENT
35 mA at 12 V, 30 mA at 24 V
OUTPUTS
OUTPUT A (FUEL)
2 A DC at a supply voltage
OUTPUT B (START)
2 A DC at a supply voltage
AUXILIARY OUTPUTS C & D
2 A DC at supply voltage
GENERATOR
VOLTAGE RANGE
15 V - 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAGNETIC PICK-UP
VOLTAGE RANGE
+/- 0.5 V to 70 V
FREQUENCY RANGE
10,000 Hz (max)
