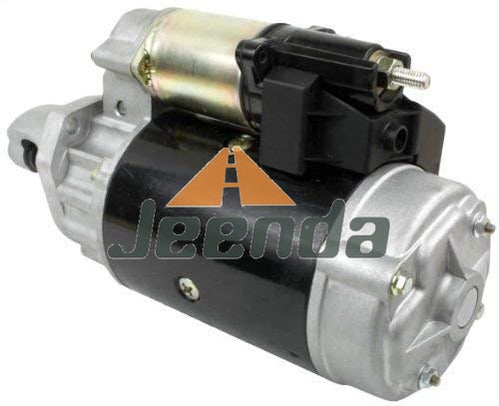

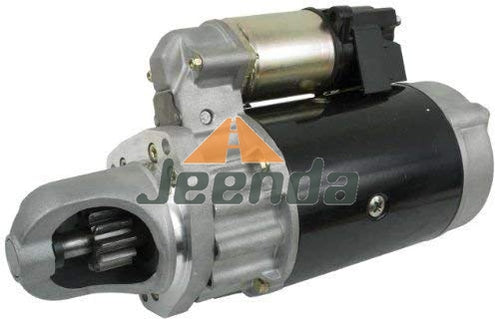

New Starter Motor AR41627 028000-3290 for John Deere 4030 1085 5440 444C
by John Deere
$345.00
SKU HW0280003290
New Starter Motor 028000-3290 12V for John Deere
Part Numbers:
- Replaces John Deere OEM numbers AR41627, AR55639, AR77254, RE13722, TY6617, TY6713, RE41875, SE501414, TY25960.
- Replaces Denso Mfg numbers 128000-0772, 028000-3291, 028000-3292, 128000-0770, 128000-0771, 028000-3290, 9702800-329, 9712809-077.
- Replaces Mfg numbers 16635, 190-850, 50-831001671, 50-831001672, 91-29-5018.
- OEM(s) replaced: Denso, John Deere
- Family: Denso F
- Voltage: 12
- Power: 4kW / 5.36HP
- Condition: New
- Rotation: CW
- Starter Type: DD
- Number of Teeth: 10
- Gear OD: 1.567in / 39.8mm
- Mtg Ear 1 Hole: 10.0mm Unthreaded
- Mtg Ear 2 Hole: 10.0mm Unthreaded
- Mtg Ear 3 Hole: 10.0mm Unthreaded
- Notes: Flange to Back OAL 311mm
- Registry OD. 89mm Bolt Hole Center to Center 90mm
- Weight: 46.5 lbs / 21.14 kg
Applications:
- John Deere Tractor(s) 4030, 4040, 4050, 4240, 4250, 4320, 4350, 4430, 4440, 4450, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5200, 5420, 5720, 6030, 6600, 6620, 7020, 7700, 8430, 8440, 8450.
- John Deere Combine(s) 1085, 6602, 6622, 7720, 7722, 8820, 9500
- John Deere Harvester(s) 5440, 5720, 5730, 5830, 9940, 9950.
- John Deere Construction & Industrial(s) 444, 444C, 444D, 500C, 510, 544, 544A, 544B, 544D, 544E, 544G, 570, 570A, 624E, 624G, 643, 643D, 644C, 644D, 644E, 644G, 690, 690A, 690B, 693B, 740, 740A, 743, 743A.
- John Deere Engine(s) 6059, 6068, 6076, 6466A, 6466D, 6466T
