1'' 1/2 BSP Hydraulic Orbital Motor OMP80 - 151-0301 151-0601 OMP X 80 - 11185808


Price:
$229
 別のお支払い方法

Description

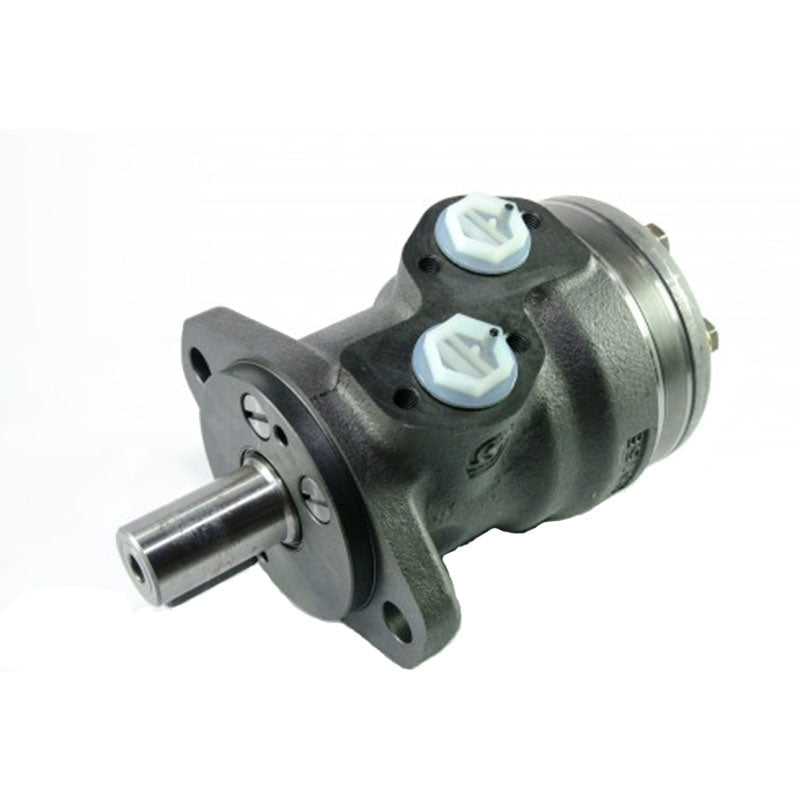

Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMP80 - 151-0601, OMP80 - 151-0301, OMP X 80 - 11185808
Specification:
Type: OMP
Motor Size: 80
Geometric displacement: 77.8cm³/[4.76in]
Max speed cont: 770 rpm
Max speed int: 960 rpm
Max torque cont: 150Nm/[1330lbf in]
Max torque int: 190Nm/[1680lbf in]
Max output power cont: 10.0kW/[13.4hp]
Max output power int: 12.0kW/[16.1hp]
Max pressure drop cont: 140bar/[2030psi]
Max pressure drop int: 175bar[2540psi]
Max pressure drop peak: 225bar/[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 10bar/[145psi]
Min starting torque at max press drop cont: 135Nm/[12000lbf in]
Min starting torque at max press drop int: 170Nm/[1510lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
