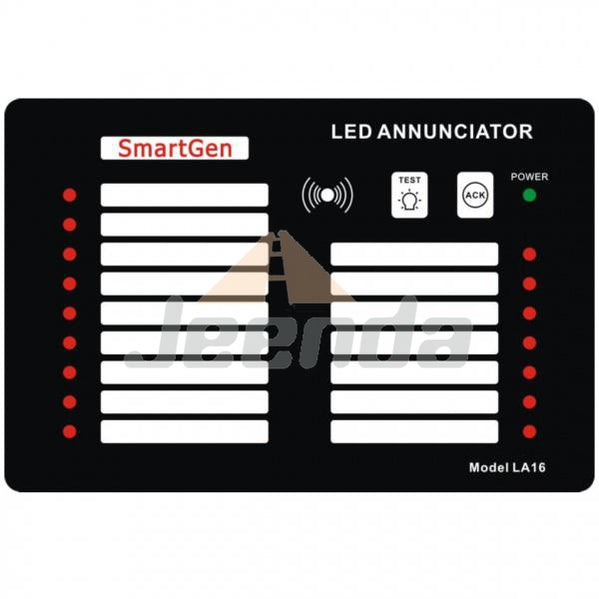

SmartGen LA16 Marine Engine Controller with 16 Programmble Lamps CCS

SmartGen LA16 Marine Engine Controller

The LED lamp expansion module is a LED display module which has 16 programmable lamp and there are 3 kinds of color (red, green, yellow) can be chosen. The data collected by LA16 are transmitted to the HMC9000 controller for processing via CANBUS port.

TECHNICAL PARAMETERS

• Working Voltage：DC18.0V~35.0V continuous power supply
• Power Consumption：<5W
• Case Dimension：240mm x 172mm x 57mm
• Cutout：214mm x 160mm
• Working Conditions：Temp.：(-25~+70)°C　　Humidity：(20~93)%RH
• Storage Conditions：Temp.：(-25~+70)°C
• Weight：0.60kg
