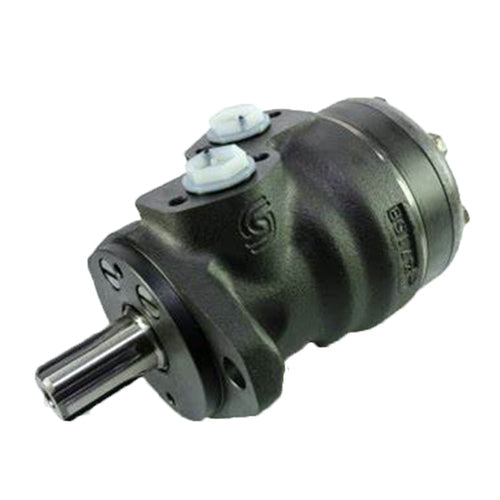

1'' 1/2 BSP Hydraulic Orbital Motor OMR200 - 151-0725
1'' 1/2 BSP Hydraulic Orbital Motor OMR200 - 151-0725
Regular price
$274.00 USD
Regular price
Sale price
$274.00 USD
Shipping calculated at checkout.
Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMR200 - 151-0725, 1510725
Manufacturing Part Number: OMR200 - 151-0725, 1510725
Specification:
Type: OMR
Size: 200
Geometric displacement: 199.8cm³/[12.23in]
Max speed cont: 300rpm
Max speed int: 375rpm
Max torque cont: 450Nm/[3980lbf in]
Max torque int: 500Nm/[4430lbf in]
Max output power cont: 11.0kW/[14.8hp]
Max output power int: 13.0kW/[17.4hp]
Max pressure drop cont: 175bar/[2540psi]
Max pressure drop int: 200bar/[2900psi]
Max pressure drop peak: 225bar[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 5bar/[75psi]
Min starting torque at max press drop cont: 410Nm/[3630lbf in]
Min starting torque at max press drop int: 460Nm/[4070lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
Max speed cont: 300rpm
Max speed int: 375rpm
Max torque cont: 450Nm/[3980lbf in]
Max torque int: 500Nm/[4430lbf in]
Max output power cont: 11.0kW/[14.8hp]
Max output power int: 13.0kW/[17.4hp]
Max pressure drop cont: 175bar/[2540psi]
Max pressure drop int: 200bar/[2900psi]
Max pressure drop peak: 225bar[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 5bar/[75psi]
Min starting torque at max press drop cont: 410Nm/[3630lbf in]
Min starting torque at max press drop int: 460Nm/[4070lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
