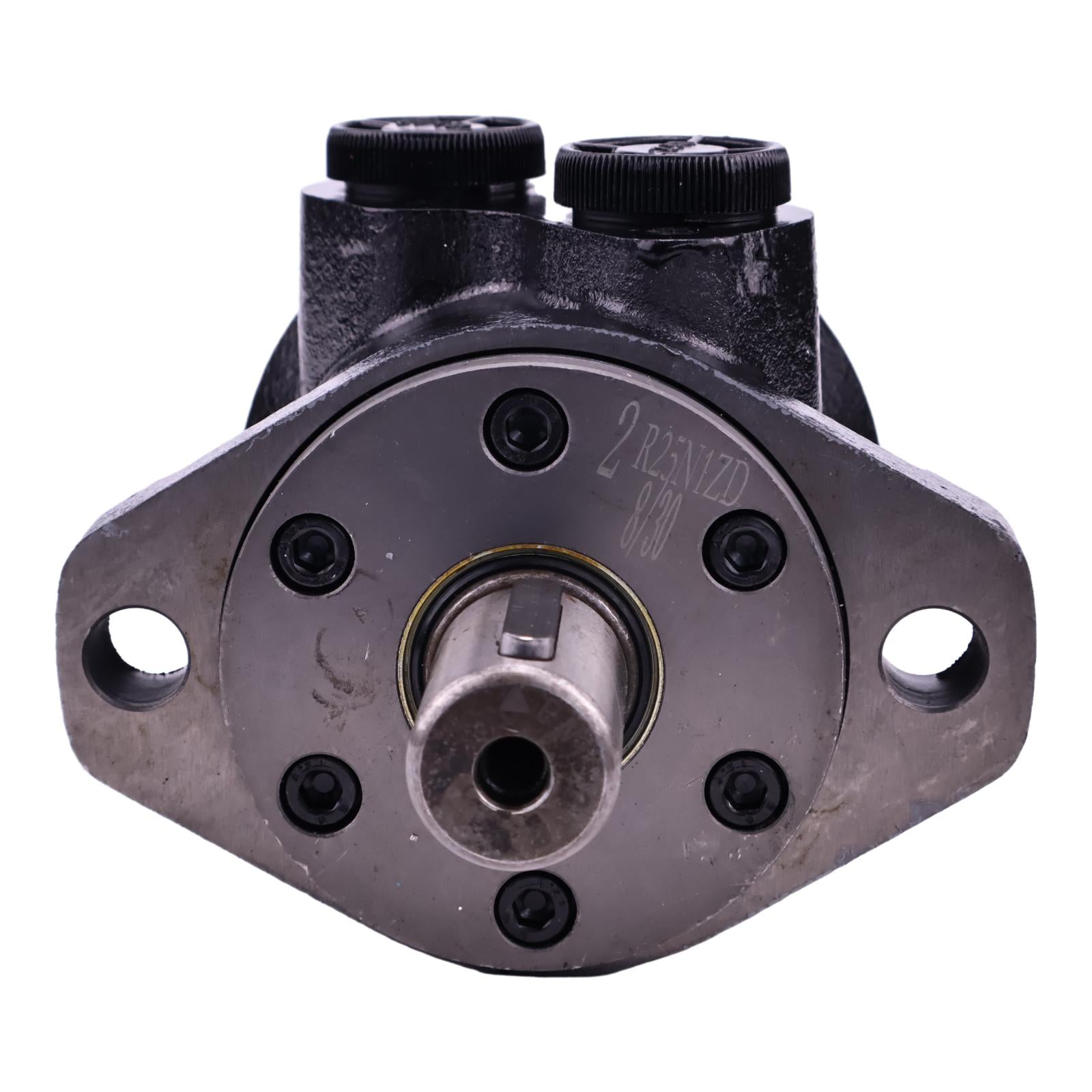

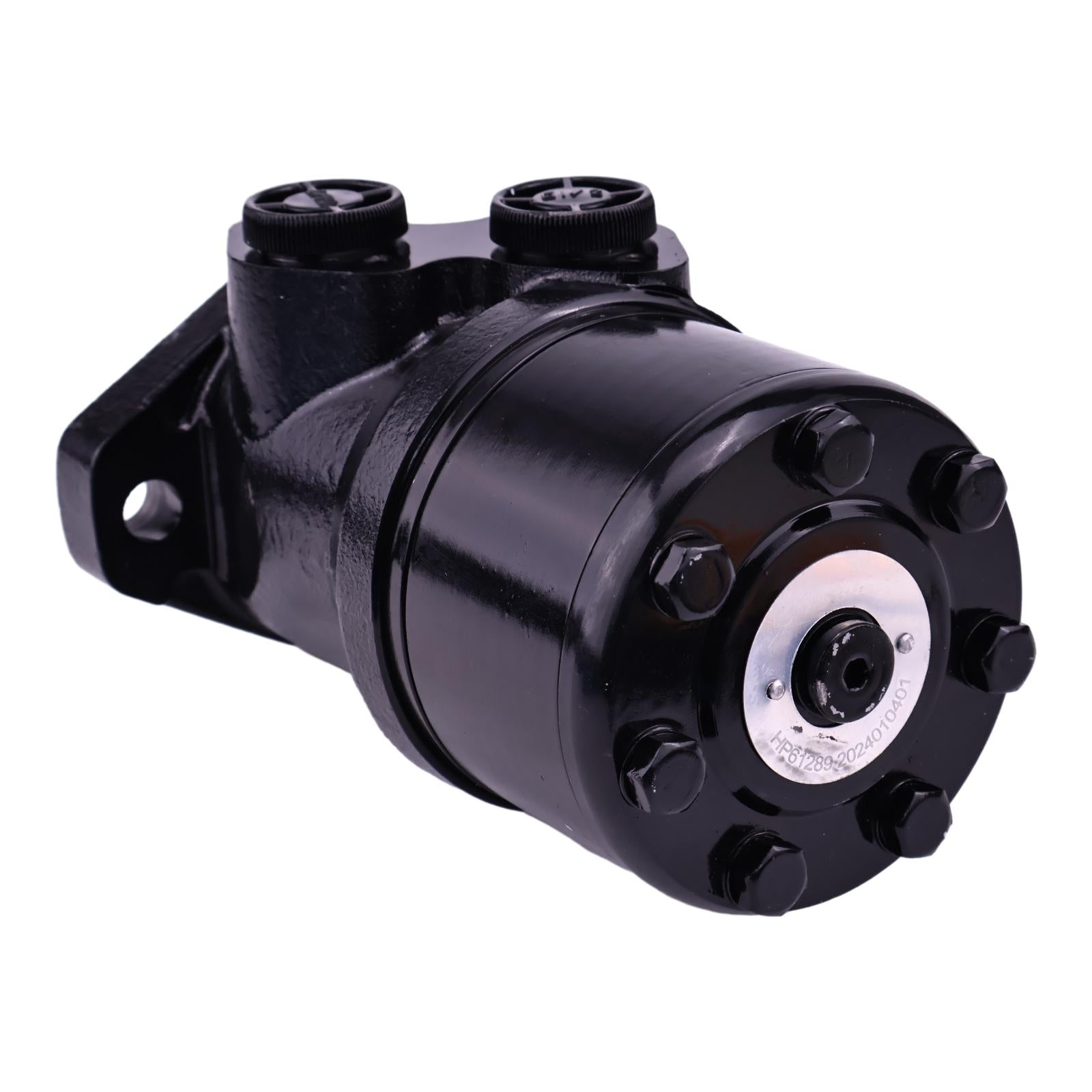

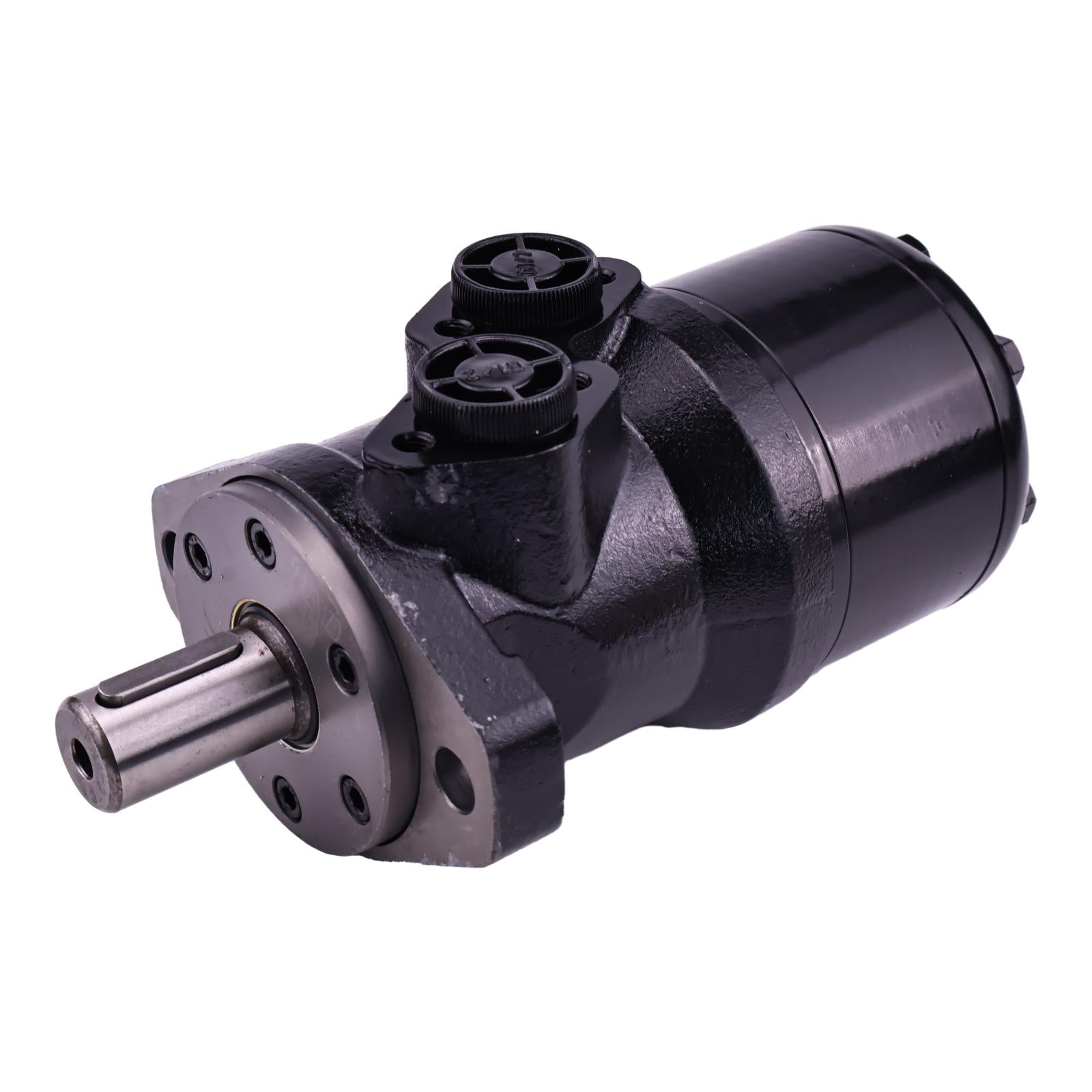

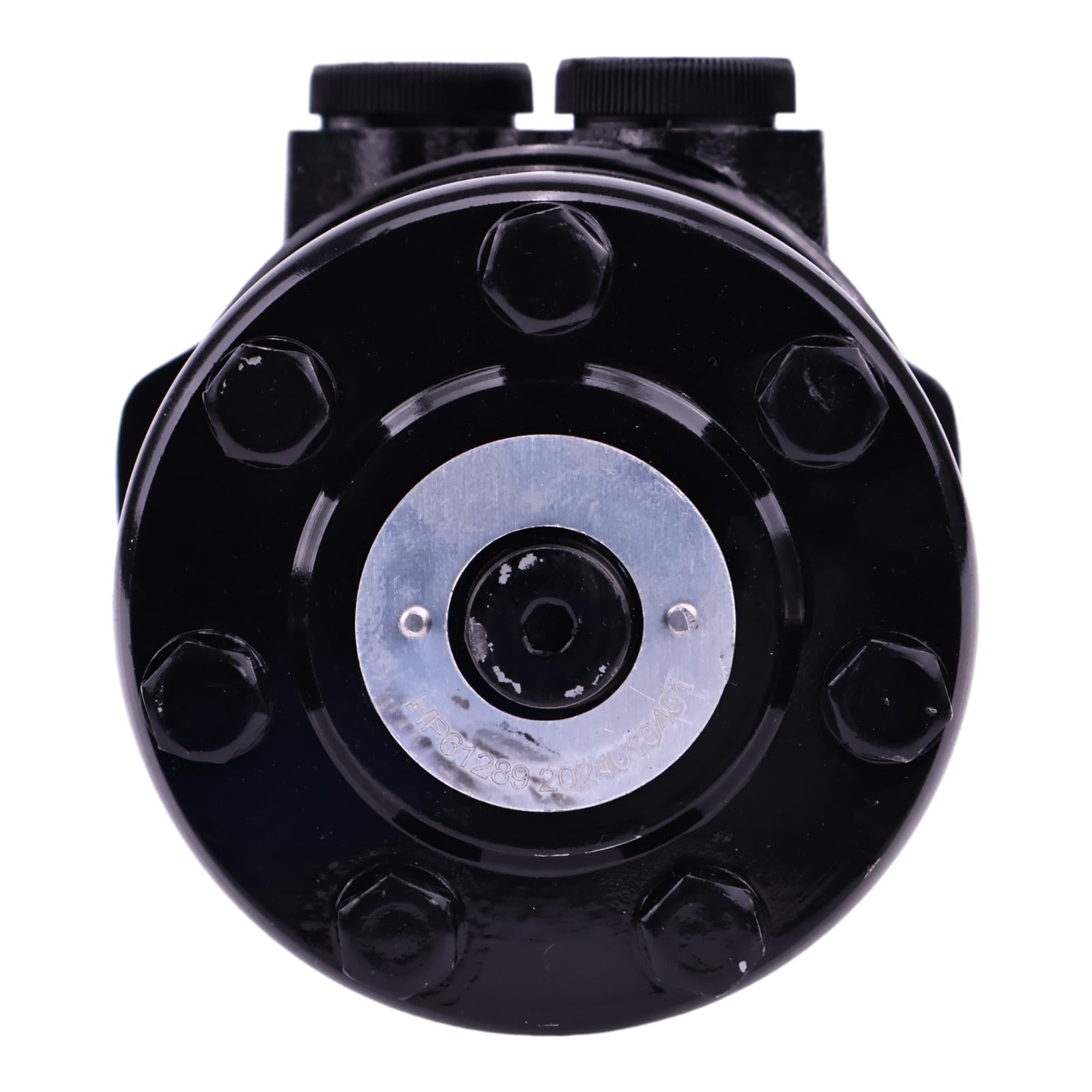

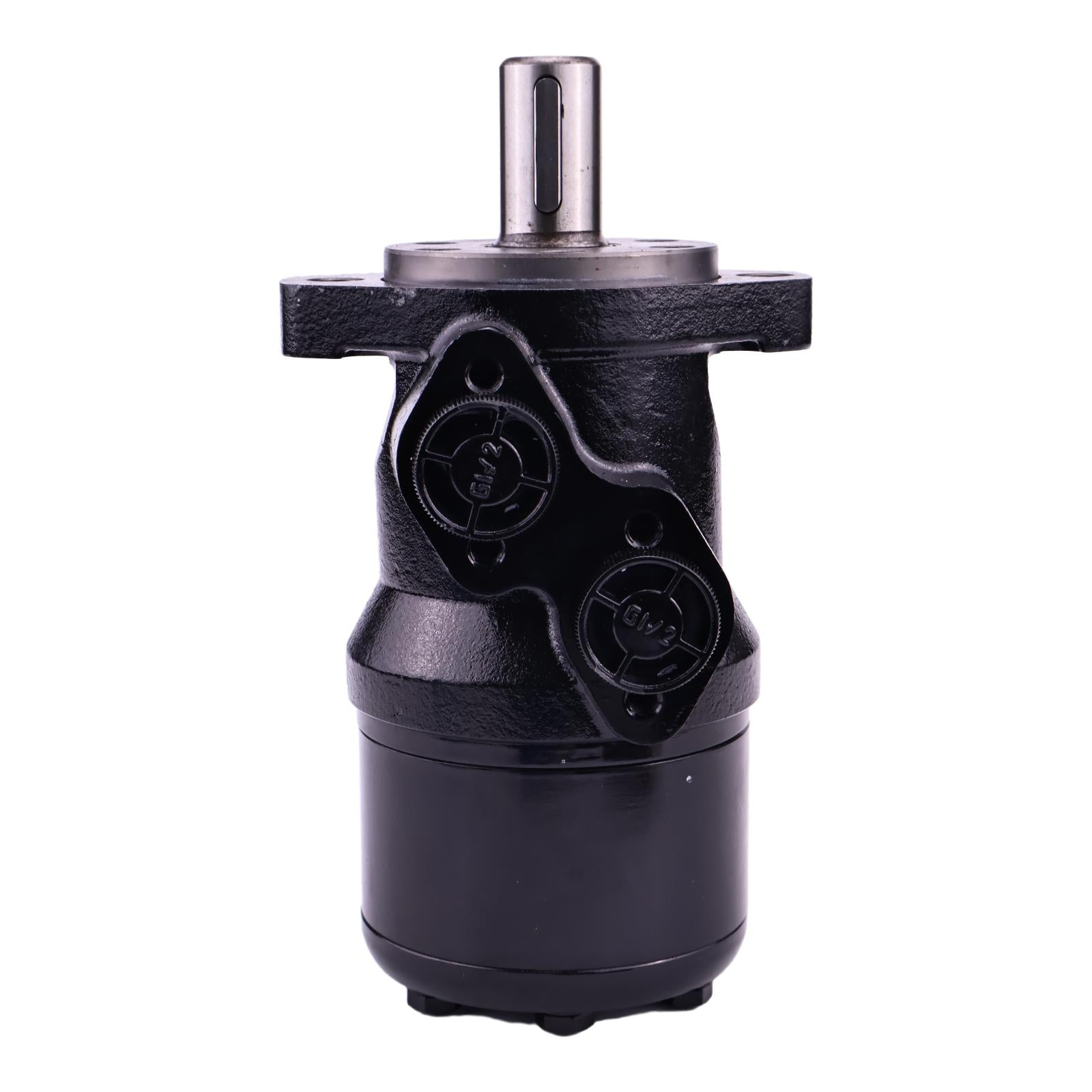

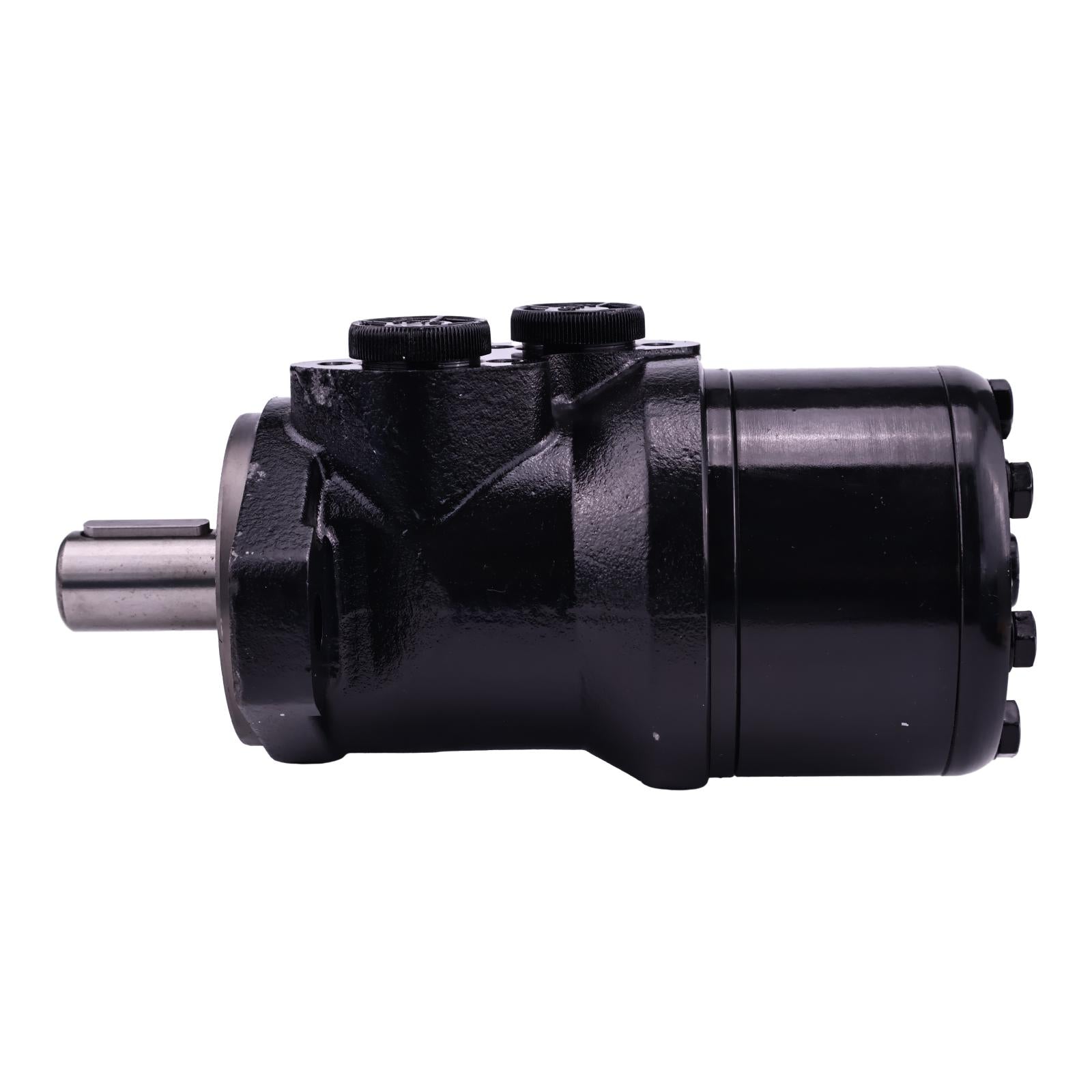

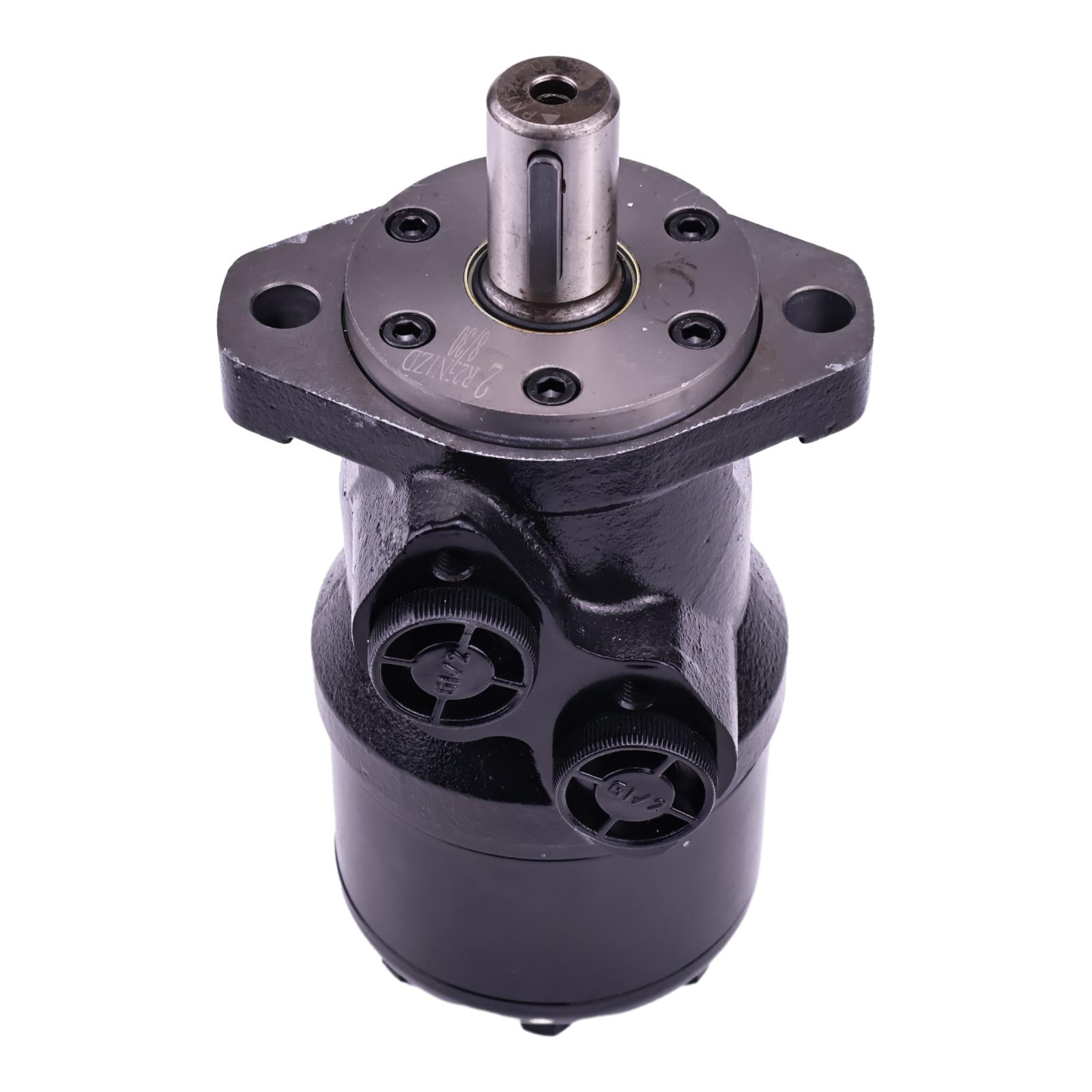

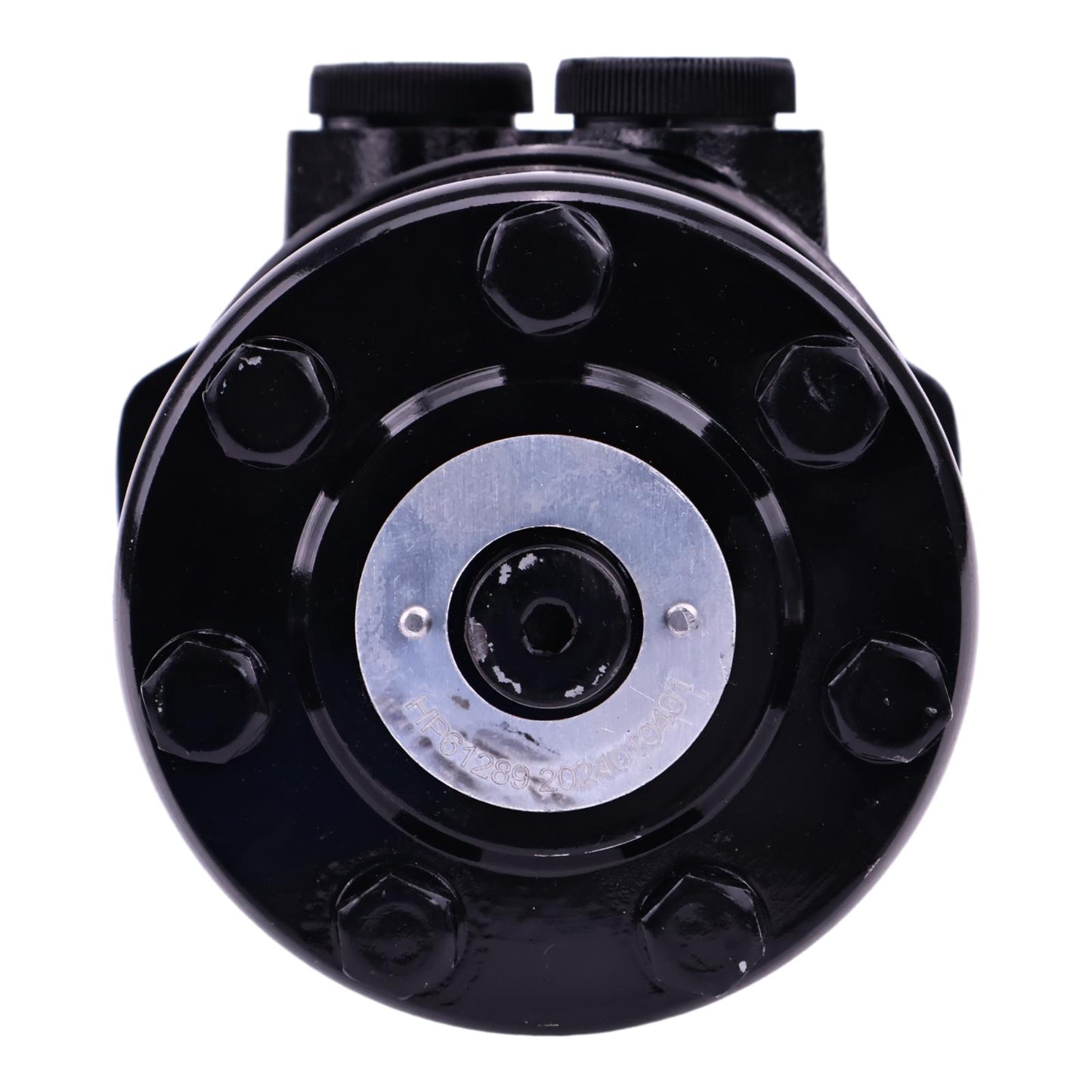

Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMR250 - 151-0706, 1510706
Specification:
Type: OMR
Size: 250
Geometric displacement: 249.3cm³/[15.26in]
Max speed cont: 240rpm
Max speed int: 300rpm
Max torque cont: 300Nm/[2660lbf in]
Max torque int: 380Nm/[3360lbf in]
Max output power cont: 6.0kW/[8.1hp]
Max output power int: 8.0kW/[10.7hp]
Max pressure drop cont: 80bar/[1160psi]
Max pressure drop int: 110bar/[1600psi]
Max pressure drop peak: 200bar[2900psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 5bar/[75psi]
Min starting torque at max press drop cont: 240Nm/[2120lbf in]
Min starting torque at max press drop int: 310Nm/[2740lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
