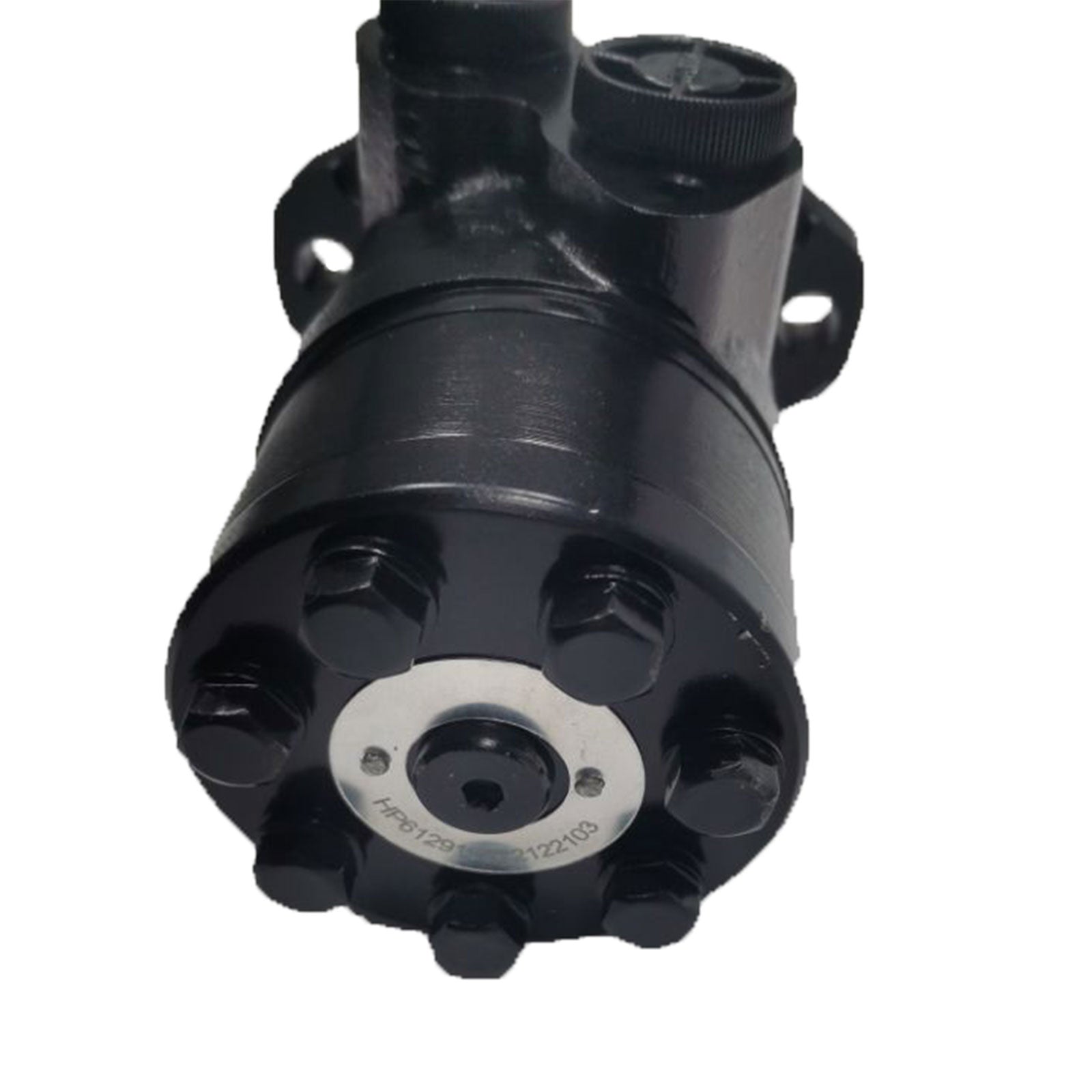

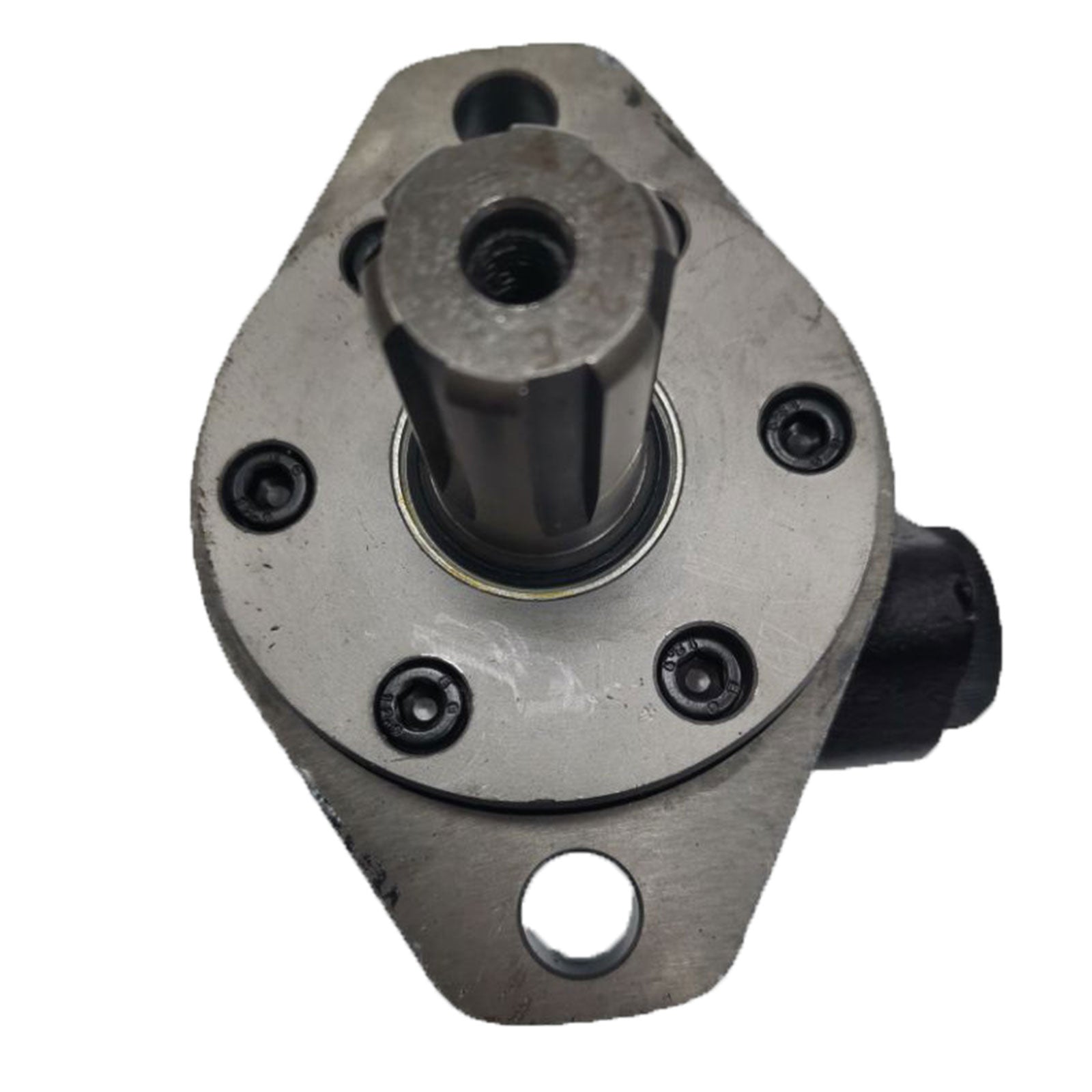

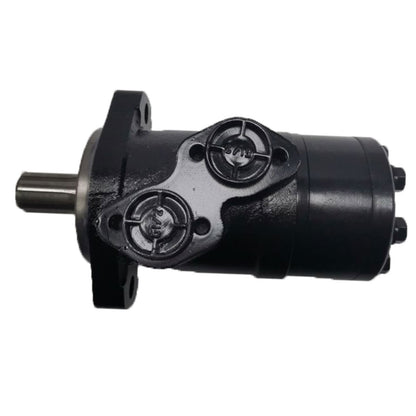

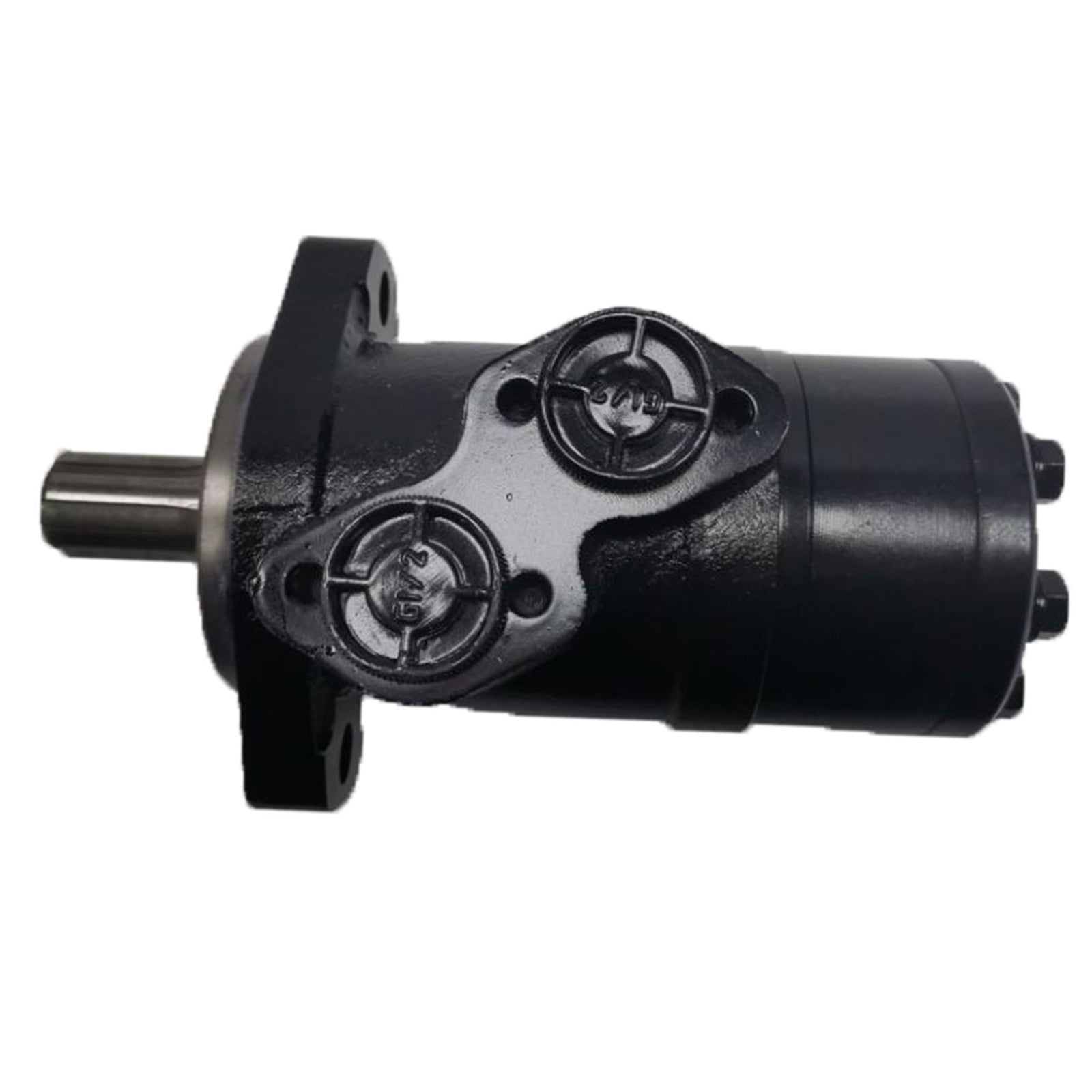

1'' 1/2 BSP Hydraulic Orbital Motor OMR250 - 151-0726 1510726


Price:
$285
 More payment options

Description

Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMR250 - 151-0726, 1510726
Specification:
Type: OMR
Size: 250
Geometric displacement: 249.3cm³/[15.26in]
Max speed cont: 240rpm
Max speed int: 300rpm
Max torque cont: 540Nm/[4780lbf in]
Max torque int: 610Nm/[5400lbf in]
Max output power cont: 10.0kW/[13.4hp]
Max output power int: 12.0kW/[16.1hp]
Max pressure drop cont: 175bar/[2540psi]
Max pressure drop int: 200bar/[2900psi]
Max pressure drop peak: 225bar[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 5bar/[75psi]
Min starting torque at max press drop cont: 500Nm/[4430lbf in]
Min starting torque at max press drop int: 550Nm/[4870lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
