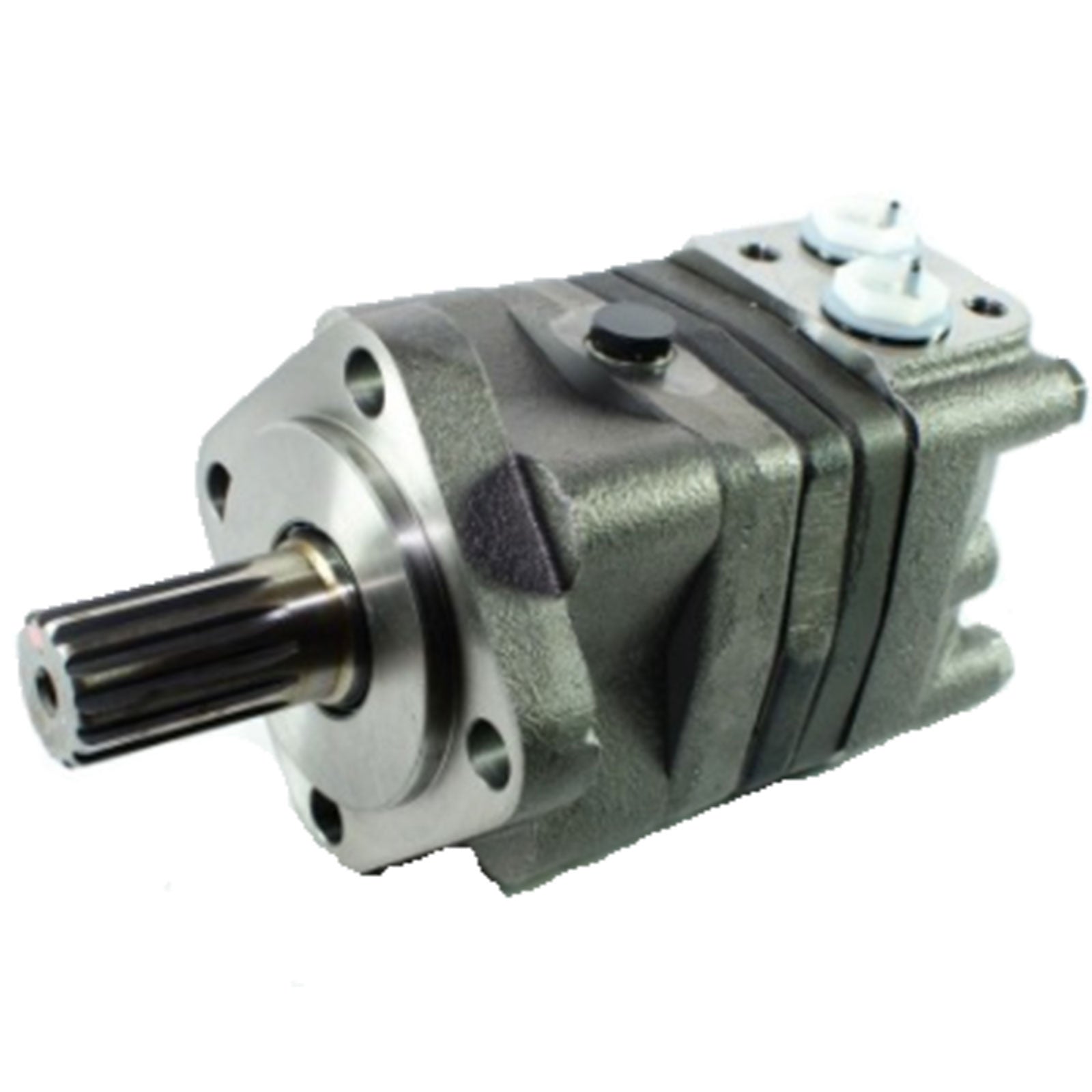

1.25'' 1/2 BSP Hydraulic Orbital Motor OMS200-151F0511 151F0511 OMS200151F0511
1.25'' 1/2 BSP Hydraulic Orbital Motor OMS200-151F0511 151F0511 OMS200151F0511
Regular price
$429.00 USD
Regular price
Sale price
$429.00 USD
Shipping calculated at checkout.
Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMS200-151F0511, 151F0511, OMS200151F0511
Manufacturing Part Number: OMS200-151F0511, 151F0511, OMS200151F0511
Specification:
Type: OMS
Size: 200
Geometric displacement: 200.0cm³/[12.20in]
Max speed cont: 375 rpm
Max speed int: 450 rpm
Max torque cont: 610Nm/[5400lbf in]
Max torque int: 720Nm/[6370lbf in]
Max output power cont: 16.5kW/[22.1hp]
Max output power int: 22.0kW/[29.5hp]
Max pressure drop cont: 210bar/[3050psi]
Max pressure drop int: 250bar/[3630psi]
Max pressure drop peak: 270bar[3920psi]
Max oil flow cont: 75L/min
Max oil flow int: 90L/min
Max starting pressure with unloaded shaft: 8bar/[115psi]
Min starting torque at max press drop cont: 470Nm/[4160lbf in]
Min starting torque at max press drop int: 560Nm/[4960lbf in]
Max inlet pressure cont: 230bar/[3340psi]
Max inlet pressure int: 295bar/[4280psi]
Max inlet pressure peak: 300bar/[4350psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 210bar/[3050psi]
Max speed cont: 375 rpm
Max speed int: 450 rpm
Max torque cont: 610Nm/[5400lbf in]
Max torque int: 720Nm/[6370lbf in]
Max output power cont: 16.5kW/[22.1hp]
Max output power int: 22.0kW/[29.5hp]
Max pressure drop cont: 210bar/[3050psi]
Max pressure drop int: 250bar/[3630psi]
Max pressure drop peak: 270bar[3920psi]
Max oil flow cont: 75L/min
Max oil flow int: 90L/min
Max starting pressure with unloaded shaft: 8bar/[115psi]
Min starting torque at max press drop cont: 470Nm/[4160lbf in]
Min starting torque at max press drop int: 560Nm/[4960lbf in]
Max inlet pressure cont: 230bar/[3340psi]
Max inlet pressure int: 295bar/[4280psi]
Max inlet pressure peak: 300bar/[4350psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 210bar/[3050psi]
