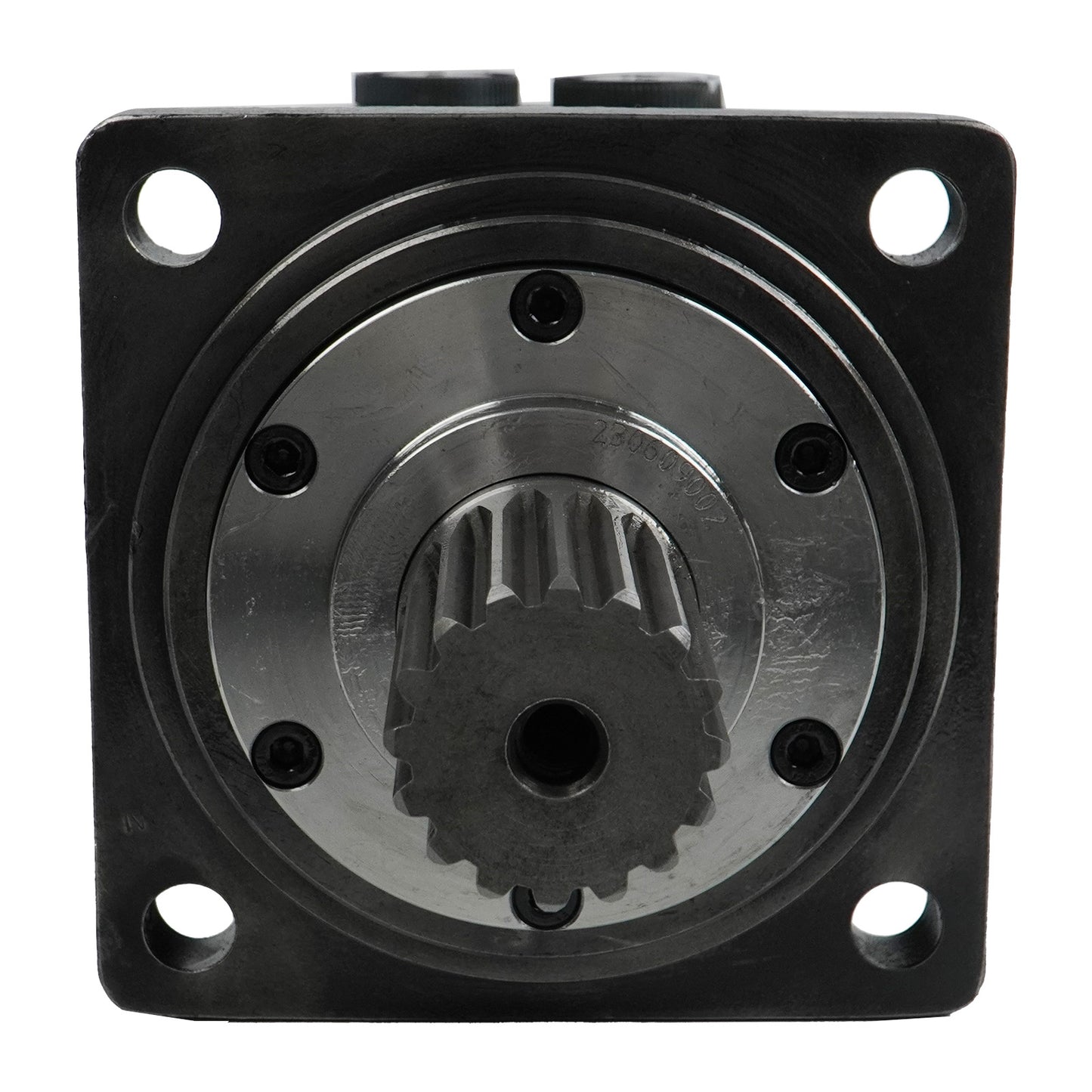

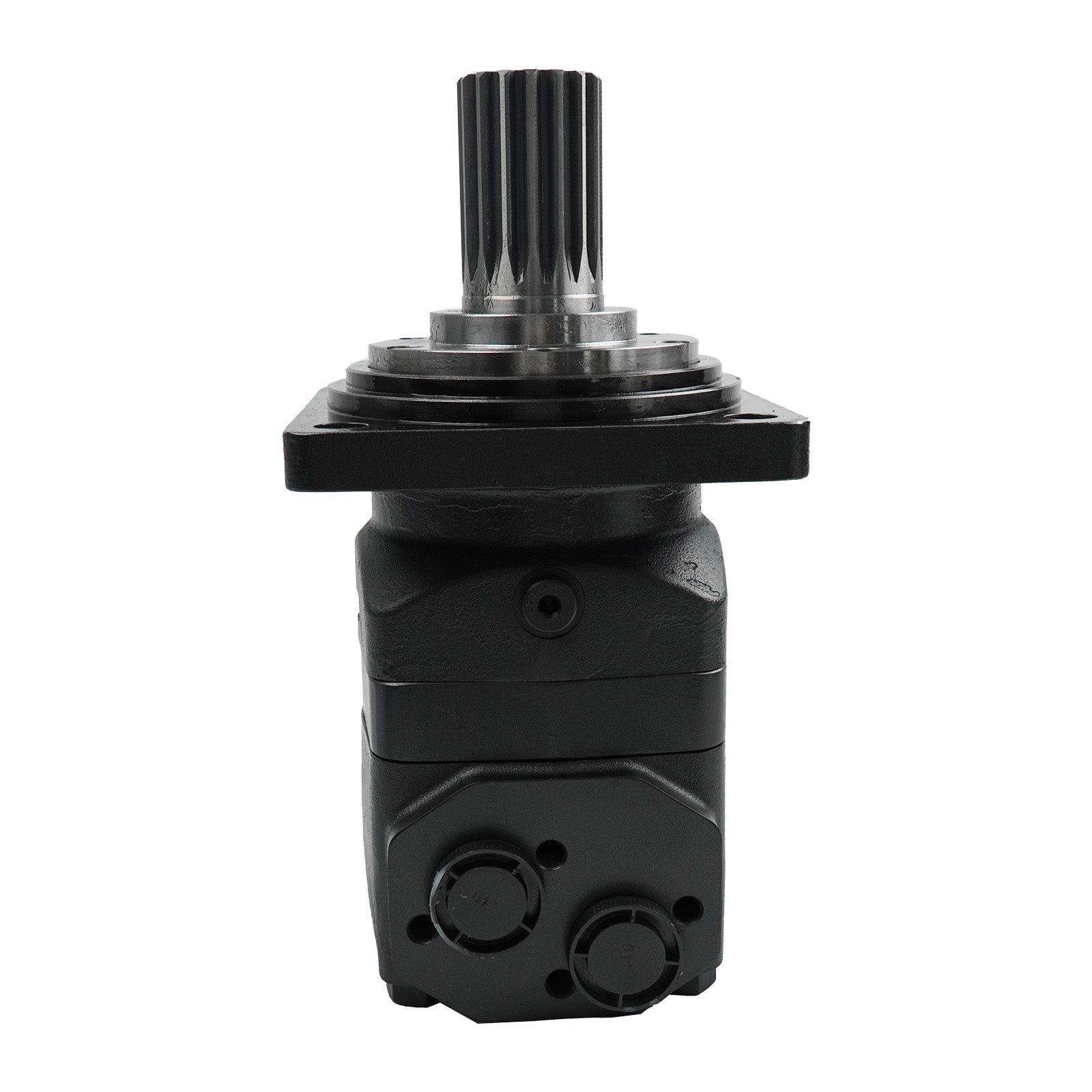

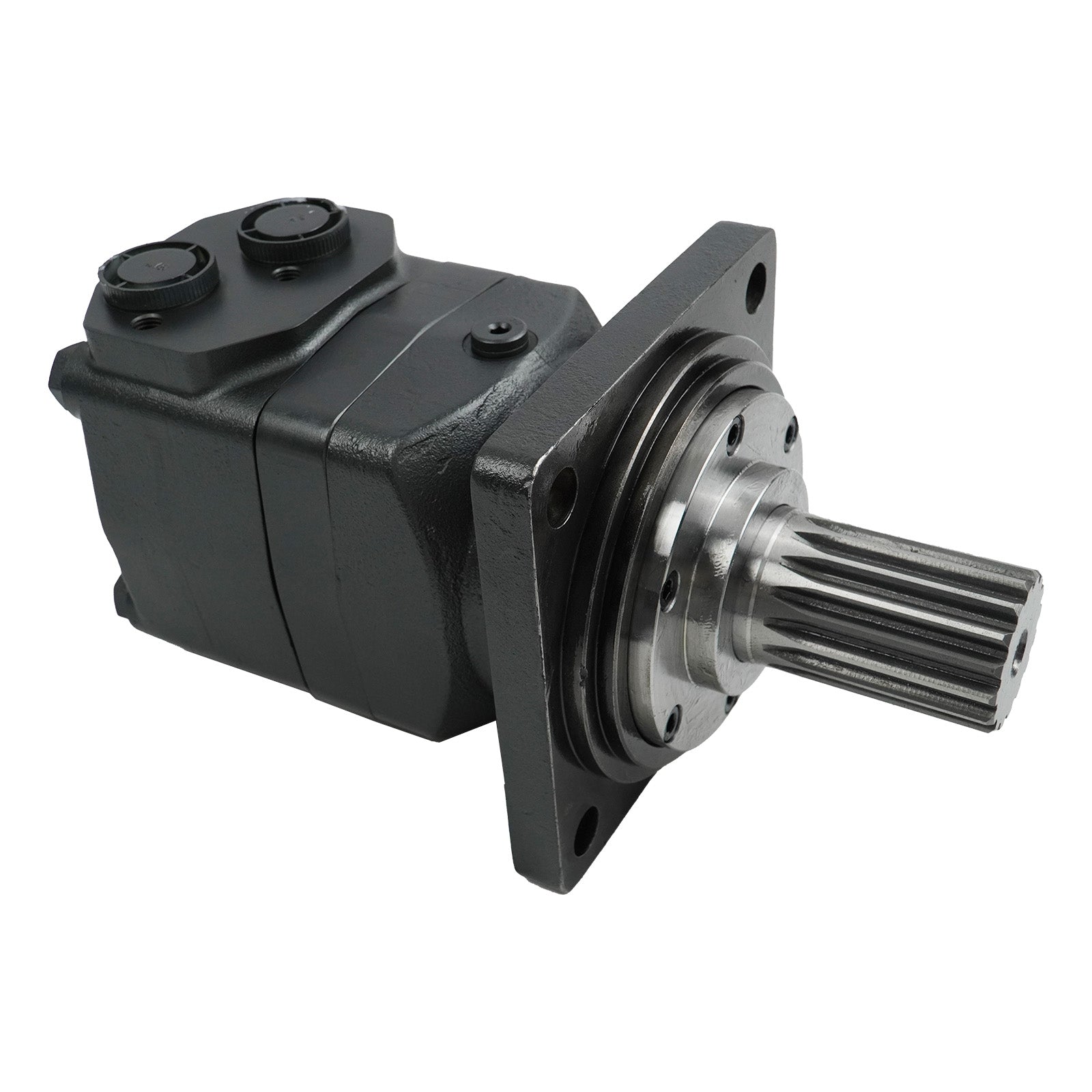

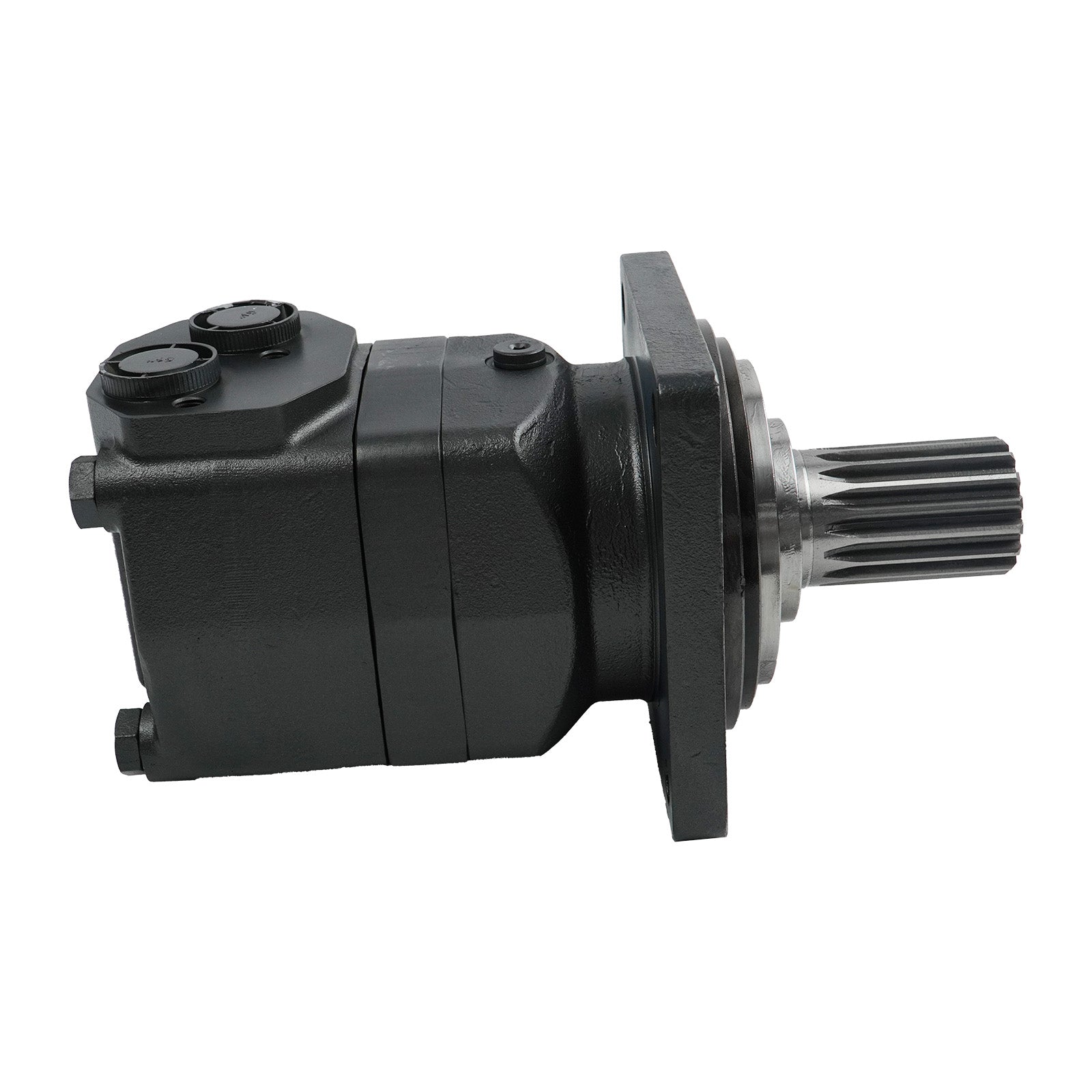

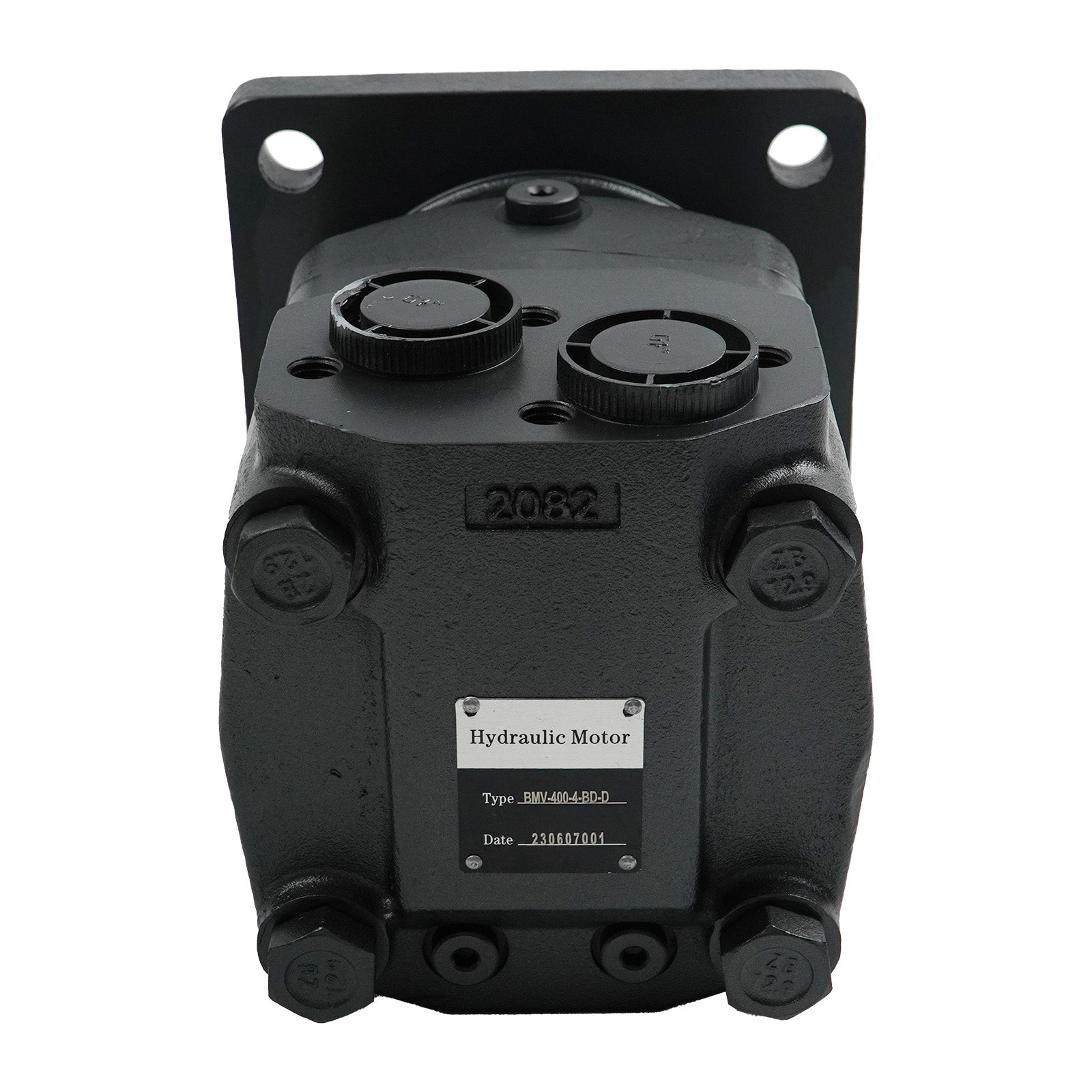

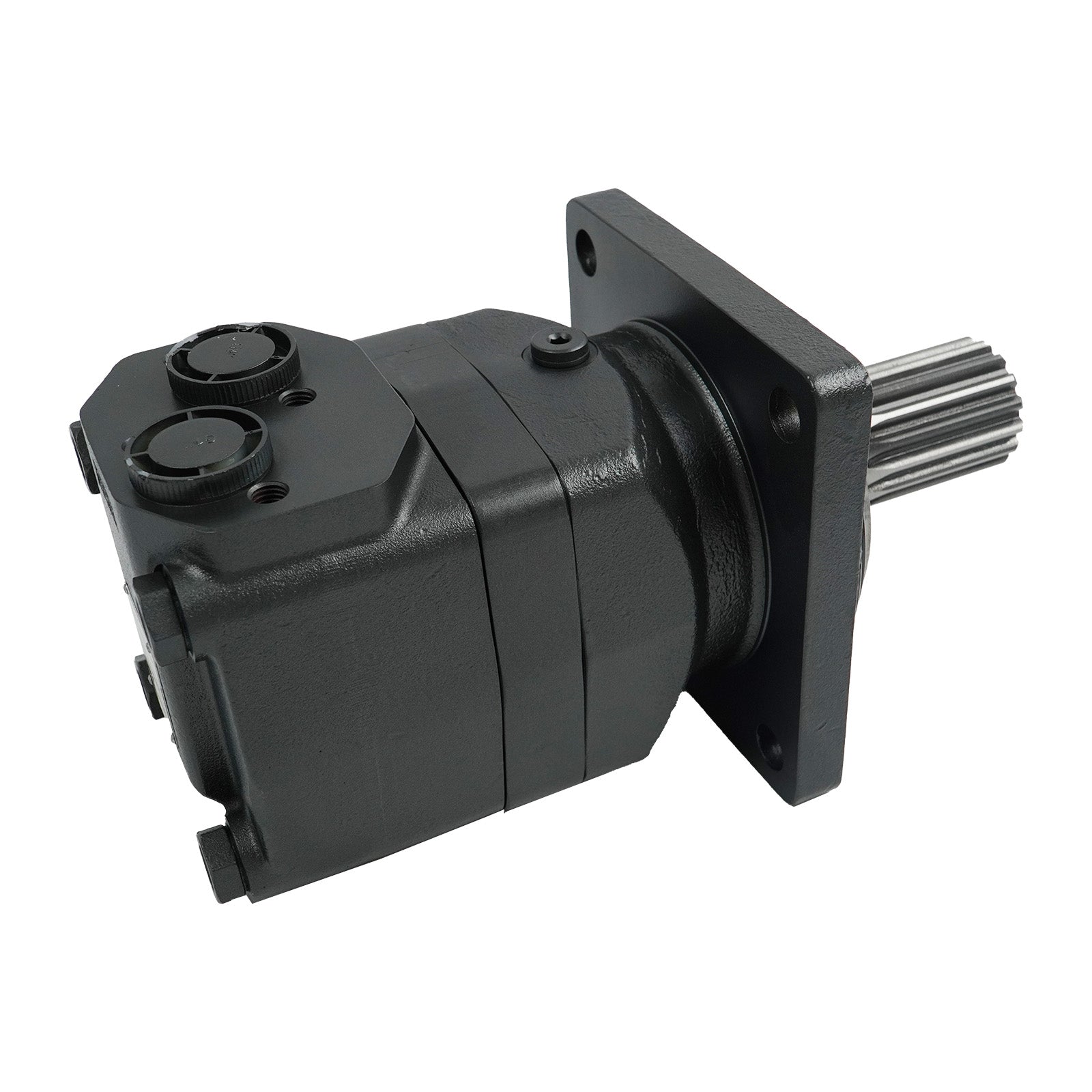

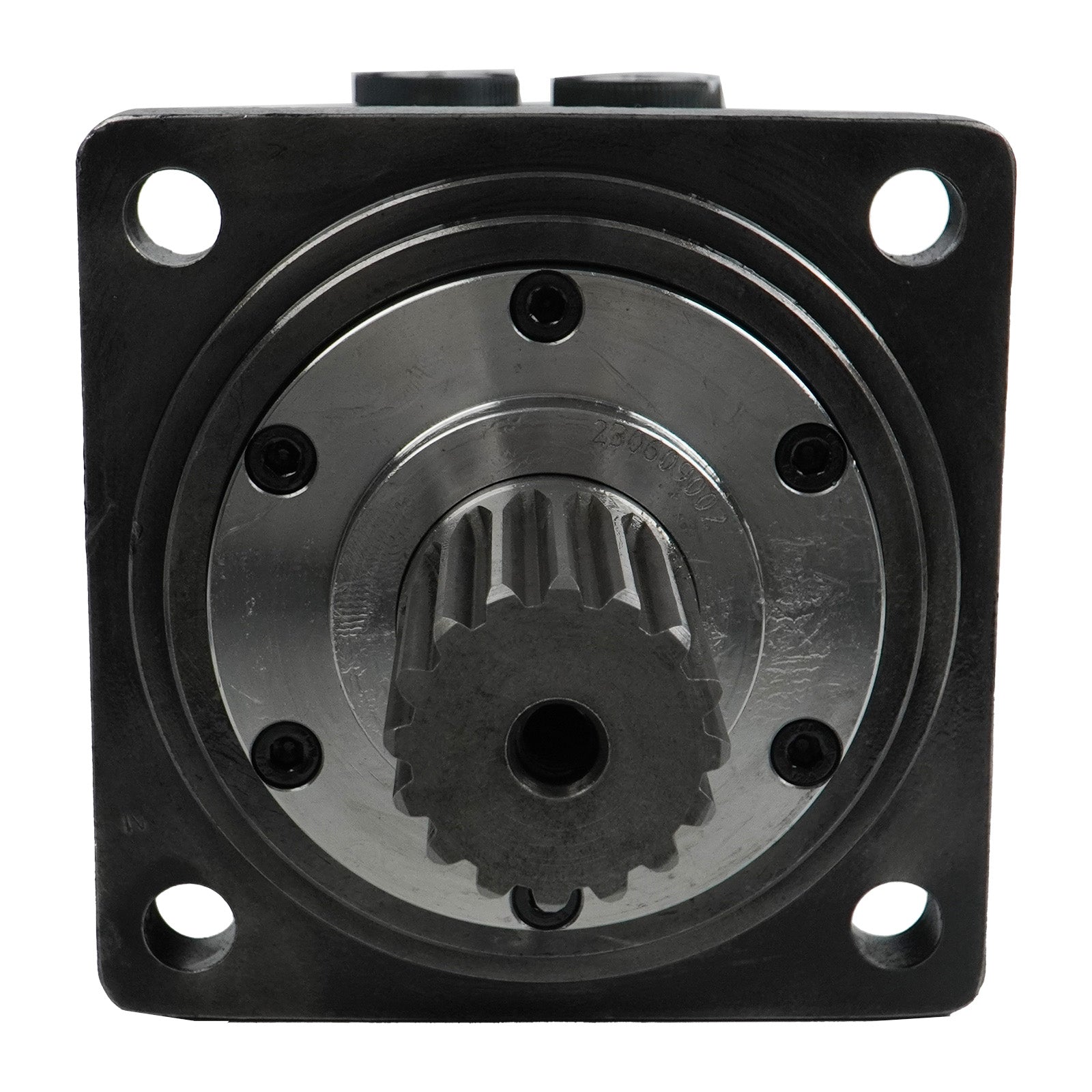

Part Name: Hydraulic Orbital Motor Manufacturing Part Number: OMV400 - 151B3106, 151B3106 Specification:
Type: OMV
Motor Size: 400
Geometric displacement: 400.9cm³/[24.46in] Max speed cont: 500 rpm Max speed int: 600 rpm Max torque cont: 1180Nm/[10440lbf in] Max torque int: 1410Nm/[12480lbf in] Max output power cont: 53.5kW/[71.7hp] Max output power int: 64kW/[85.8hp] Max pressure drop cont: 200bar/[2900psi] Max pressure drop int: 240bar/[3480psi] Max pressure drop peak: 280bar[4060psi] Max oil flow cont: 200L/min Max oil flow int: 240L/min Max starting pressure with unloaded shaft: 8bar/[115psi] Min starting torque at max press drop cont: 910Nm/[8050lbf in] Min starting torque at max press drop int: 1090Nm/[9650lbf in] Max inlet pressure cont: 210bar/[3050psi] Max inlet pressure int: 250bar/[3630psi] Max inlet pressure peak: 300bar/[4350psi] Max return pressure with drain line cont: 140bar/[2030psi] Max return pressure with drain line int: 175bar/[2540psi] Max return pressure with drain line peak: 210bar/[3050psi]
