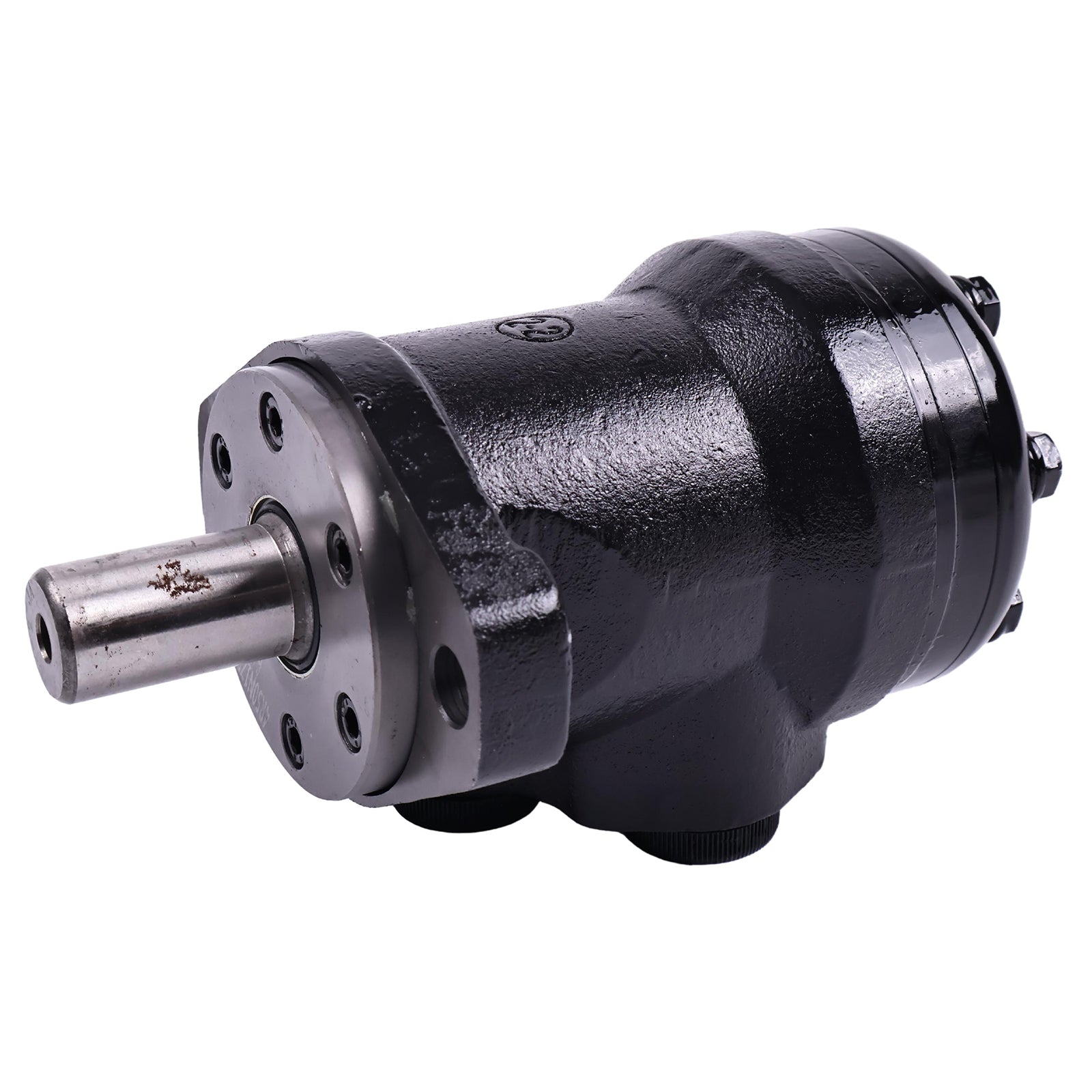

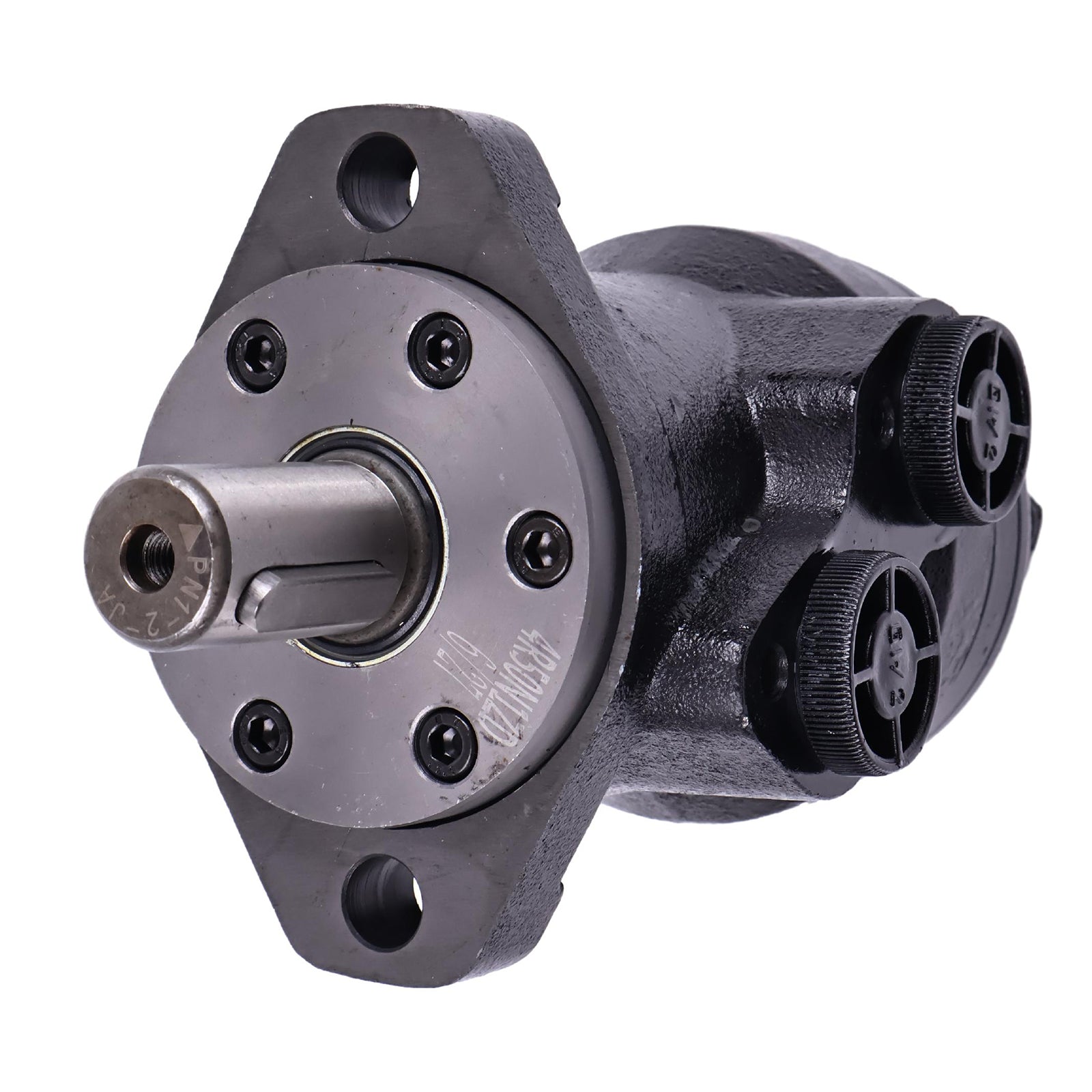

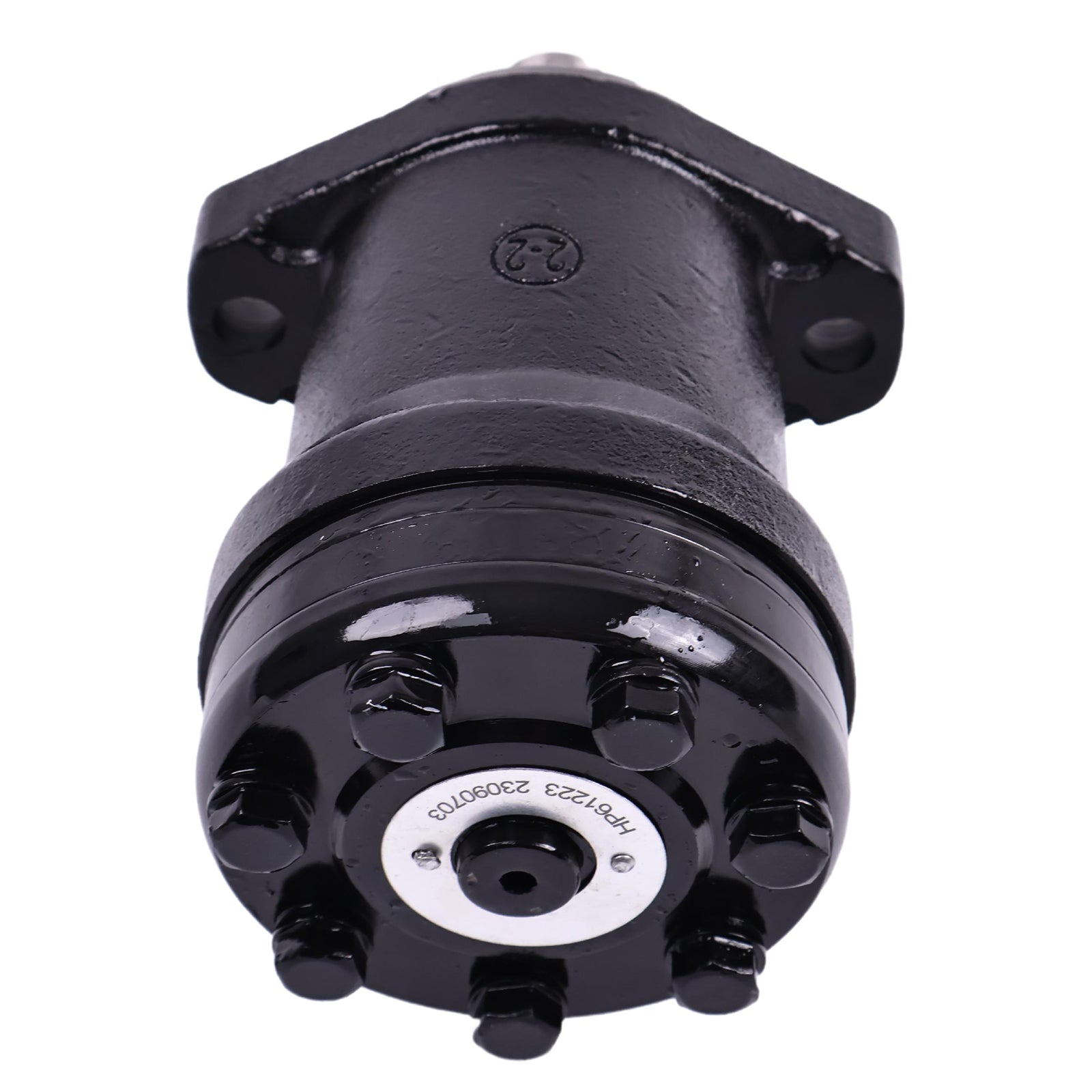

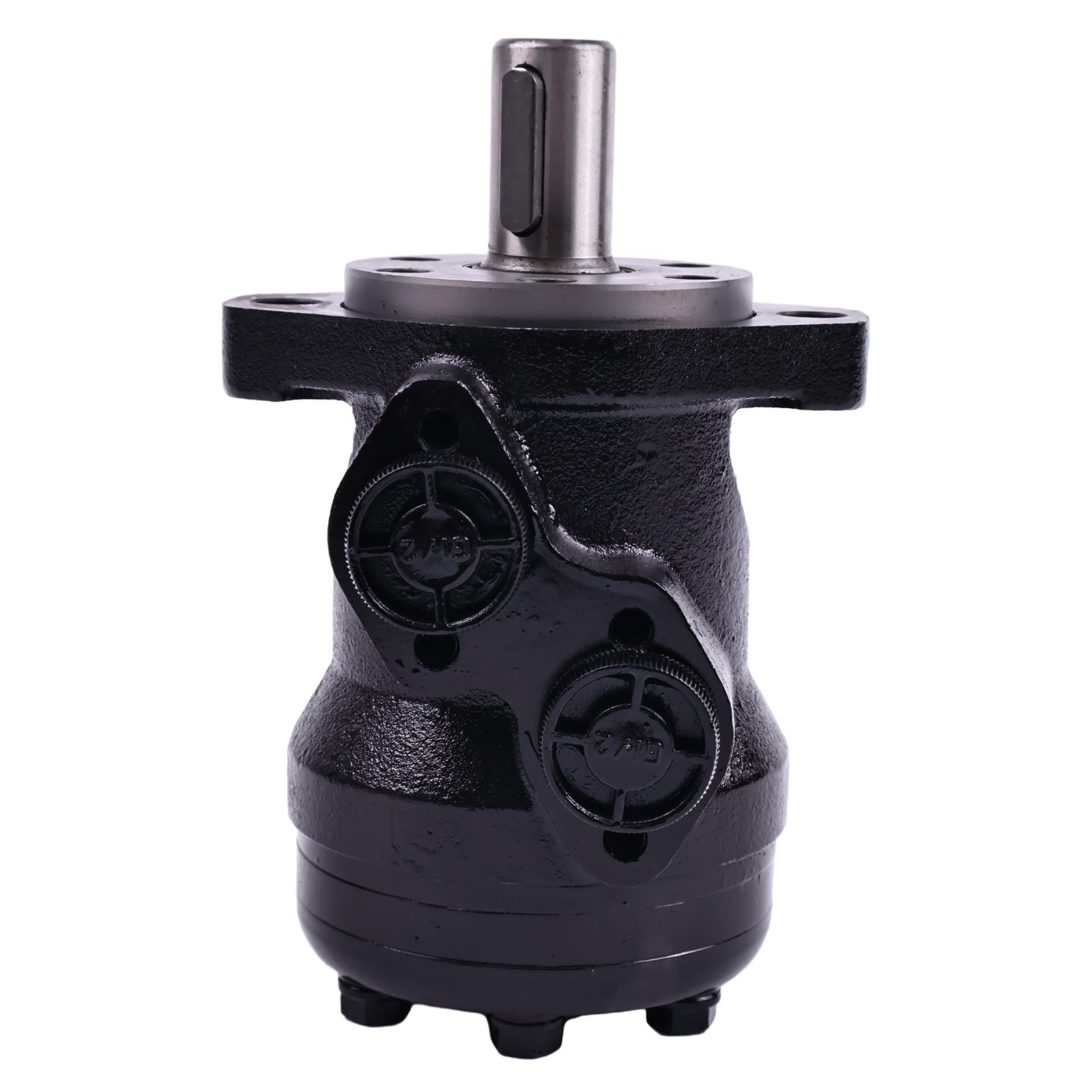

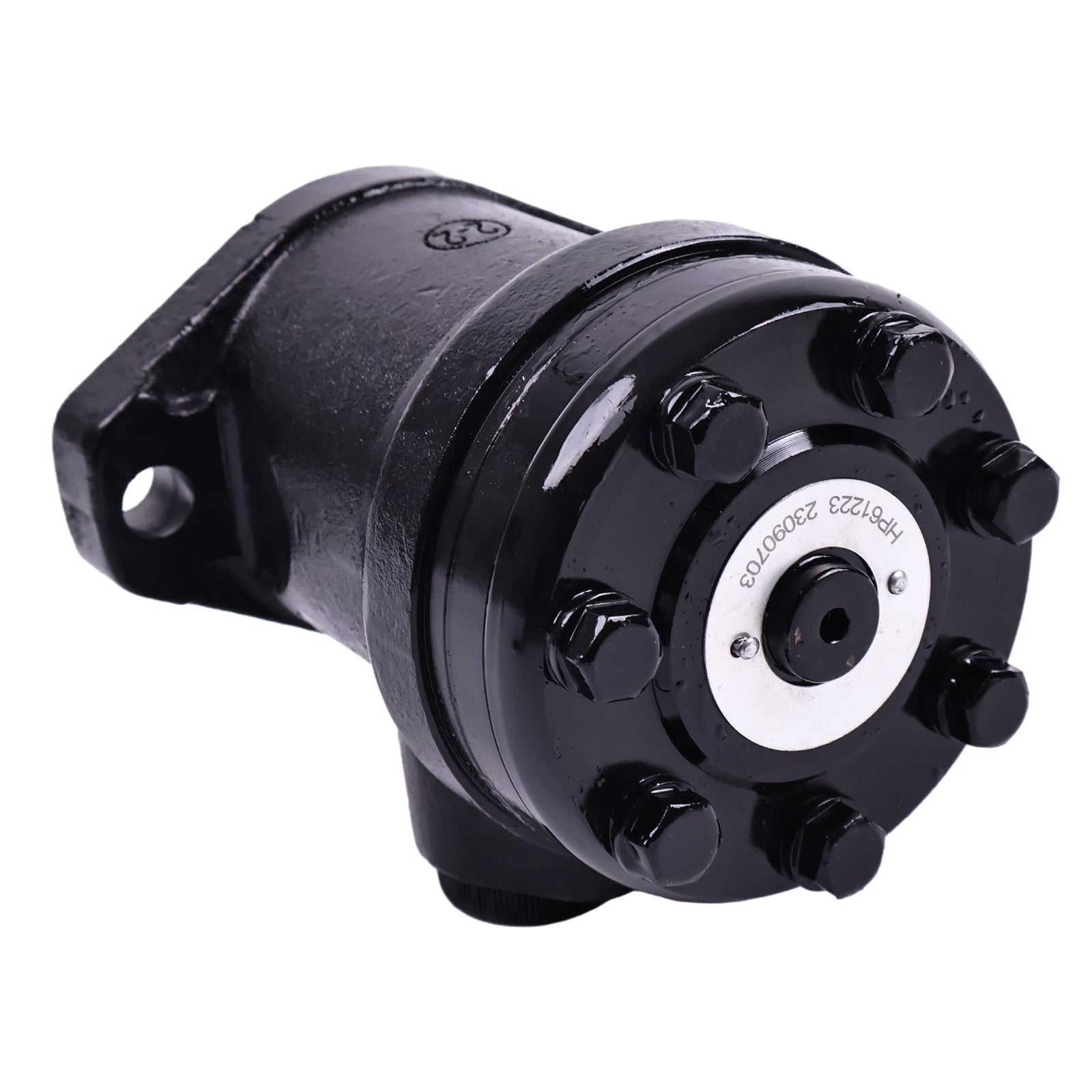

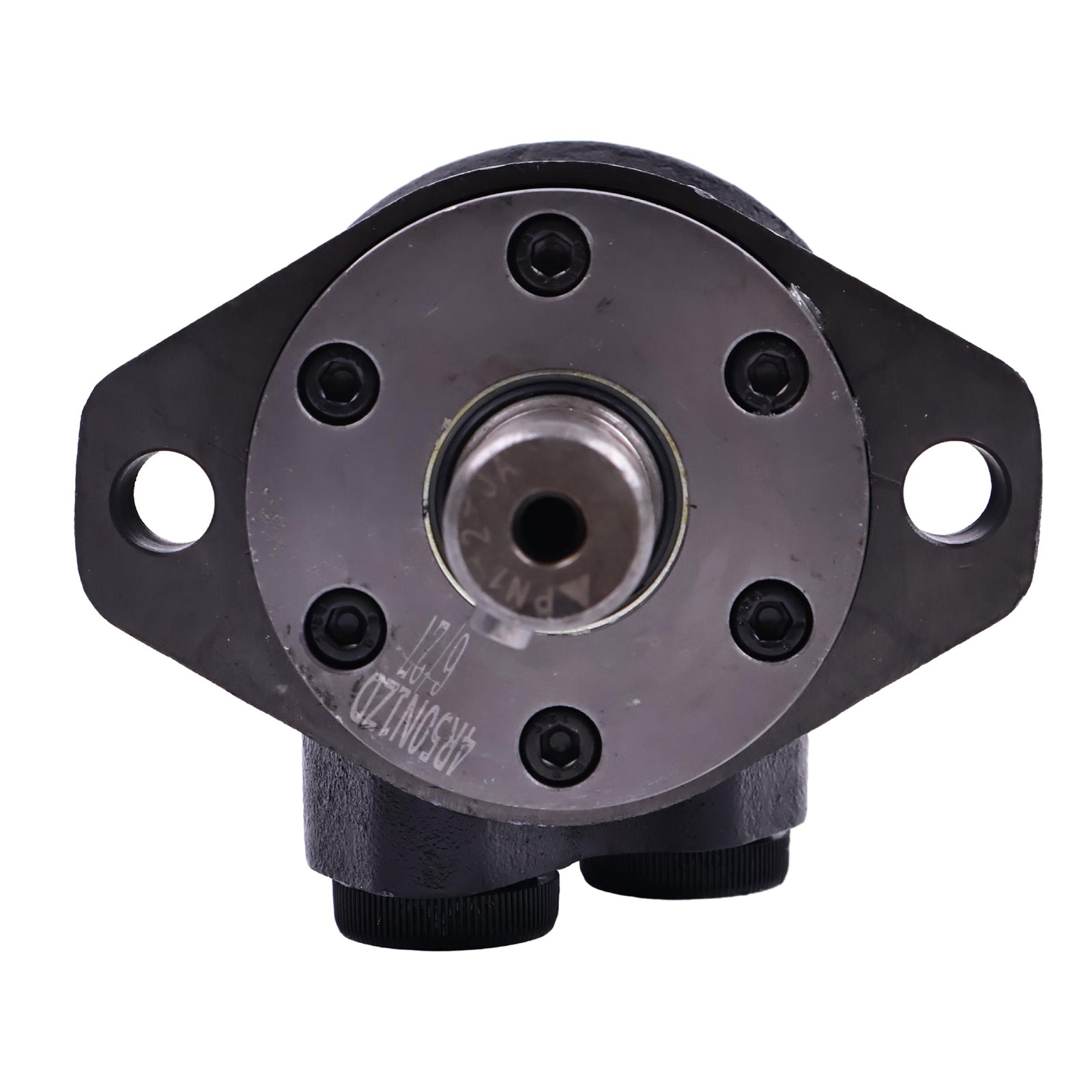

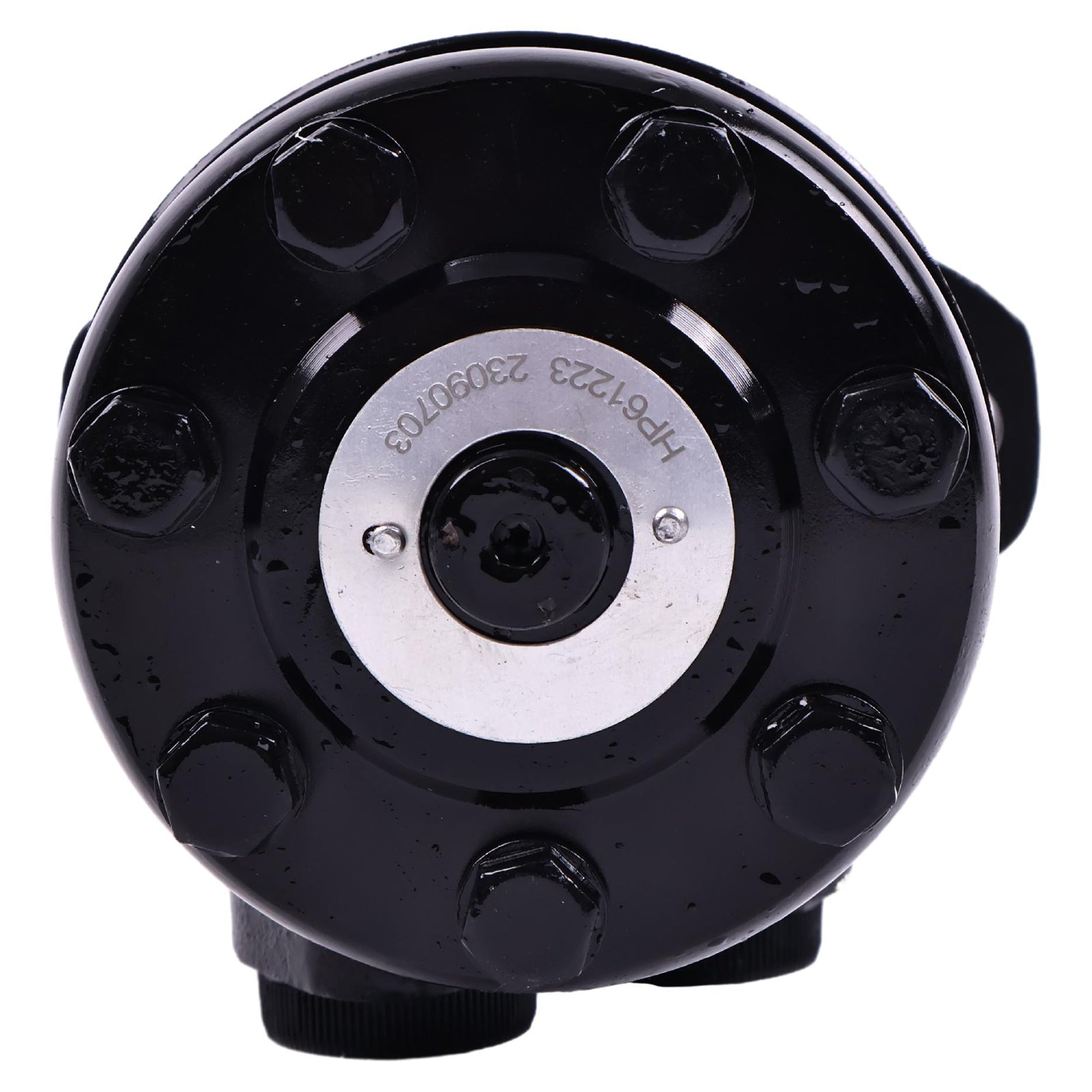

Part Name: Hydraulic Orbital Motor Manufacturing Part Number: OMP50 - 151-0610, OMP50 - 151-0310, OMP x 50 - 11185771
Specification:
Type:OMP
Motor Size: 50
Geometric displacement: 48.6cm³/[2.97in] Max speed cont: 1230 rpm Max speed int: 1540rpm Max torque cont: 93Nm/[820lbf in] Max torque int: 120Nm/[1060lbf in] Max output power cont: 10.0kW/[13.4hp] Max output power int: 12.0kW/[16.1hp] Max pressure drop cont: 140bar/[2030psi] Max pressure drop int: 175bar[2540psi] Max pressure drop peak: 225bar/[3260psi] Max oil flow cont: 60L/min Max oil flow int: 75L/min Max starting pressure with unloaded shaft: 10bar/[145psi] Min starting torque at max press drop cont: 80Nm/[710lbf in] Min starting torque at max press drop int: 100Nm/[890lbf in] Max inlet pressure cont: 175bar/[2540psi] Max inlet pressure int: 200bar/[2900psi] Max inlet pressure peak: 225bar/[3260psi] Max return pressure with drain line cont: 175bar/[2540psi] Max return pressure with drain line int: 200bar/[2900psi] Max return pressure with drain line peak: 225bar/[3260psi]
