25mm G1/2'' Hydraulic Orbital Motor OMR100 - 151-0712 OMR X 100 - 11186674
$199.00
SKU HP61377-JND

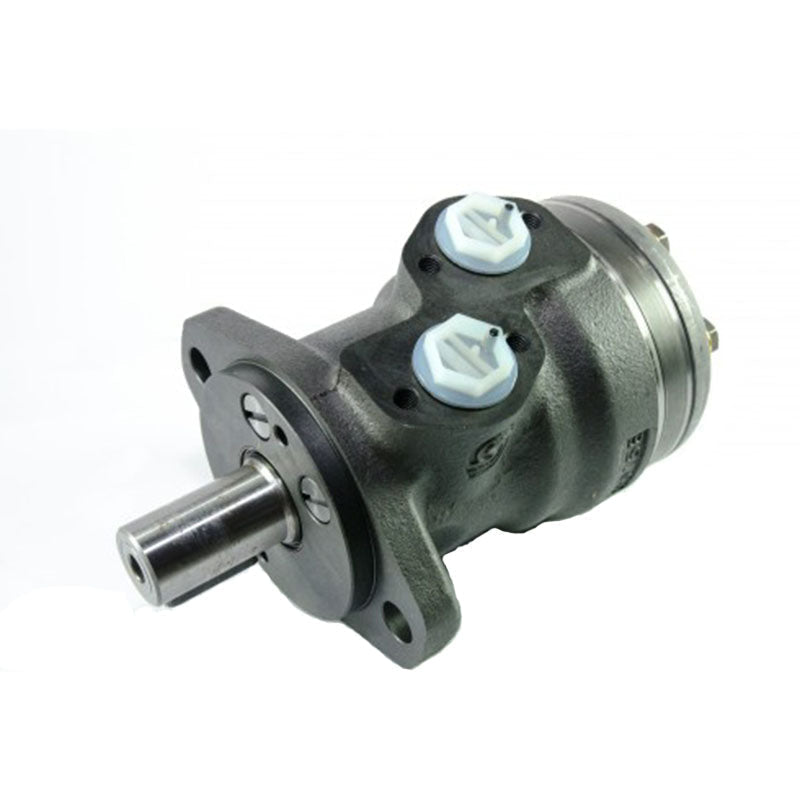

Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMR100 - 151-0712, OMR X 100 - 11186674, BMR-100-2ADN1
Manufacturing Part Number: OMR100 - 151-0712, OMR X 100 - 11186674, BMR-100-2ADN1
Specification:
| Type | OMR |
| Motor Size | 100 |
| Geometric displacement | 99.8cm³/[6.11in] |
| Max speed cont | 600 rpm |
| Max speed int | 750 rpm |
| Max torque cont | 240Nm/[2120lbf in] |
| Max torque int | 280Nm/[2480lbf in] |
| Max output power cont | 13.0kW/[17.4hp] |
| Max output power int | 15.0kW/[20.1hp] |
| Max pressure drop cont | 175bar/[2540psi] |
| Max pressure drop int | 200bar/[2900psi] |
| Max pressure drop peak | 225bar[3260psi] |
| Max oil flow cont | 60L/min |
| Max oil flow int | 75L/min |
| Max starting pressure with unloaded shaft | 10bar/[145psi] |
| Min starting torque at max press drop cont | 200Nm/[1770lbf in] |
| Min starting torque at max press drop int | 230Nm/[2040lbf in] |
| Max inlet pressure cont | 175bar/[2540psi] |
| Max inlet pressure int | 200bar/[2900psi] |
| Max inlet pressure peak | 225bar/[3260psi] |
| Max return pressure with drain line cont | 175bar/[2540psi] |
| Max return pressure with drain line int | 200bar/[2900psi] |
| Max return pressure with drain line peak | 225bar/[3260psi] |
