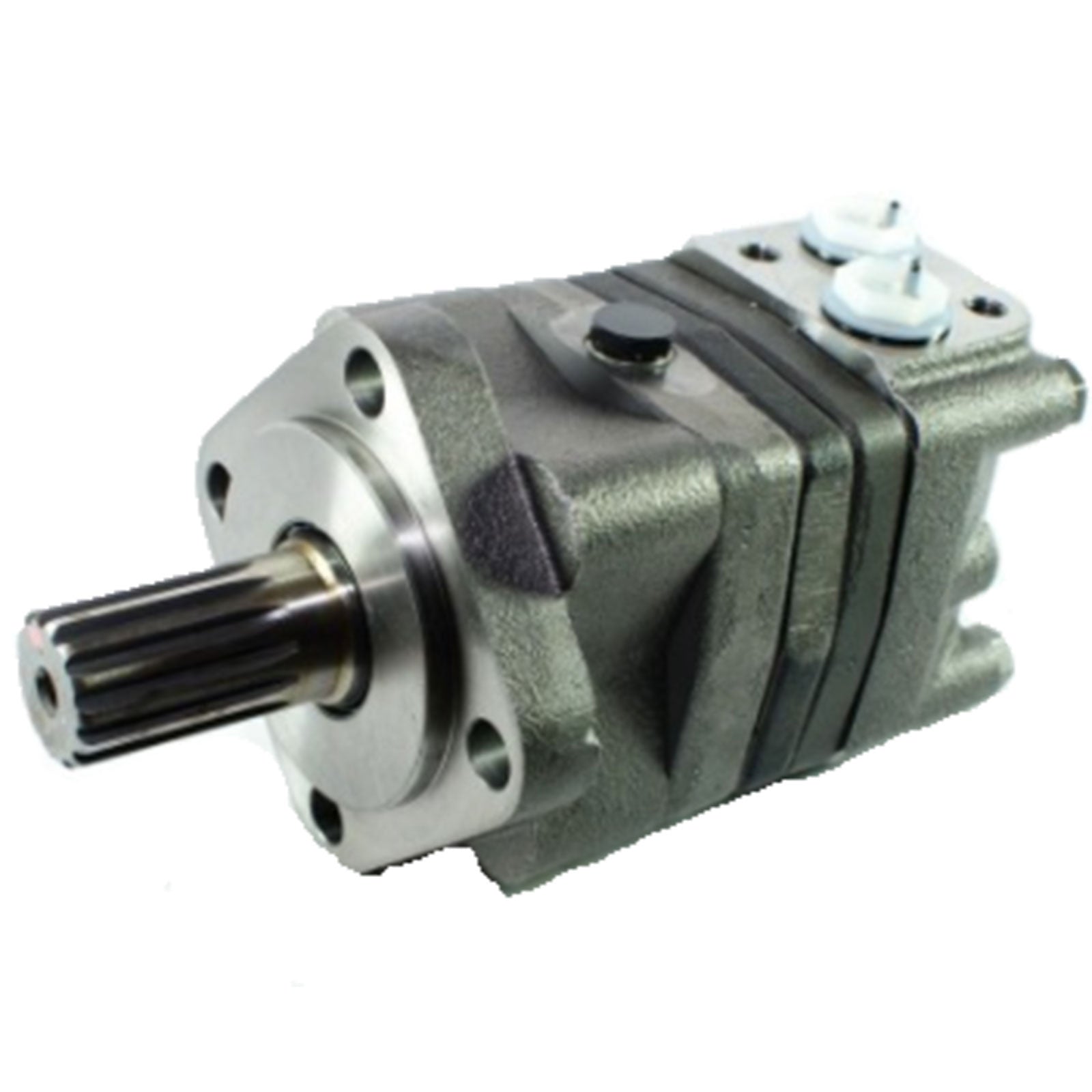

1.25'' 1/2 BSP Hydraulic Orbital Motor OMS100-151F0508 151F0508 OMS100151F0508
1.25'' 1/2 BSP Hydraulic Orbital Motor OMS100-151F0508 151F0508 OMS100151F0508
Regular price
$390.00 USD
Regular price
Sale price
$390.00 USD
Shipping calculated at checkout.
Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMS100-151F0508, 151F0508, OMS100151F0508
Manufacturing Part Number: OMS100-151F0508, 151F0508, OMS100151F0508
Specification:
Type: OMS
Size: 100
Geometric displacement: 100.0cm³/[6.10in]
Max speed cont: 750rpm
Max speed int: 900rpm
Max torque cont: 305Nm/[2700lbf in]
Max torque int: 390Nm/[3450lbf in]
Max output power cont: 18.0kW/[24.1hp]
Max output power int: 22.5kW/[30.2hp]
Max pressure drop cont: 210bar/[3050psi]
Max pressure drop int: 275bar/[3990psi]
Max pressure drop peak: 295bar[4280psi]
Max oil flow cont: 75L/min
Max oil flow int: 90L/min
Max starting pressure with unloaded shaft: 10bar/[145psi]
Min starting torque at max press drop cont: 230Nm/[2040lbf in]
Min starting torque at max press drop int: 300Nm/[2660lbf in]
Max inlet pressure cont: 230bar/[3340psi]
Max inlet pressure int: 295bar/[4280psi]
Max inlet pressure peak: 300bar/[4350psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 210bar/[3050psi]
Max speed cont: 750rpm
Max speed int: 900rpm
Max torque cont: 305Nm/[2700lbf in]
Max torque int: 390Nm/[3450lbf in]
Max output power cont: 18.0kW/[24.1hp]
Max output power int: 22.5kW/[30.2hp]
Max pressure drop cont: 210bar/[3050psi]
Max pressure drop int: 275bar/[3990psi]
Max pressure drop peak: 295bar[4280psi]
Max oil flow cont: 75L/min
Max oil flow int: 90L/min
Max starting pressure with unloaded shaft: 10bar/[145psi]
Min starting torque at max press drop cont: 230Nm/[2040lbf in]
Min starting torque at max press drop int: 300Nm/[2660lbf in]
Max inlet pressure cont: 230bar/[3340psi]
Max inlet pressure int: 295bar/[4280psi]
Max inlet pressure peak: 300bar/[4350psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 210bar/[3050psi]
