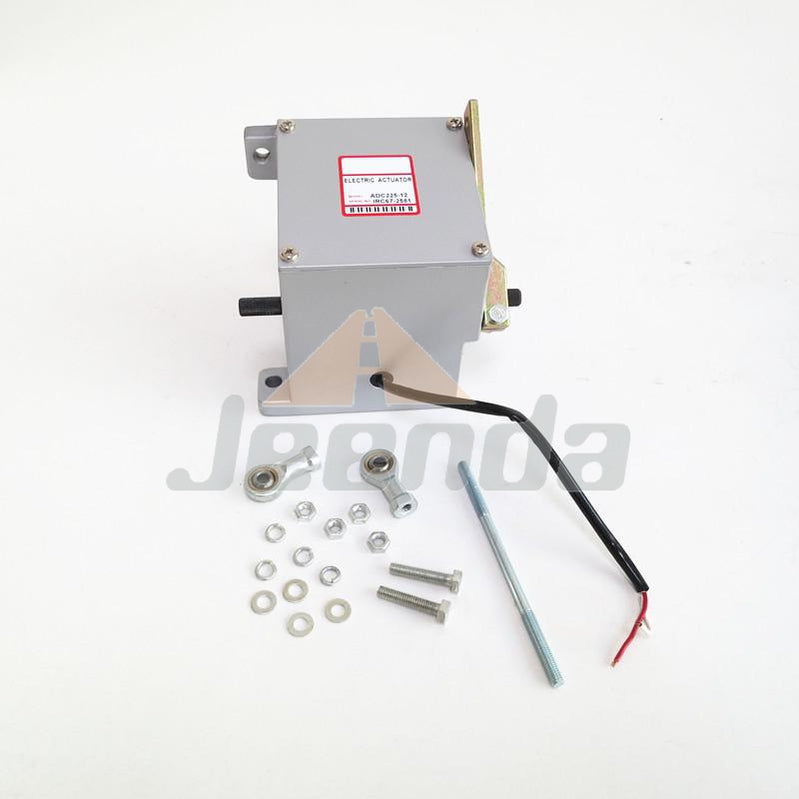

Electric Actuator ADC225-24V for GAC Governors America Corp 225 Series

GAC Governors America Corp 225 Series ADC225S (24 Volt) Actuator

(12 or 24 VDC / Commercial Connector / Serrated Shaft)

The 225 Series electric actuator is a rotary output, linear torque, proportional servo. This electromechanical actuator is typically used as an engine fuel control positioning device. An internal spring provides fail-safe operation by forcing the actuator to the fuel shut off position when the actuator is de-energized.

This design combines fast operation, multi-voltage usage, wider rotation angles, and proven reliability. The actuator can operate directly from 12 and 24-volt battery supplies.

The speed of operation of the actuator is typically faster than competitive units, thus it provides a more stable and rapid response to transient conditions. Applications include fuel injection pumps, with or without mechanical governors, rotary type pumps, and medium-sized gaseous fueled engines. The 25 degrees of rotation expands the application to a wider variety of engines.

Features:

• Easy Installation
• Universal Design
• Internal Return Spring
• Rapid Response to Transient
• Multiple Mounting Positions
• 2.2 lb.ft. Torque
• 25 Rotation
