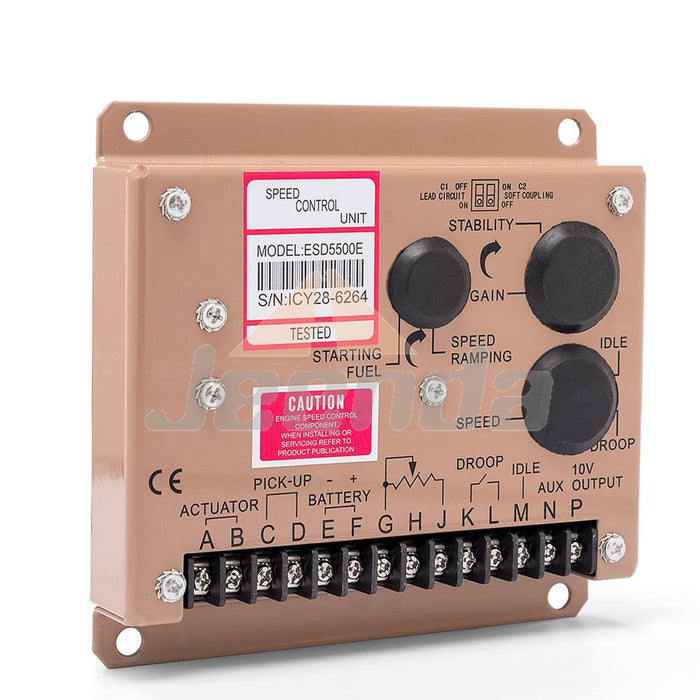

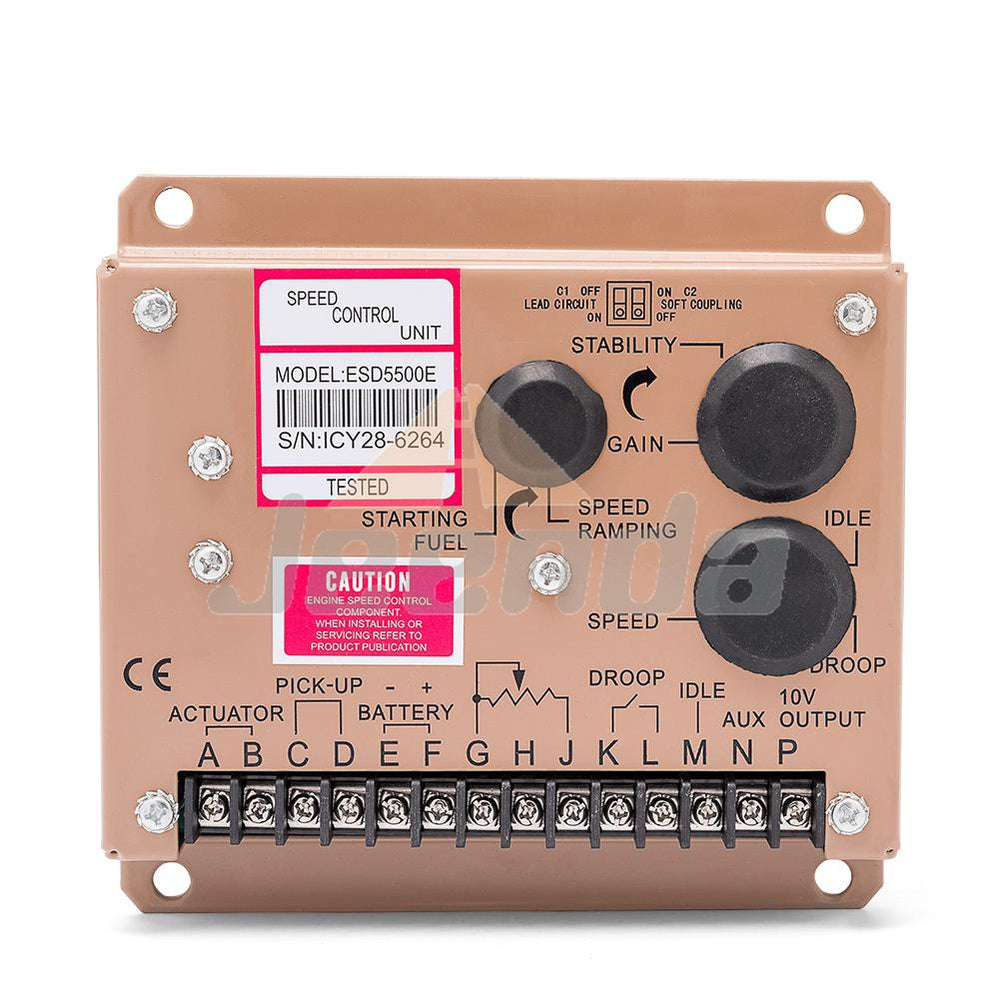

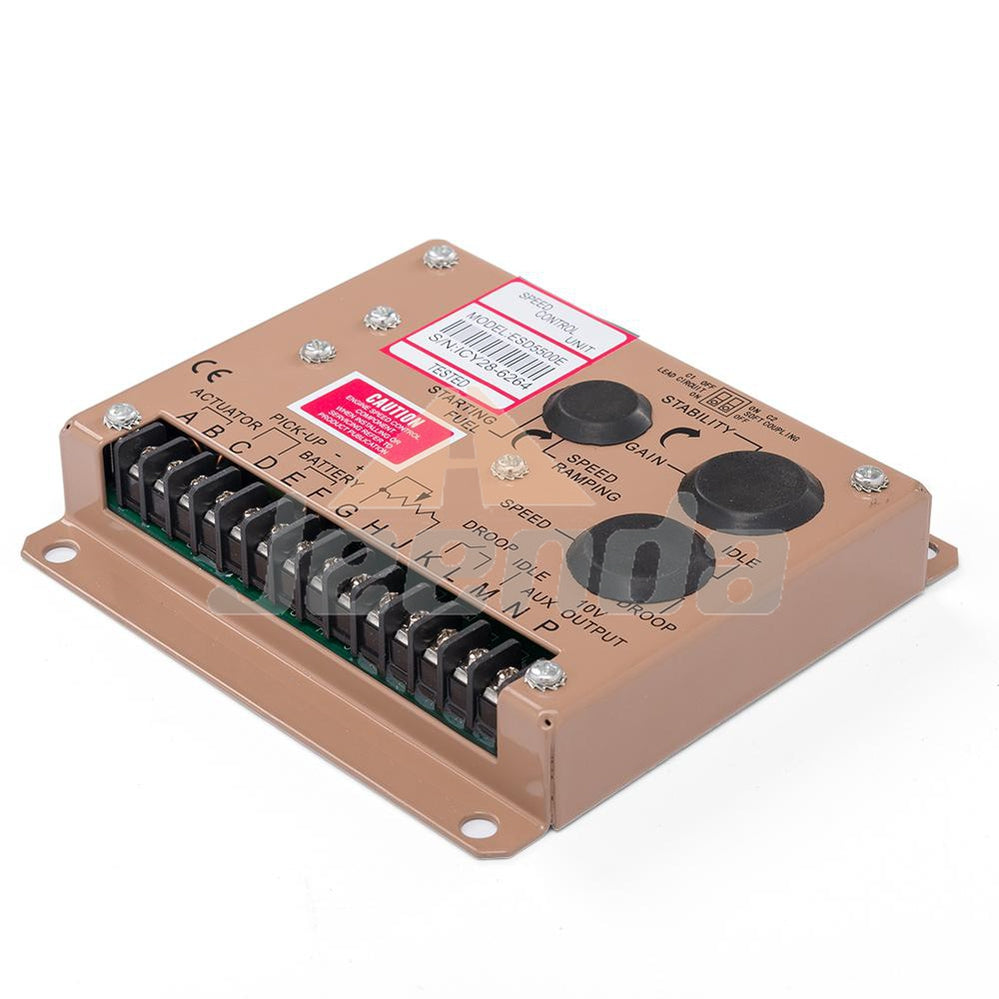

Part Number:AVR 5500E
Application:
The Generator Speed Controller ESD5500E Series Speed Control Unit is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dedicated control equipment. If water, mist, or condensation may come in contact with controller, it should be mounted vertically. This will allow the fluid to drain away from the speed control unit.
Working Voltage: 12-32V DC
Output Current Range:0-5A
Speed Sensor Signal:0.5~120 V RMS
Operating Ambient Temperature Range:-40℃ ~ 85℃
Relative Humidity: 〈95％
Speed Range: 1K-7.5K Hz
Speed Trim Range: ± 200Hz
Gross Weight: 0.62KG
Package Size: 180*175*55mm

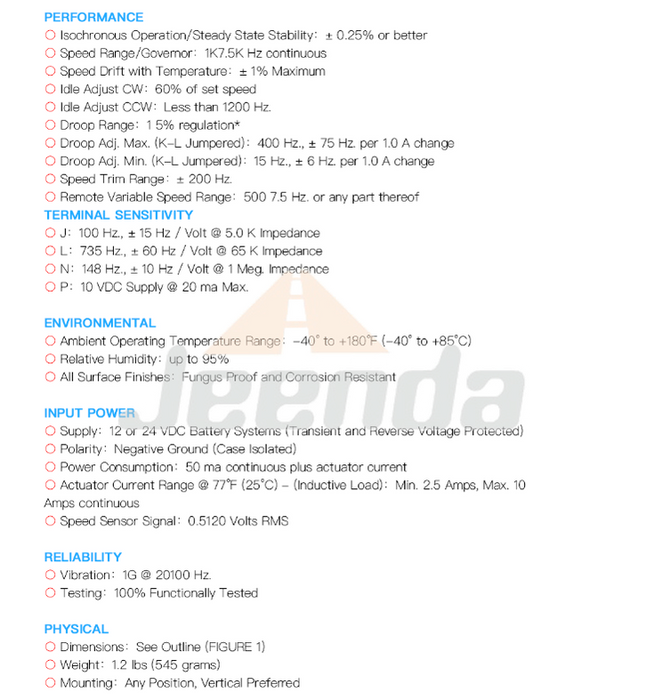

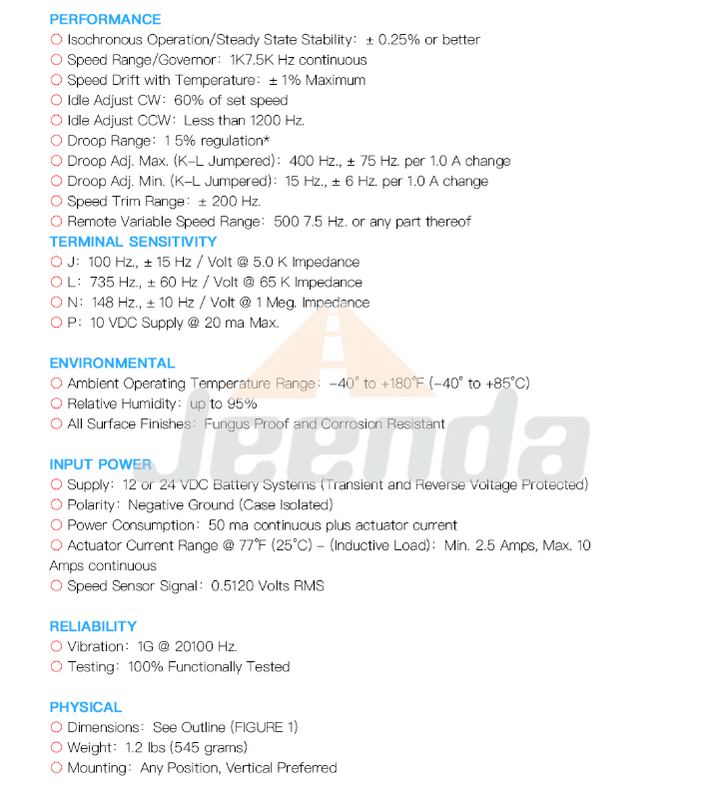

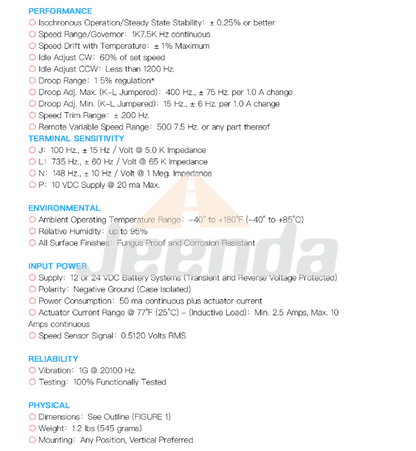

The 5500 series speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes.
Isochronous Operation/Steady Stability: +/-0.25% or better
Supply: 12 or 24 VDC Battery Systems(transient&reverse voltage protected)
Power Consumption: 50 ma continuous plus acutator current
Maximum Actuator Current at 25celsius(77celsius F): 10 Amps continuous
Output Current Range:0-5A
Speed Sensor Signal:0.5~120 V RMS
Operating Ambient Temperature Range:-40℃ ~ 85℃
Relative Humidity: 〈95％
Speed Range: 1K-7.5K Hz
Speed Trim Range: ± 200Hz
Gross Weight: 0.62KG
Package Size: 180*175*55mm
The 5500 series speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes.
Isochronous Operation/Steady Stability: +/-0.25% or better
Supply: 12 or 24 VDC Battery Systems(transient&reverse voltage protected)
Power Consumption: 50 ma continuous plus acutator current
Maximum Actuator Current at 25celsius(77celsius F): 10 Amps continuous
