Free Shipping Automatic Voltage Regulator AVR EA63-7D AVC63-7D
by Mecc Alte
Save 12%
Original Price
$259.00
Current Price
$229.00
SKU Jeenda0327007
- Part Number:EA63-7D
- Gross weight:1.5 kg

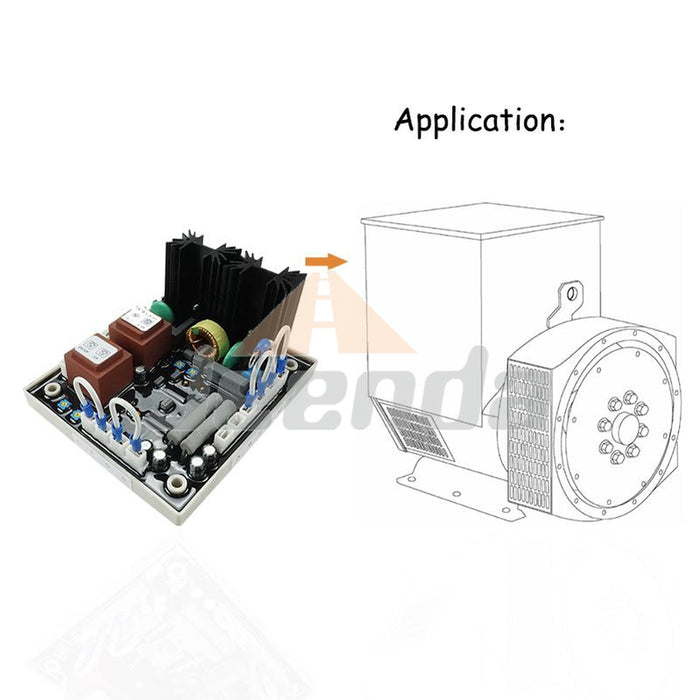

Application:
Automatic Voltage Regulator EA63-7D AVR for Brushless Generator is a half-wave phase controlled thyristor type Automatic Voltage
Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the
AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage
build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is
linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load
regulations of +/- 1.5%
|
Product Name
|
Generator AVR Automatic Voltage Regulator EA63-7D AVC63-7D
|
||
|
Sensing/Power input
|
Voltage
|
95-480Vac/100-264Vac,1 Phase
|
|
|
Frequency
|
50/60 Hz jumper selectable
|
||
|
Output
|
Voltage
|
Max 90Vdc at 270Vac imput
|
|
|
Current
|
Continuous 4A,Intermittent 10A within 10 seconds
|
||
|
Voltage Regulation
|
< +/-1% (with 4% engine governing)
|
||
