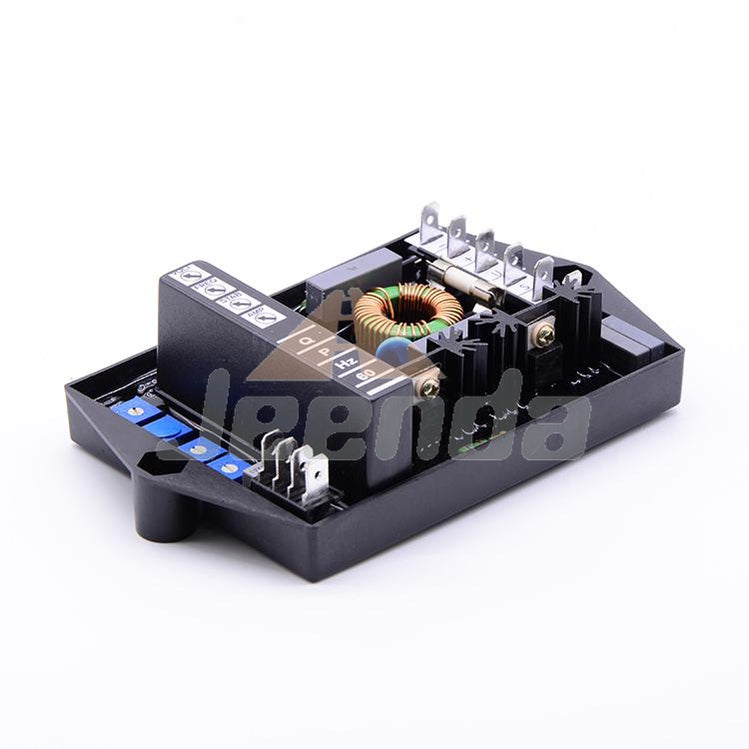

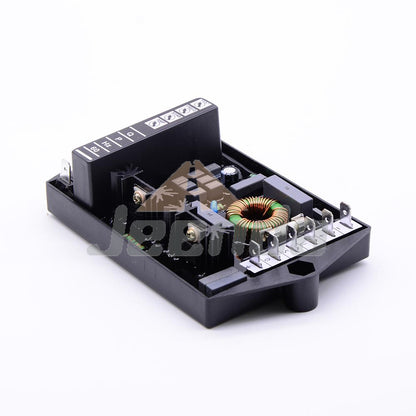

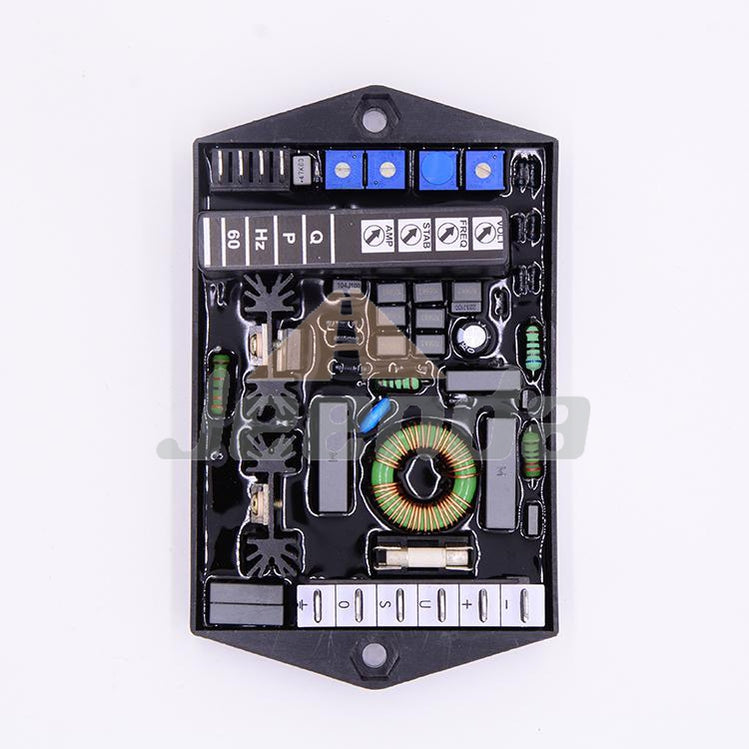

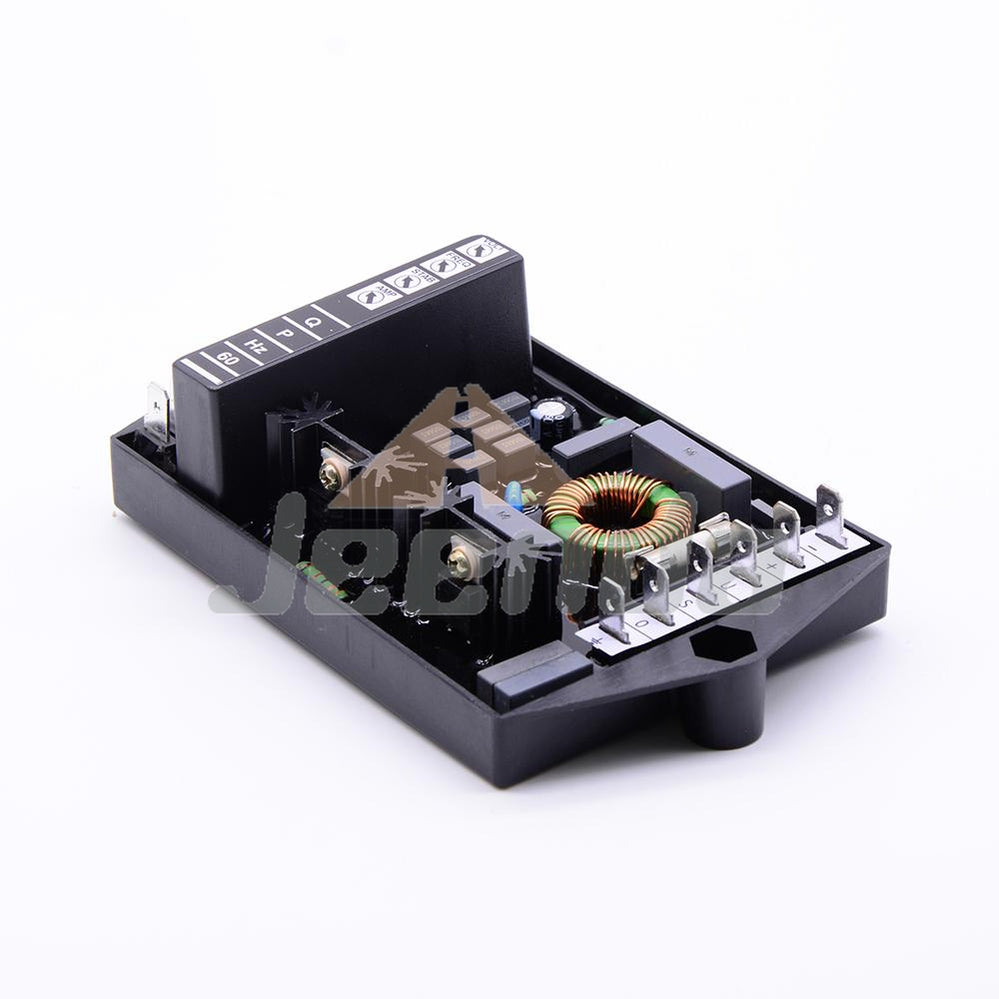

Free Shipping Automatic Voltage Regulator AVR for Marelli Brushless M16FA655A Mark V

Part Number:M16FA655A  Mark V

• Marelli 10005388
• Marelli Mark V
• Marelli M16FA655A
• Olympian 10000-61859

TECHNICAL DATA for M16FA655A Marelli AVR:

• REGULATION ACCURACY: +/- 0.5% rated steady-state conditions
• VOLTAGE DRIFT:+/- 0.5 %, voltage change, for 50°C T amb change
• RESPONSE TIME: 1 cycle
• OPERATING TEMPERATURE:  -30 °C ÷ +70 °C
• EXCITER FIELD RESISTANCE:  8 Ω (min) ÷ 20 Ω(max)
• INPUT/OUTPUT DATA of M16FA655A Marelli Automatic voltage regulator :
• -PROVIDE VOLTAGE:170 -270 V
• -POWER PROVIDE:350 VA (max)
• -POWER DISSIPATED: 15 W (max)
• -VOLTAGE SENSING: 170 - 270 V
• -OUTPUT VOLTAGE (DC):30 V
• -OUTPUT CURRENT (DC): 5 A   (max, continuous)
• -OUTPUT CURRENT (DC): 8 A   (max forcing one minute)
