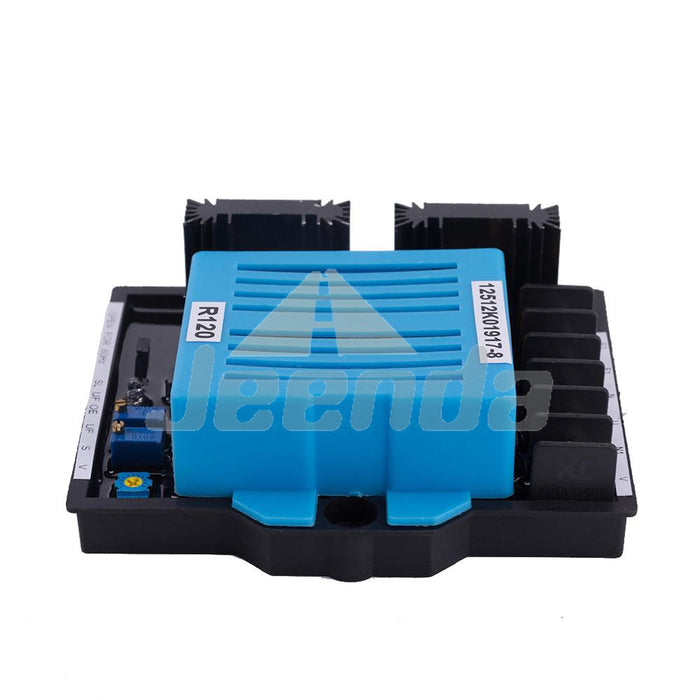

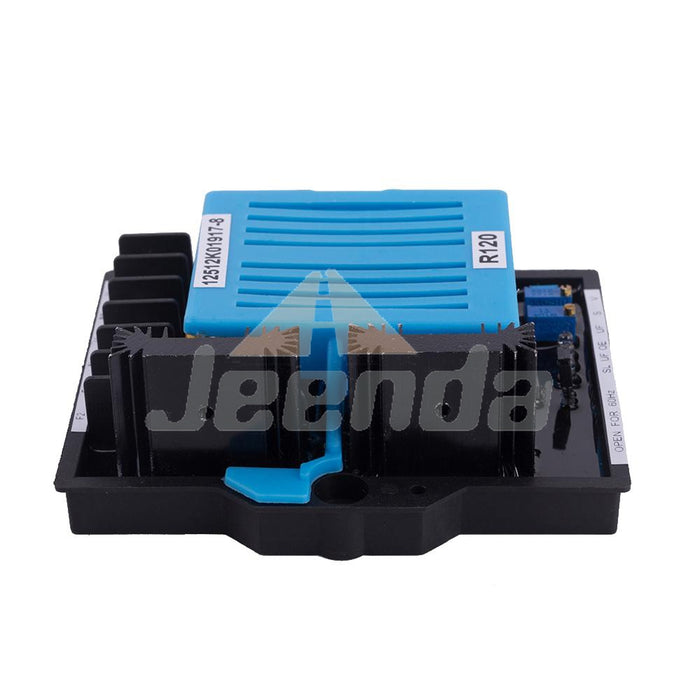

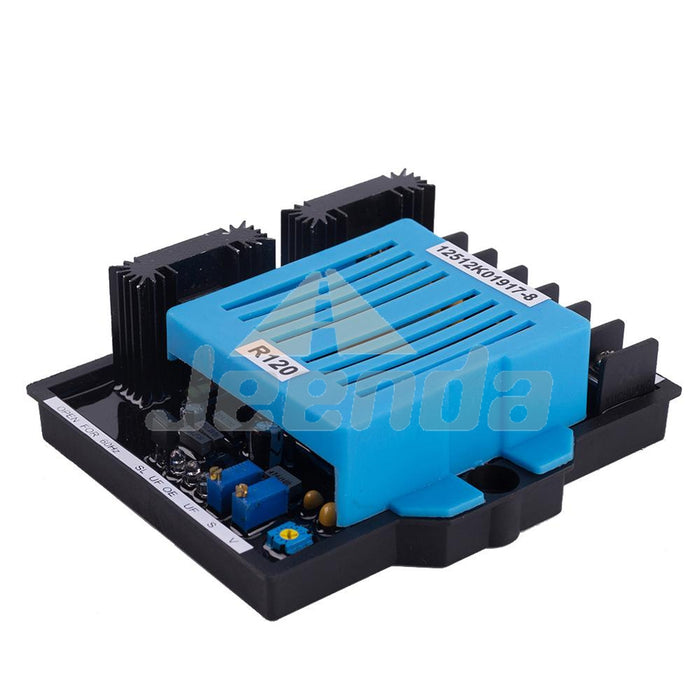

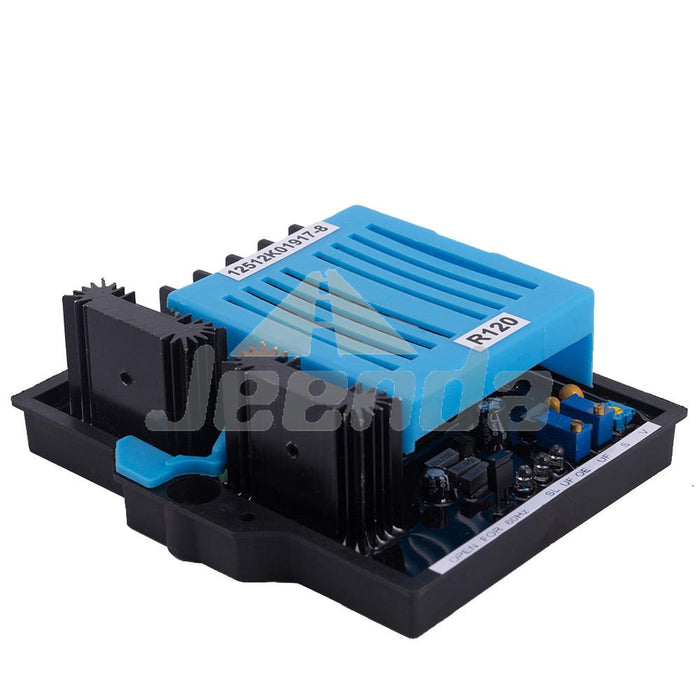

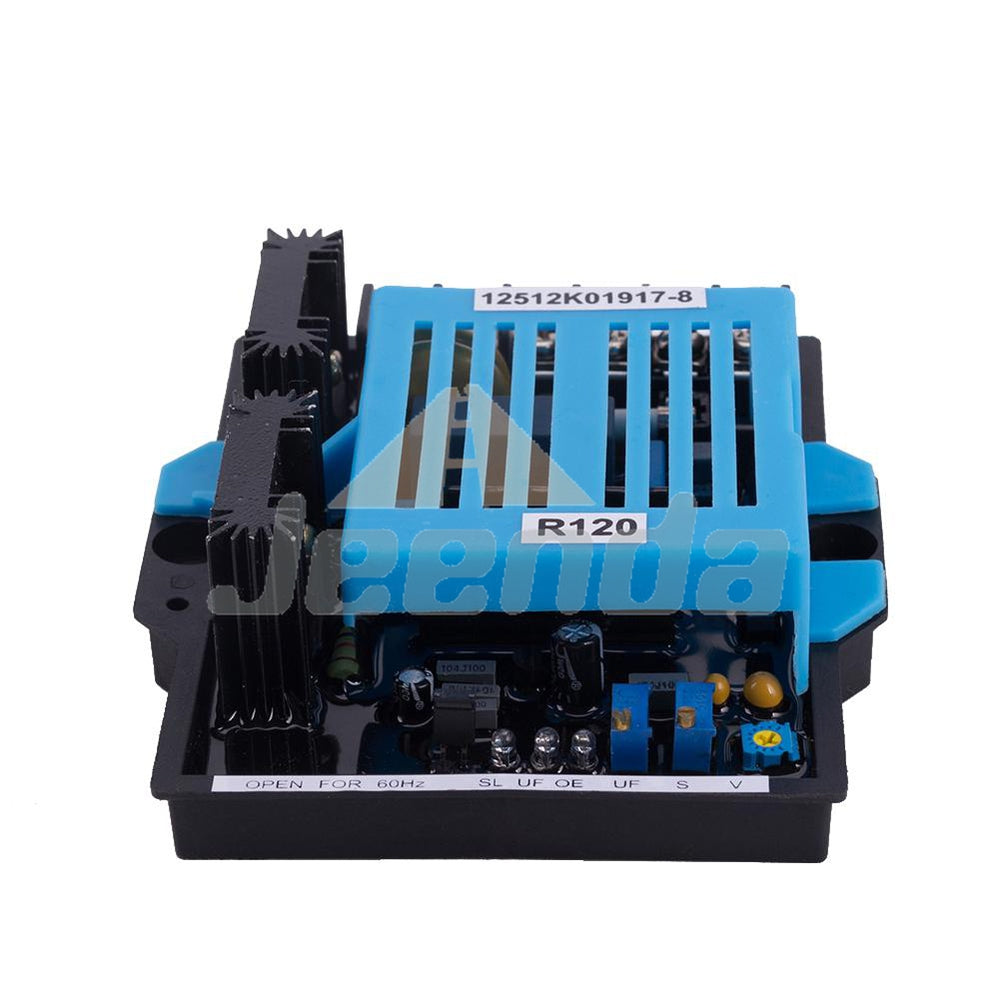

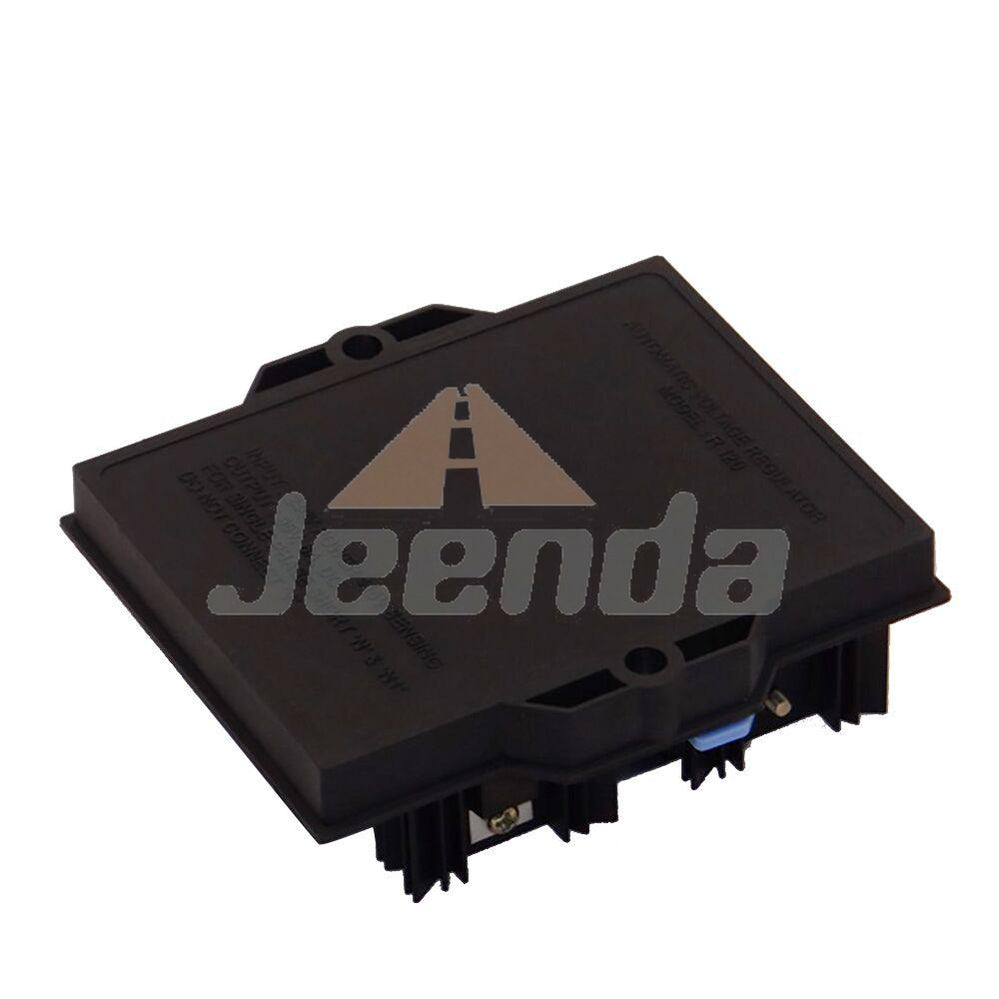

Free Shipping Automatic Voltage Regulator AVR R120
Part Number: AVR R120
Diesel Engine Set Voltage Regulation AVR R120
Diesel Engine Set Voltage Regulation AVR R120 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under-speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage builds up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed-loop control of the output voltage with load regulations of +/- 1.5%
Product Name: R120
SENSING/POWER INPUT Voltage Jumper selectable 190-245VAC
MAGNETIC FIELD OUTPUT Voltage max 95VDC at 240VAC input
Current continuous 20A,
PRESSURE REGULATING ACCURACY <+/-1%RMS with 4% engine governing
