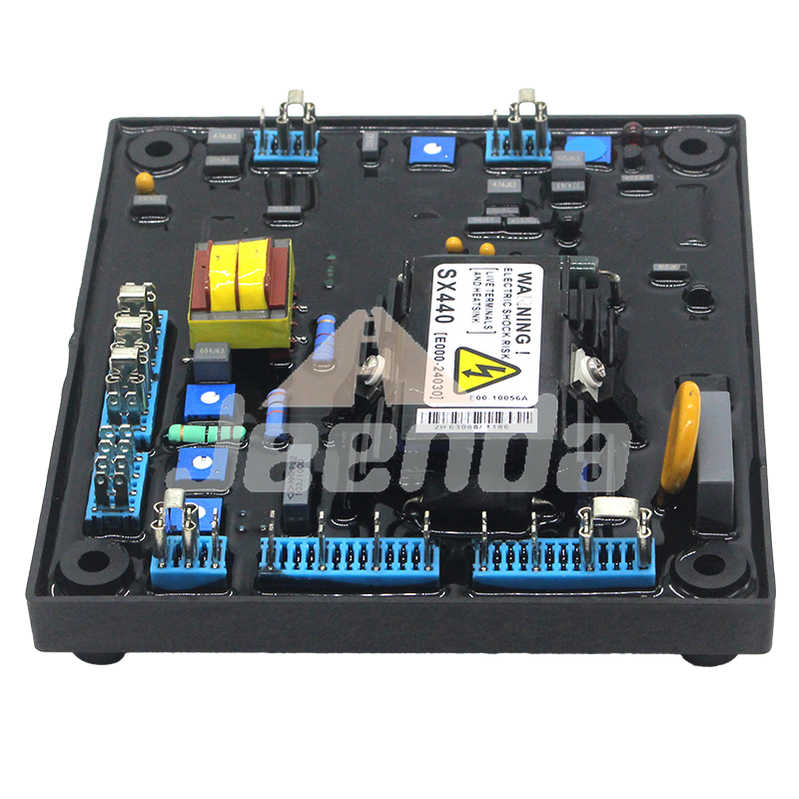

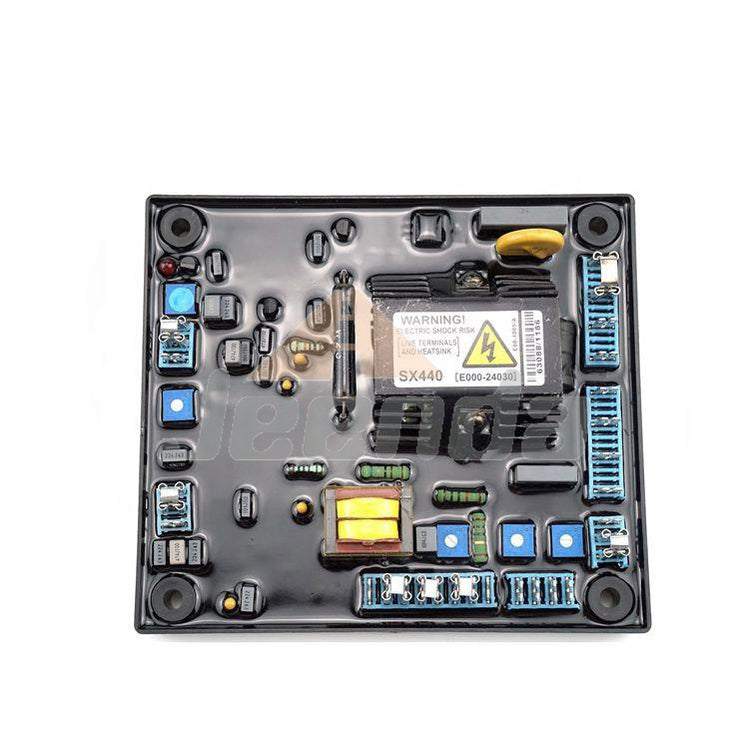

Free Shipping Jeenda AVR SX440 150KVA 220V Automatic Voltage Regulator
Free Shipping Jeenda AVR SX440 150KVA 220V Automatic Voltage Regulator
Regular price
$50.00 USD
Regular price
$50.00 USD
Sale price
$50.00 USD
Shipping calculated at checkout.
AVR SX440 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator (AVR) and forms part of the excitation system for a brush-less generator.
In addition to regulating the generator voltage, the Stamford AVR Card SX440 circuitry includes under-speed and sensing loss protection features. Excitation power is derived directly from the generator terminals.
Positive voltage build up from residual levels is ensured by the use of efficient semiconductors in the power circuitry of the AVR.
| AVR | SX440 |
| Sensing voltage | 190-264VAC, 1 phase 2 wire |
| Frequency | 50-60Hz |
| Output voltage | max 90VD at 207VAC input |
| output current | continuous 4ADC , intermittent 10A for 10 secs |
| Resistance | 15 ohm minimum |
| Regulation | +/-1% RMS with 4% engine governing |
| Voltage establish | residual voltage at avr terminal≥ 5AC |
| External Voltage Adustment | +/-8% with 1k ohm 1 watt trimmer |
