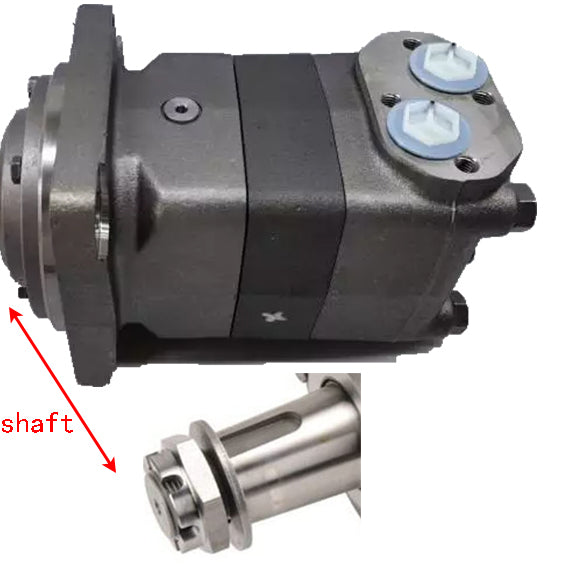

Hydraulic Motor 151B2170 OMVW315-151B2170 151B-2170

Part Number: 151B2170, OMVW315-151B2170, 151B-2170

Motorseries: O-Series

Basic Motor: OMVW

Displacement: 315

Design Number: 2

Mounting Flange: Wheel

Shaft Style: Tapered - Cone 1:8

Shaft Size: 2 1/4 inch tap

Shaft Key: 9/16 x 9/16 x 2 inch (B.S. 46)

Port Size: Side port

Port Dimension: 1 5/16 - 12 UN

Drain Port Style: Standard

Drain port Dimension: 9/16 - 18 UNF

Brake Release Port: None

Brake Release Port Dimension: None

Front bearing: Tapered roller bearing

Rear bearing: Tapered roller bearing

Gear wheel set: Standard
