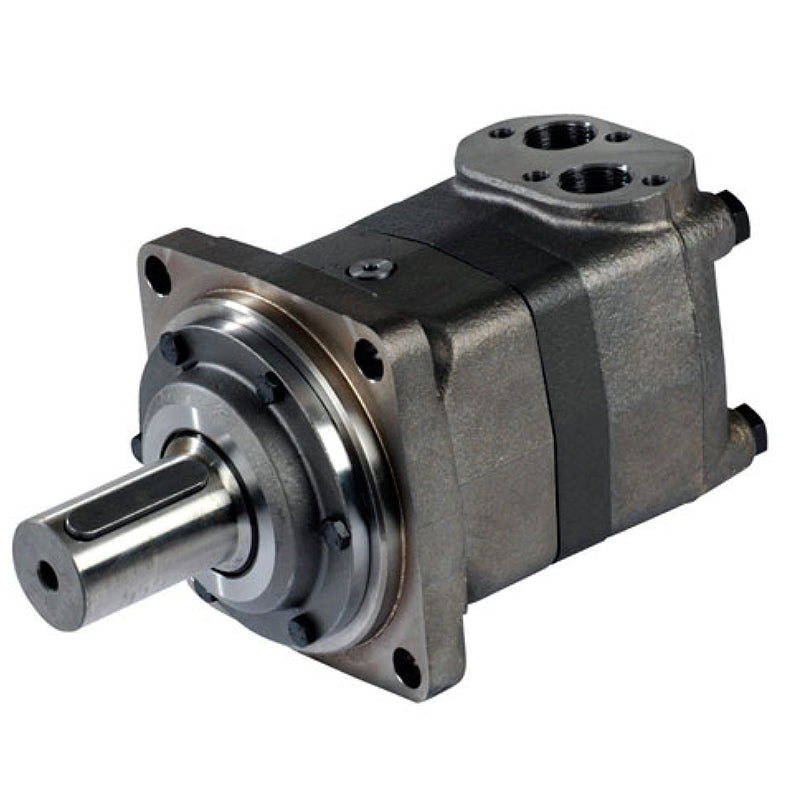

Hydraulic Motor 151B2183 OMV315-151B2183 151B-2183

Part Number: 151B2183, OMV315-151B2183, 151B-2183

Motorseries: O-Series

Basic Motor: OMV

Displacement: 315

Mounting Flange: SAE C

Shaft Style: Cylindrical

Shaft Size: 2 1/4 inch ; 1/2-20 UNF tap

Shaft Key: 1/2 x 1/2 x 2 1/4 inch (B.S. 46)

Port Size: Side port

Port Dimension: 1 5/16 - 12 UN

Drain Port Style: Standard

Drain port Dimension: 9/16 - 18 UNF

Brake Release Port: None

Brake Release Port Dimension: None

Front bearing: Tapered roller bearing

Rear bearing: Tapered roller bearing

Gear wheel set: Standard
