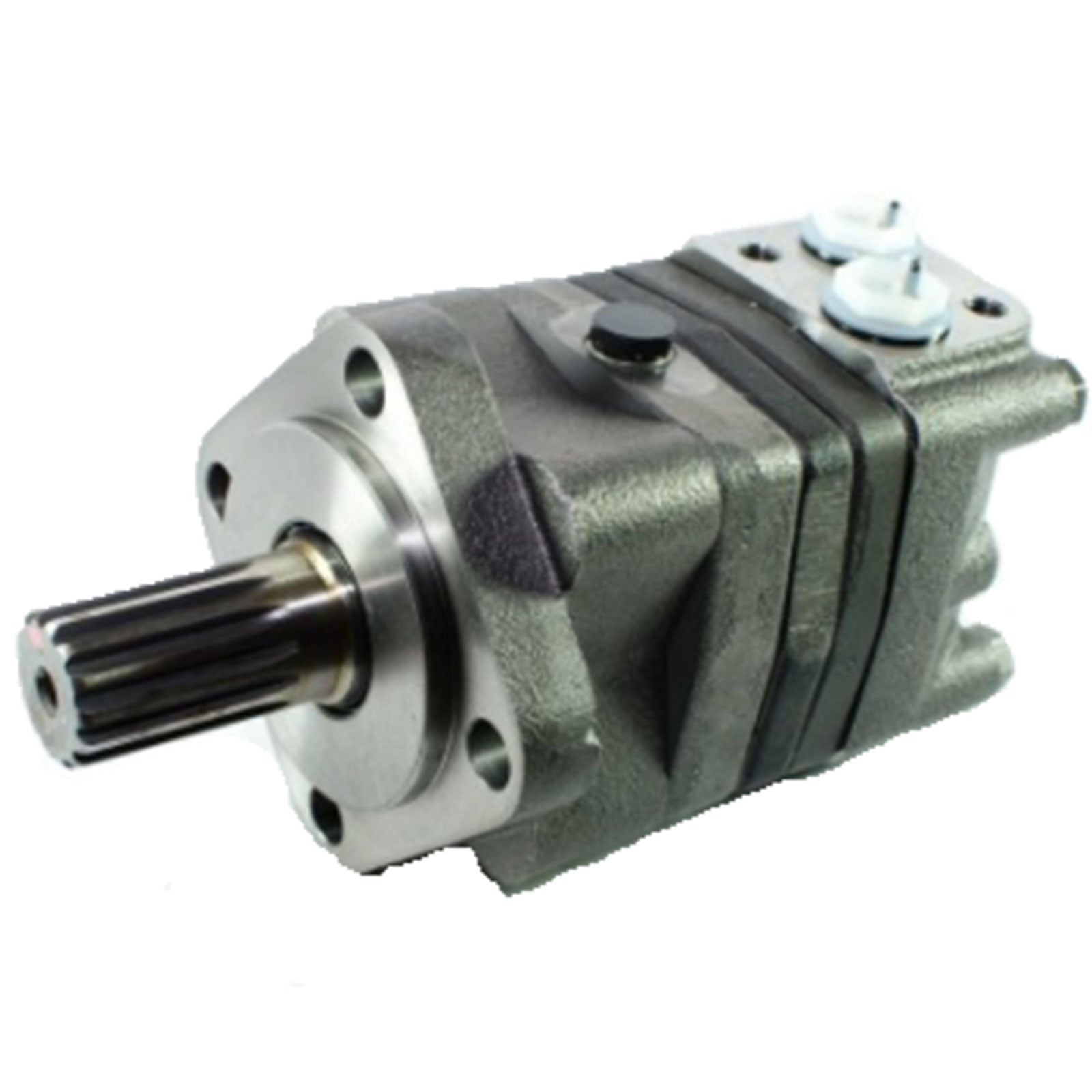

Hydraulic Motor OM500 151F2403 OMS500-151F2403 151F-2403

Part Number: 151F2403, OMS500-151F2403, 151F-2403

Motorseries: O-Series

Basic Motor: OMS

Displacement: 500

Mounting Thread Dimension: None

Shaft Style: Splined - 14T

Shaft Size: 1 1/4 inch ; 3/8-16 UNC tap

Shaft Key: None

Port Size: Side port

Port Dimension: 7/8 - 14 UNF

Drain Port Style: Standard

Drain port Dimension: 7/16 - 20 UNF

Dust Seal: Standard

Shaft Seal: NBR - Standard

Front bearing: Tapered roller bearing

Rear bearing: Tapered roller bearing

Gear wheel set: Standard
