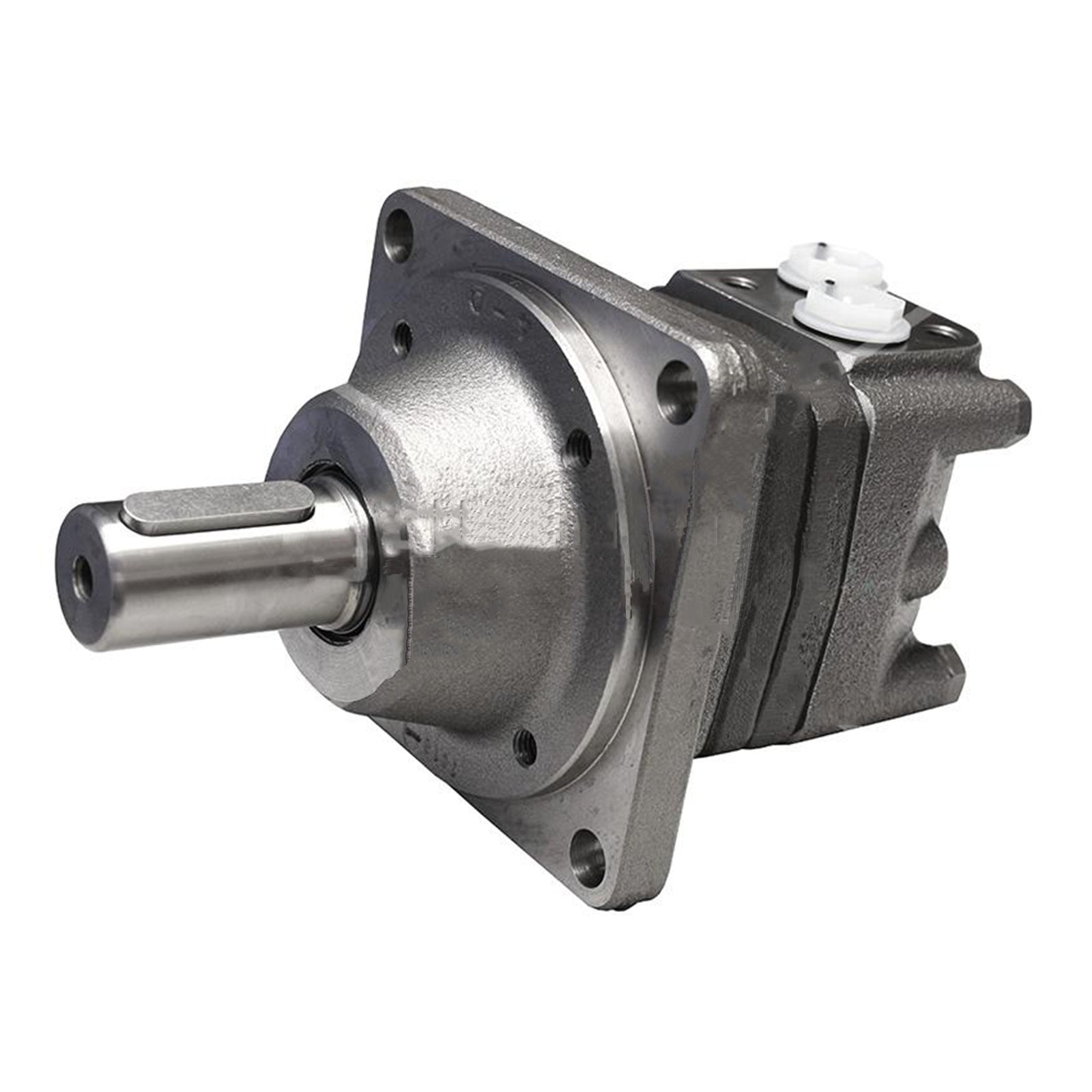

Hydraulic Motor OMSW100 151F2236 OMSW100-151F2236 151F-2236

Part Number: 151F2236

Motorseries: O-Series

Basic Motor: OMSW

Displacement: 100

Design Number: 3

Mounting Flange: Wheel

Mounting Thread Dimension: None

Shaft Style: Cylindrical

Shaft Size: 1 1/4 inch ; 3/8-16 UNC tap

Shaft Key: 5/16 x 5/16 x 1 1/4 inch (SAE J744)

Port Size: Side port

Port Dimension: 7/8 - 14 UNF

Drain Port Style: Standard

Drain port Dimension: 7/16 - 20 UNF

Front bearing: Tapered roller bearing

Rear bearing: Tapered roller bearing

Gear wheel set: Standard

Check valve: Yes
