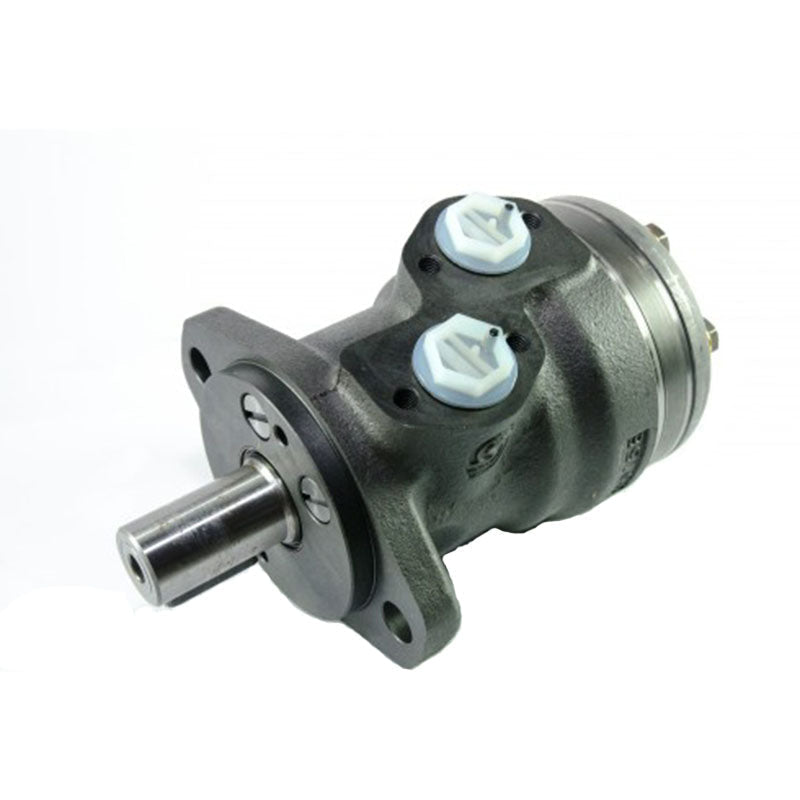

1'' 1/2 BSP Hydraulic Orbital Motor OMR125 - 151-0703 OMR x 125 - 11185548 1510703
1'' 1/2 BSP Hydraulic Orbital Motor OMR125 - 151-0703 OMR x 125 - 11185548 1510703
Regular price
$255.00 USD
Regular price
Sale price
$255.00 USD
Shipping calculated at checkout.
Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMR125 - 151-0703, OMR x 125 - 11185548, 1510703
Specification:
Manufacturing Part Number: OMR125 - 151-0703, OMR x 125 - 11185548, 1510703
Specification:
Type: OMR
Motor Size: 125
Geometric displacement: 125cm³/[7.65in]
Max speed cont: 475 rpm
Max speed int: 600 rpm
Max torque cont: 300Nm/[3010lbf in]
Max torque int: 340Nm/[2570lbf in]
Max output power cont: 12.5kW/[16.8hp]
Max output power int: 14.5kW/[19.4hp]
Max pressure drop cont: 175bar[2540psi]
Max pressure drop int: 200bar[2900psi]
Max pressure drop peak: 225bar/[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 9bar/[130psi]
Min starting torque at max press drop cont: 250Nm/[2210lbf in]
Min starting torque at max press drop int: 280Nm/[2480lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
Max speed cont: 475 rpm
Max speed int: 600 rpm
Max torque cont: 300Nm/[3010lbf in]
Max torque int: 340Nm/[2570lbf in]
Max output power cont: 12.5kW/[16.8hp]
Max output power int: 14.5kW/[19.4hp]
Max pressure drop cont: 175bar[2540psi]
Max pressure drop int: 200bar[2900psi]
Max pressure drop peak: 225bar/[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 9bar/[130psi]
Min starting torque at max press drop cont: 250Nm/[2210lbf in]
Min starting torque at max press drop int: 280Nm/[2480lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
