Jeenda Battery Charger for SmartGen BAC150CAN 24V 5A with Three segments
Jeenda Battery Charger for SmartGen BAC150CAN 24V 5A with Three segments
Regular price
$239.00 USD
Regular price
$239.00 USD
Sale price
$239.00 USD
Shipping calculated at checkout.
- Voltage：24V
- Part Number：BAC150CAN
- Power Supply：AC (100～277)V
- Case Dimensions：171*119.5*65.5(mm)
- Operating Temp. ：(-30~+55)℃
- Weight：0.58kg
- 1.Switch power supply structure, wide high voltage input, small size, lightweight, high efficiency;
- 2.It can work automatically by the method of two-stage or three-stage as required. The two methods both are designed according to battery charging characteristics, and can prevent lead-acid battery overcharging, which extremely improves the battery life span;
- 3.Built-in PFC is designed, so when the output terminal is connected reversely, it shall be AC power supply, which can effectively protect the charger. When the reverse connection is removed, it shall recover the output automatically;
- 4.Multi-function output port is designed, and it can be configured on PC. Low output level is active.
- 5. Multi-function input port is designed, and it can be configured on PC. Low input level is active.
- 6.Temperature sensor port is designed, which can monitor the battery temperature of the current time; and it also has a temperature compensation function, which can effectively prevent over high battery temperature;

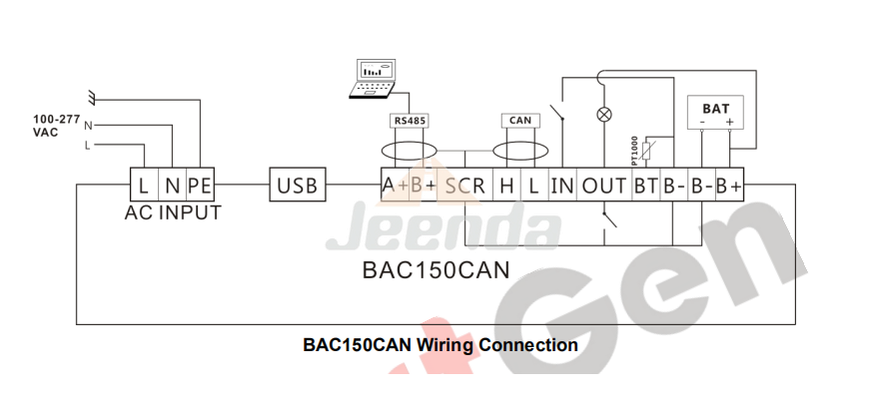

- 7.Standard RS485 serial communication interface, CAN communication interface, and USB communication interface are designed;
- 8.LED display: Charging status indicator, and alarm indicator.
