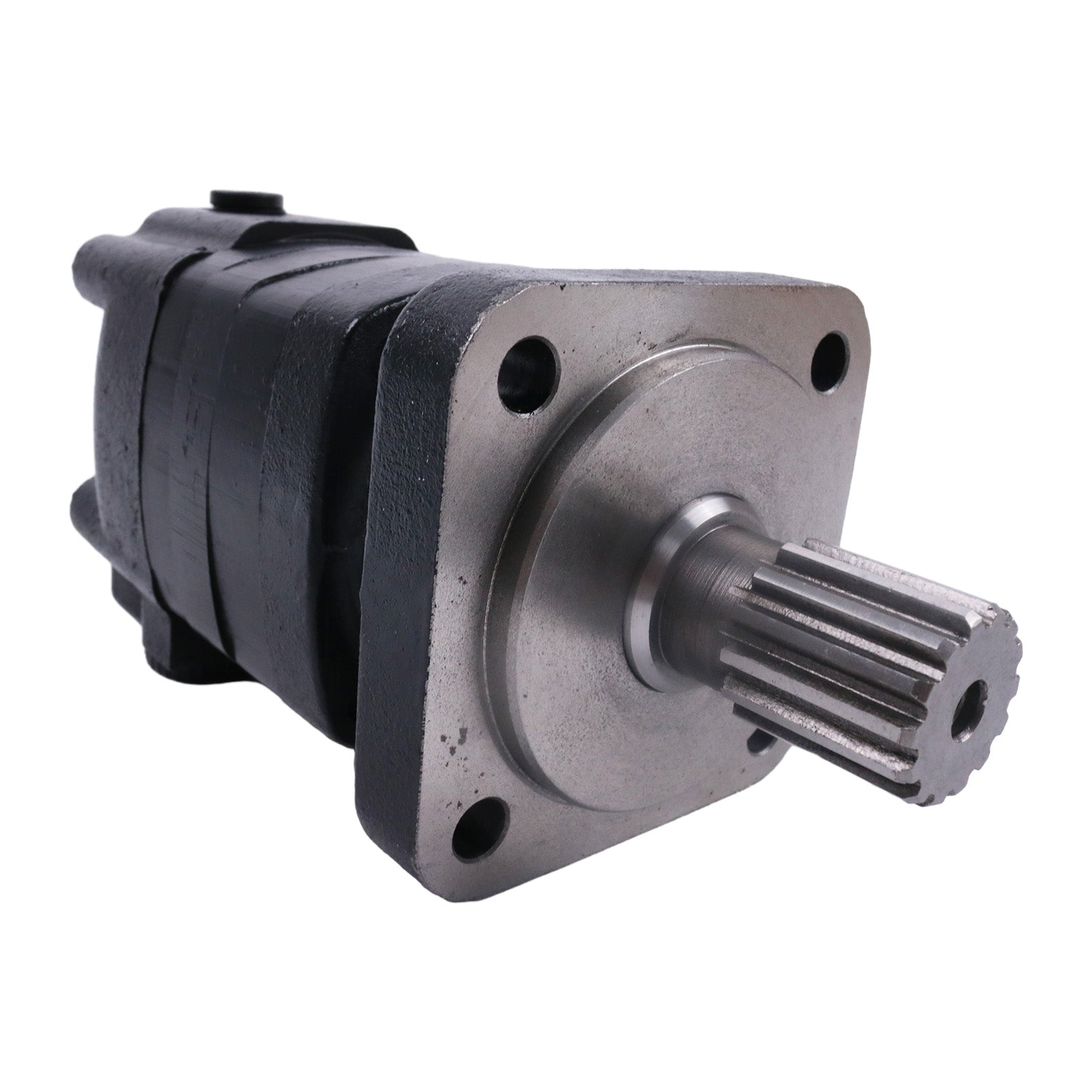

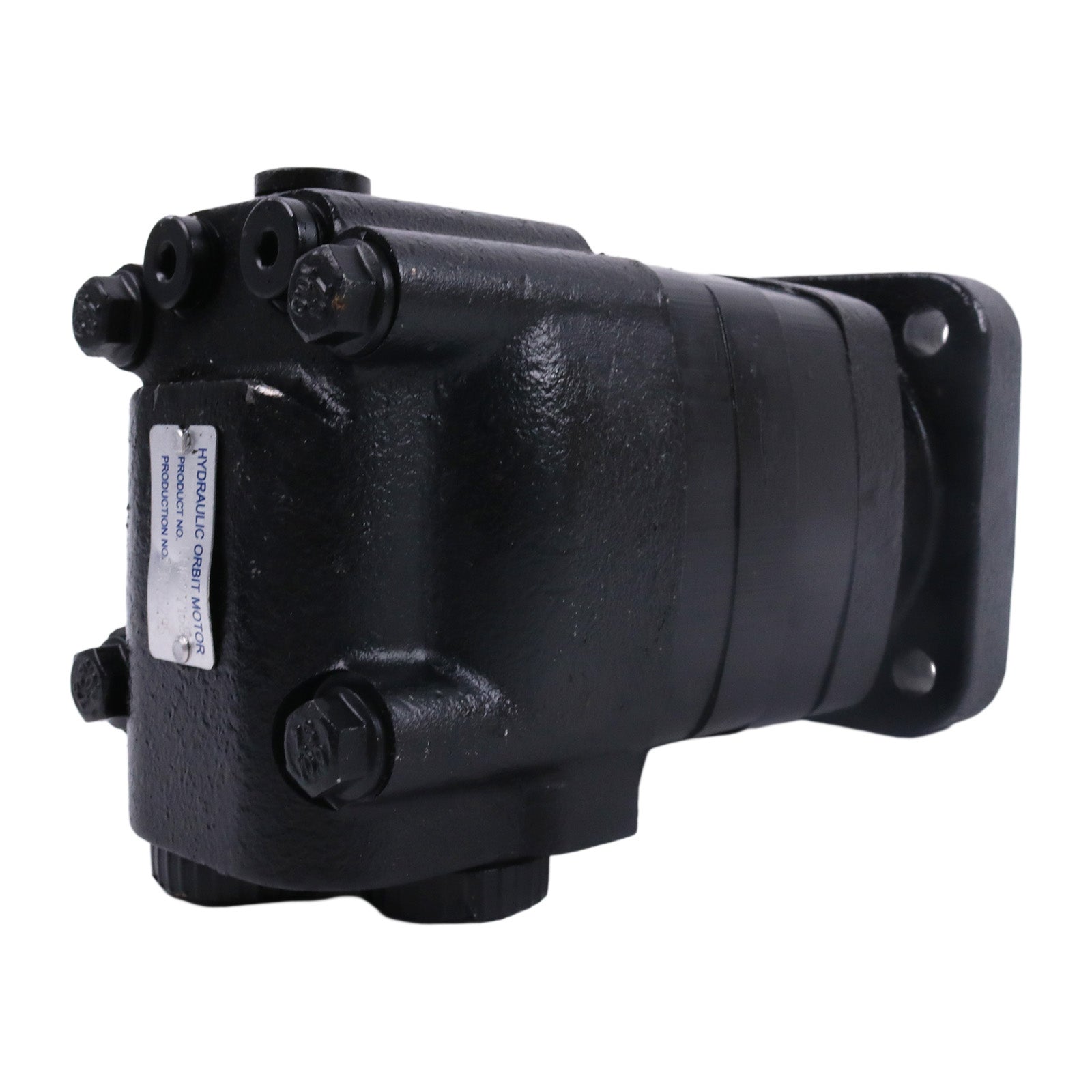

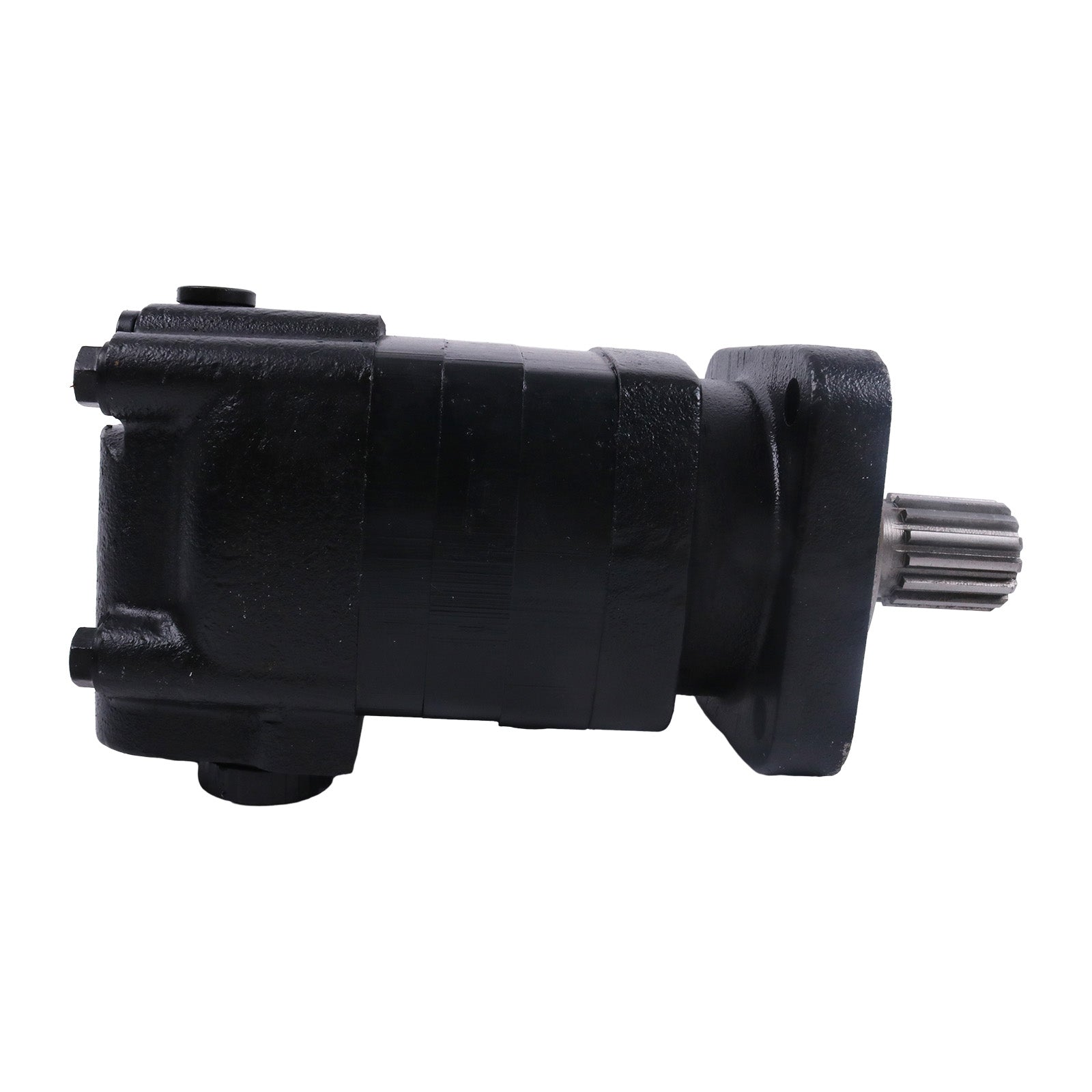

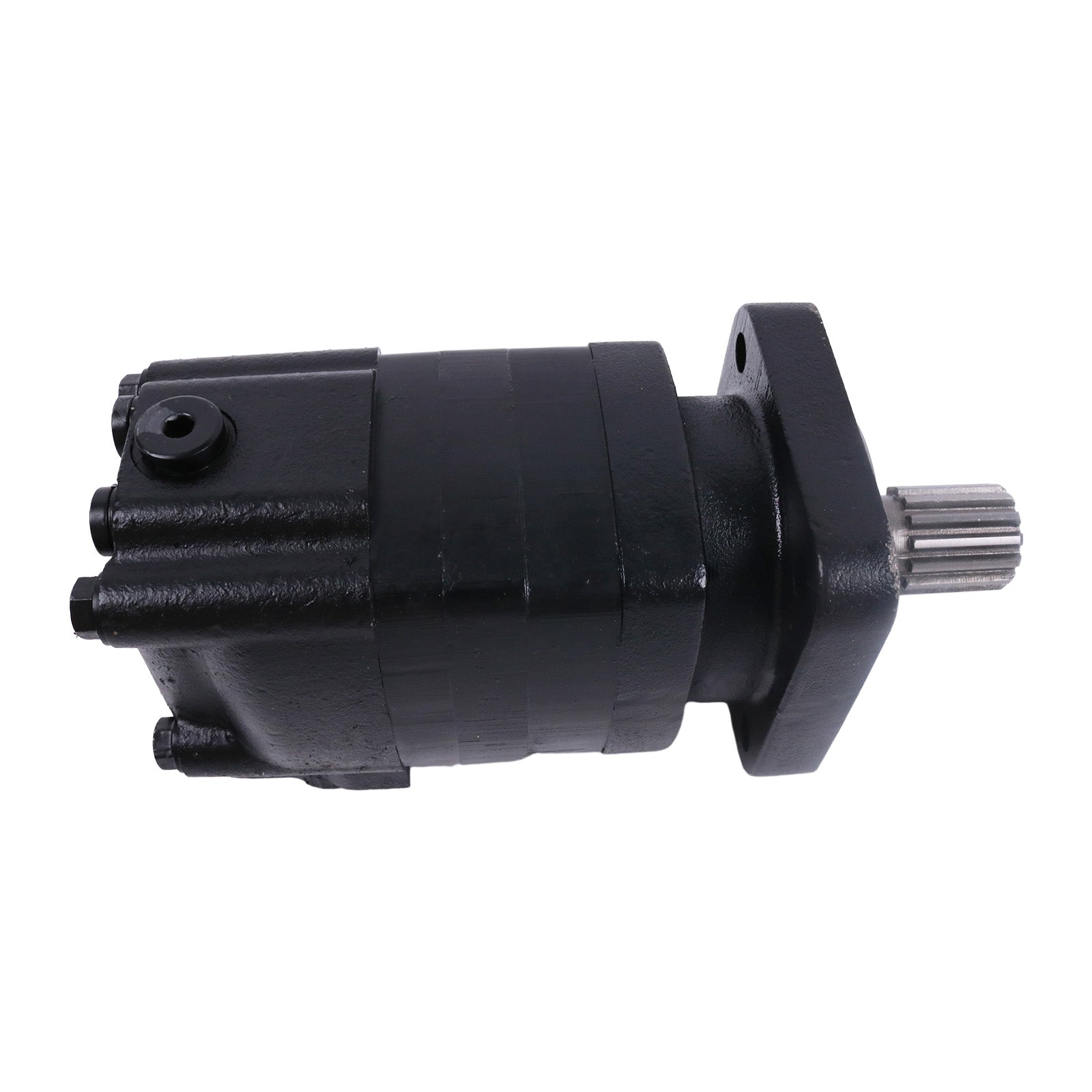

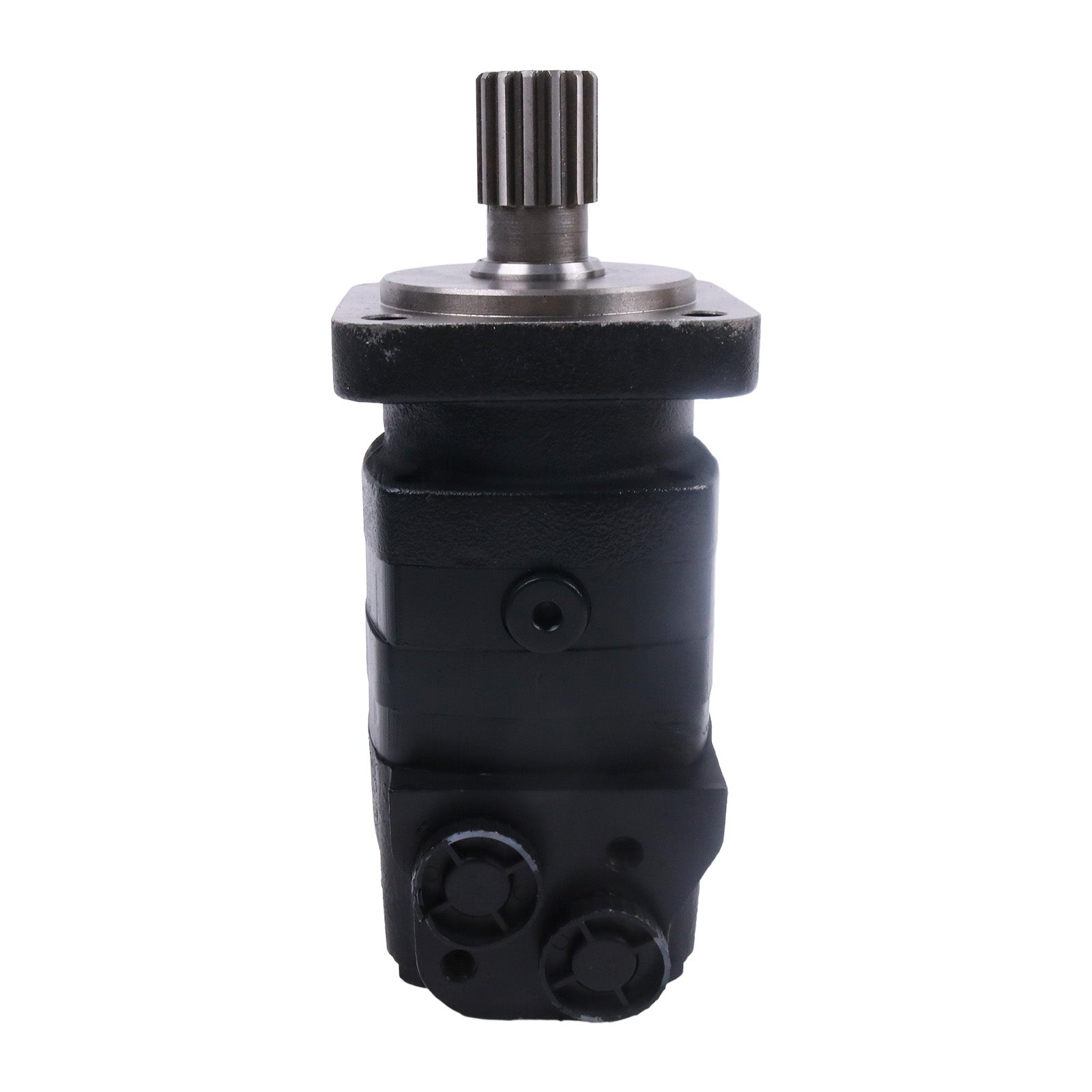

OMS100 Hydraulic Motor 151F0543 OMS100-151F0543 151F-0543

Part Number: 151F0543

Motorseries: O-Series

Basic Motor: OMS

Displacement: 100

Design Number: 3

Mounting Flange: Special

Mounting Thread Dimension: None

Shaft Style: Splined - 14T

Shaft Size: 1 1/4 inch ; M8 x 1,25 tap

Shaft Key: None

Port Size: Side port

Port Dimension: G 1/2

Drain Port Style: Standard

Drain port Dimension: G 1/4

Dust Seal: Standard

Shaft Seal: NBR - Standard

Front bearing: Tapered roller bearing

Rear bearing: Tapered roller bearing

Gear wheel set: Standard
