- Power Supply：DC(8-35)V
- Case Dimensionsï¼?09 x 166x 45(mm)
- Panel Cutoutï¼?86 x 141(mm)
- Operating Temp. ï¼?-25~70)â„?/span>

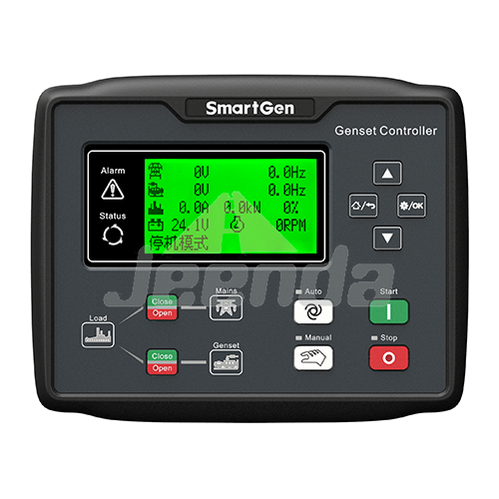

- HGM6100N controller has six variants:
- HGM6110N/6110NC/6110CAN: Automatic Start Module, it controls the generator to start/stop by remote start signal;
- HGM6120N/6120NC/6120CAN: Based on HGM6110N/6110NC/6110CAN, it adds mains AC monitoring and mains/generator automatic switching control (AMF), especially suitable for the automation system composed by mains and genset.
- Note1: HGM6110NC/6120NC has RS485 port, HGM6110N/6120N without.
- HGM6110CAN/6120CAN has CAN port, HGM6110N/6120N and HGM6110NC/6120NC without.
- Note2: HGM6110/6120 is taken as an example to describe in this manual.
- 132*64 LCD display with backlight, optional language interface (Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French), push-button operation;
- Acrylic screen, improved wearable and scratch resistance property;
- Silica-gel panel and keys can well adapt to a higher and lower temperature;
- With RS485 communication port, can achieve “three remoteâ€?functions via MODBUS protocol;
- With CANBUS port which can be connected to electronic injection with J1939, it not only can monitor frequently-used data (such as water temperature, oil pressure, rotated speed and fuel consumption, etc.) but also can control start, stop, high speed and low speed (controller with CANBUS port is needed) via CANBUS port.
- Adapt to 3P4W, 3P3W, 1P2W and 2P3W (120V/240V), 50Hz/60Hz AC power system;
- Can measure and display 3 phase voltage, 3 phase current, frequency, power parameter of mains/gens;
- Mains have functions of over/under voltage and lack of phase; Gens have functions of over/under voltage, over/under frequency, over current and over power;
- Precision measure and display of parameters about the engine,
