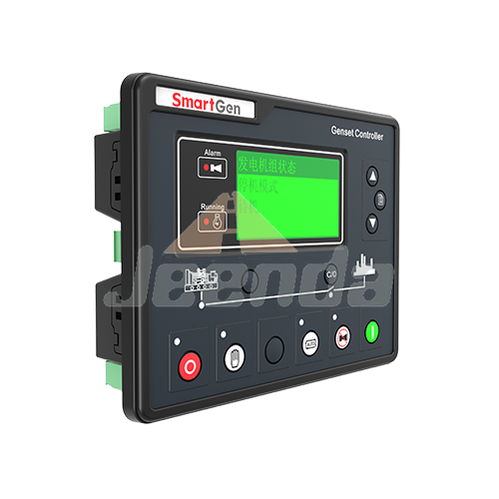

SmartGen HGM7210 Genset Controller DC Genset Controller
SmartGen HGM7210 Genset Controller DC Genset Controller
Regular price
$318.00 USD
Regular price
$410.00 USD
Sale price
$318.00 USD
Shipping calculated at checkout.
Technical Specifications:
- Function Item Parameter
- Display: LCD(132*64)
- Operation Panel: Silicon Rubber
- Language: Chinese & English & Others
- Digital Input: 7
- Relay Output: 8
- Analogue Input: 5
- AC System: 1P2W/2P3W/3P3W/3P4W
- Alternator Voltage: (15~360)V(ph-N)
- Alternator Frequency: 50/60Hz
- Monitor Interface: RS485
- Programmable Interface: USB/RS485
- DC Supply: DC(8-35)V
- Case Dimensions(mm): 197*152*47
- Panel Cutout(mm): 186*141
- Operating Temp.: (-25~+70)℃
- HGM7X10, Auto Start Module, controls genset to start or stop automatically by remote start signal.
- HGM7X20, Auto Main Failure, updates based on HGM7X10, especially for an automatic system composed by generator and mains.
- Main characteristics
- With ARM-based 32-bit CPU, highly integrated hardware, new reliability level;
- 132x64 LCD with backlight, multilingual interface (including English, Chinese or other languages) which can be chosen at the site, making commissioning convenient for factory personnel;
- Improved LCD wear-resistance and scratch resistance due to hard screen acrylic;
- Silicon panel and pushbuttons for better operation in the high-temperature environment;
- RS485 communication port enabling remote control, remote measuring, remote communication via ModBus protocol (controller with RS485 port only);
- Equipped with SMS (Short Message Service) function. When genset is alarming, the controller can send short messages via SMS automatically to max. 5 telephone numbers. besides, generator status can be controlled and checked using SMS (controller with GSM port only);
