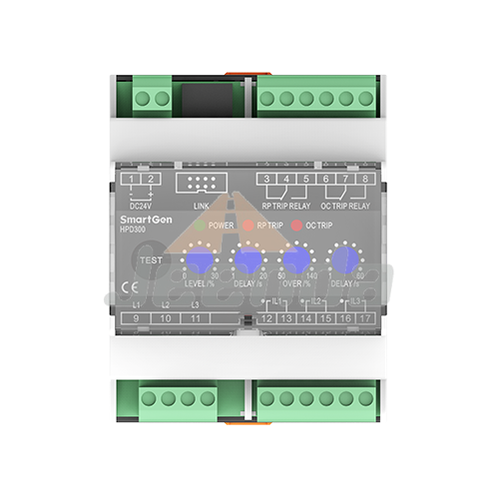

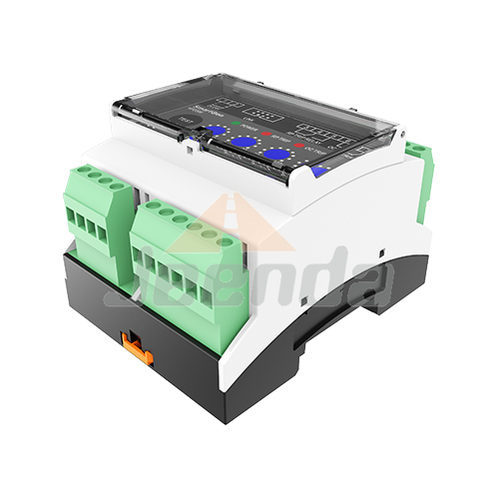

Marine Generator Control Module HPD300
HPD300 reverse power protection relay is widely used in the marine Genset field and land Genset field.
- Power Supply：DC(8~35)V
- Case Dimensions：89.7*71.6*60.7(mm)
- Operating Temp. ：(-25~+70)℃
- Weight：0.24kg
CHARACTERISTICS:
-
Suitable for 3-phase 4-wire, 3-phase 3-wire, single-phase 2-wire and 2-phase 3-wire systems with frequency 50/60/400Hz;
-
Collects 3-phase voltage, 3-phase current, frequency and power parameters.
-
An adjustable potentiometer allows for set value adjusting and delay value setting.
-
2 relay output;
-
One test button, test reverse power, over current and indicator.
-
Widely power supply range DC(8~35)V, suitable to different starting battery voltage environment;
-
35mm guide rail mounting;
-
Modular design, pluggable terminal, compact structure with easy installation.
