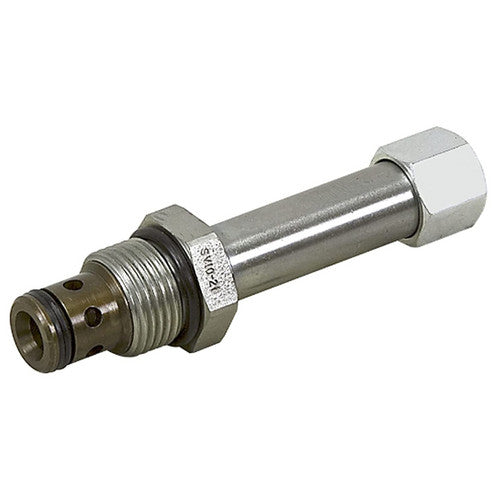

12V Solenoid Operated Cartridge Selector Valve SV10210N00 SV10-21-0-N-0 for Hydraforce
12V Solenoid Operated Cartridge Selector Valve SV10210N00 SV10-21-0-N-0 for Hydraforce
Prezzo di listino
$69.00 USD
Prezzo di listino
Prezzo scontato
$69.00 USD
Spese di spedizione calcolate al check-out.
Part Name: Valve Element
Manufacturing Part Number: SV10-21-0-N-0, SV10210N00
Application: For Hydraforce
Manufacturing Part Number: SV10-21-0-N-0, SV10210N00
Application: For Hydraforce
Specification:
Pressure rating: 207 bar (3000 psi)
Proof Pressure: 344 bar (5000 psi)
Burst Pressure: 779 bar (11300 psi)
Flow rating: 102 lpm (27 gpm)/ 34.4 bar (500 psi)
Maximum Internal Leakage: 3 drops/min
Operating fluid temperature: -40 to 100 °C (-40 to 212 °F)/-26 to 204 °C (-15 to 400 °F)/-54 to 107 °C (-65 to 225 °F)
Storage temperature: -40 to 70 °C (-40 to 160 °F)
Ambient Temperature: -40 to 70 °C (-40 to 160 °F)
Cavity: VC10-2, 10-size-2-way Cavities
Compatible Coils: 10 size D coils, 10 size E coils
Pressure rating: 207 bar (3000 psi)
Proof Pressure: 344 bar (5000 psi)
Burst Pressure: 779 bar (11300 psi)
Flow rating: 102 lpm (27 gpm)/ 34.4 bar (500 psi)
Maximum Internal Leakage: 3 drops/min
Operating fluid temperature: -40 to 100 °C (-40 to 212 °F)/-26 to 204 °C (-15 to 400 °F)/-54 to 107 °C (-65 to 225 °F)
Storage temperature: -40 to 70 °C (-40 to 160 °F)
Ambient Temperature: -40 to 70 °C (-40 to 160 °F)
Cavity: VC10-2, 10-size-2-way Cavities
Compatible Coils: 10 size D coils, 10 size E coils
