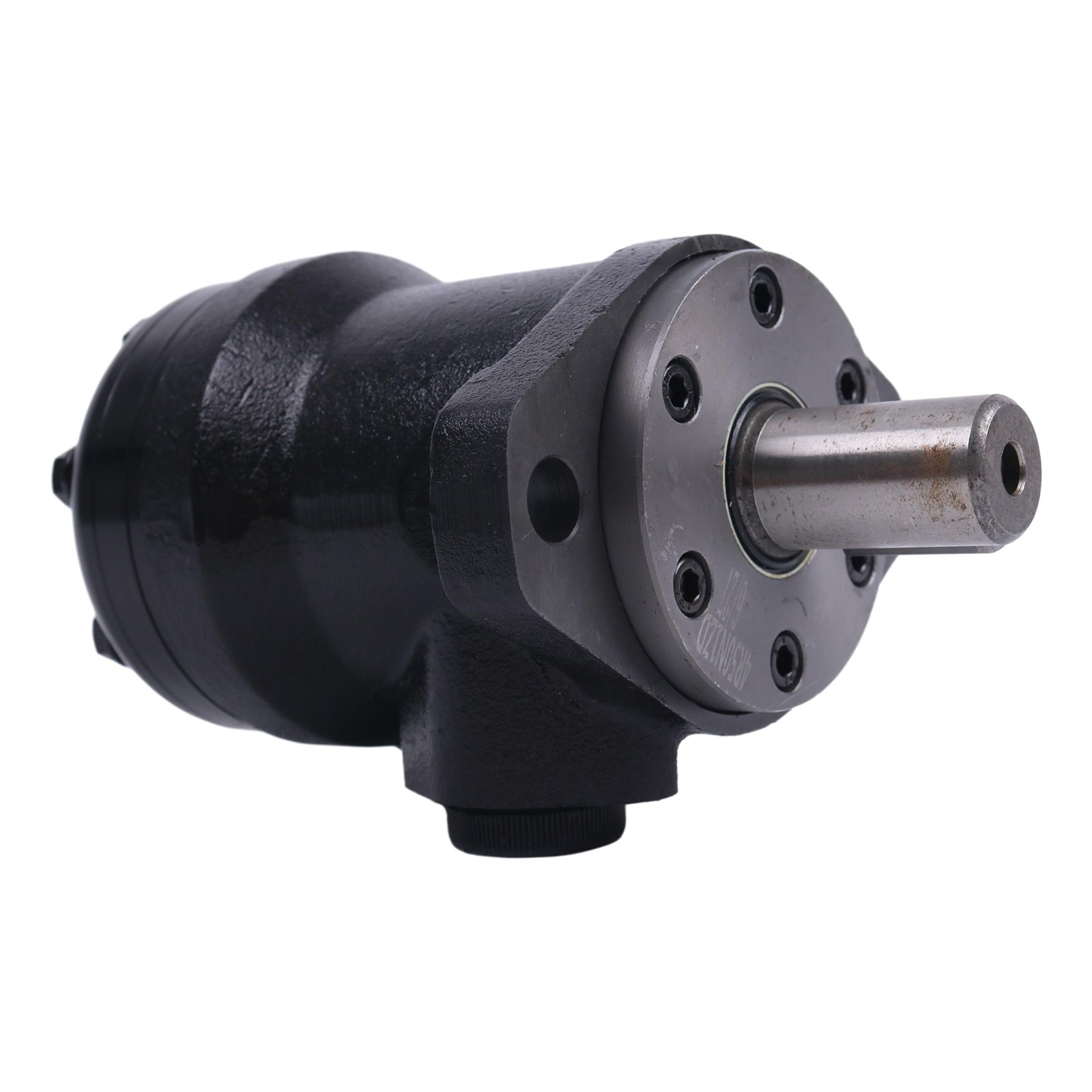

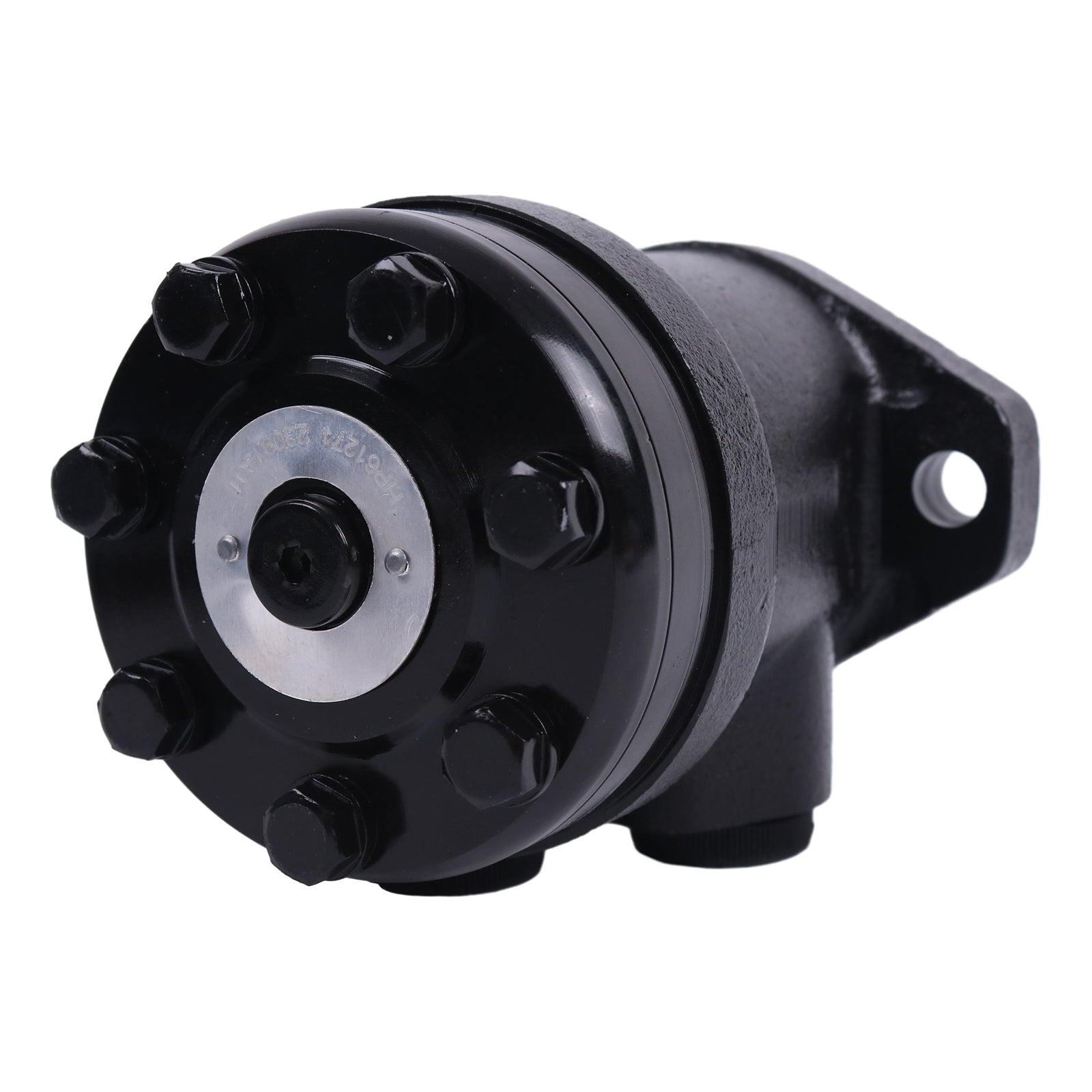

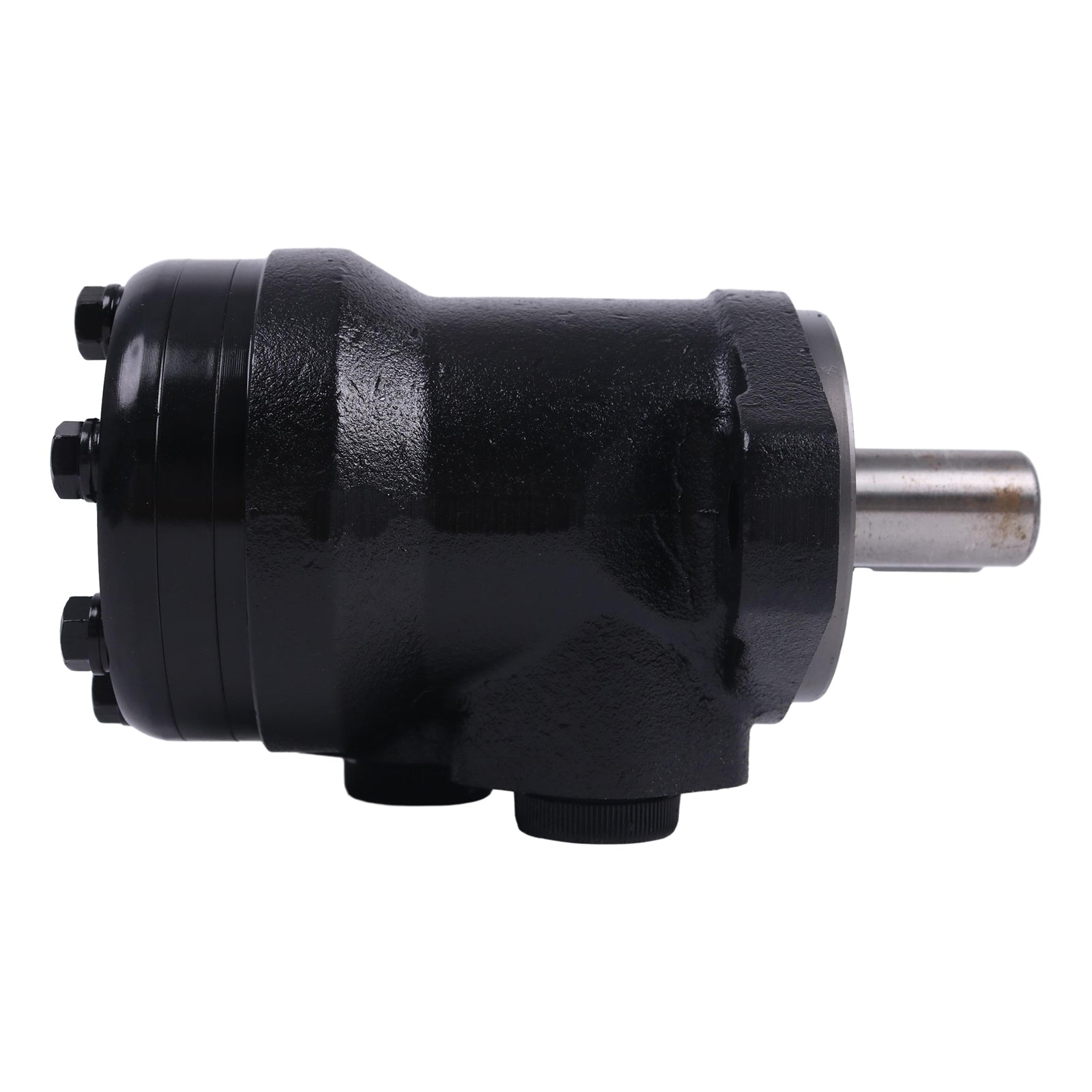

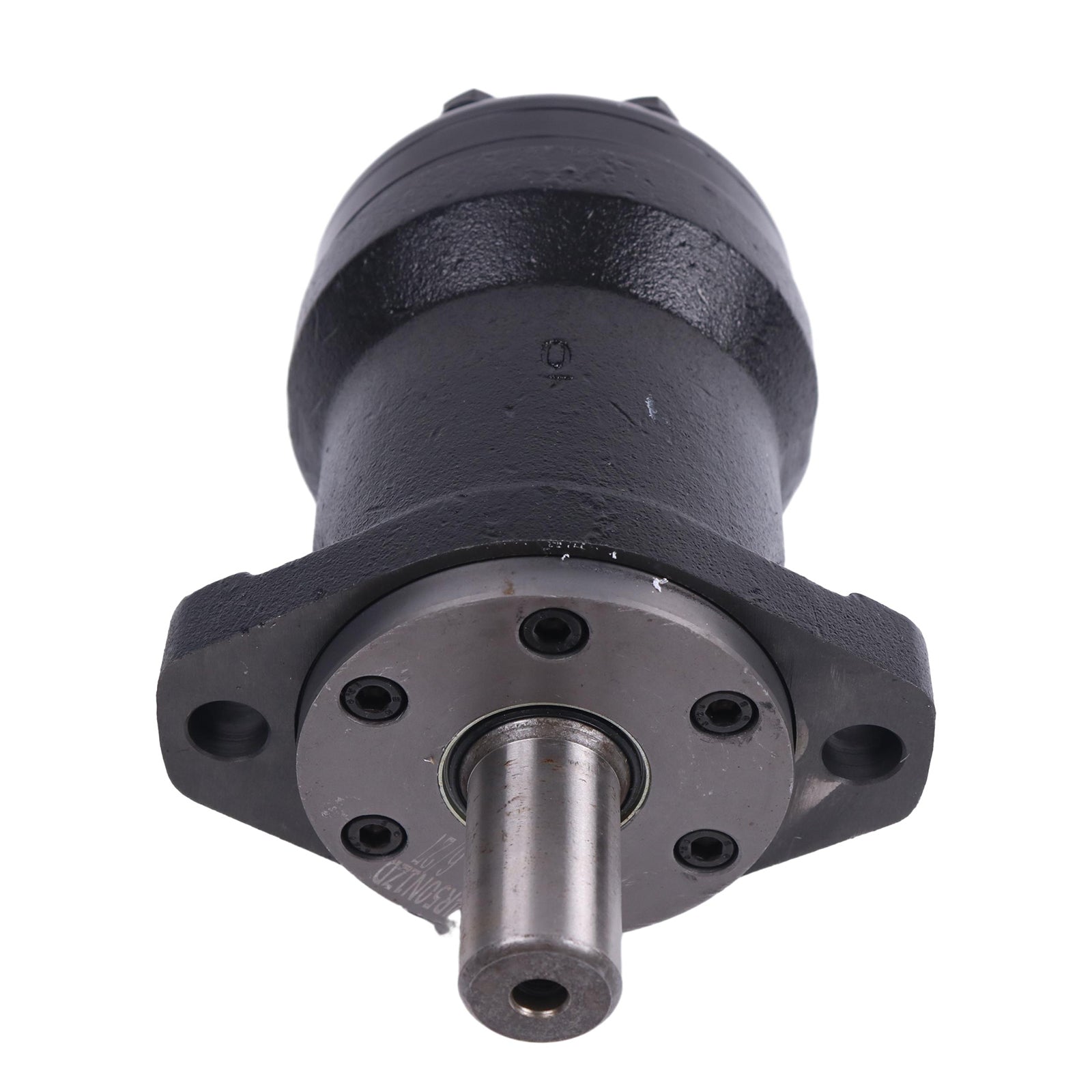

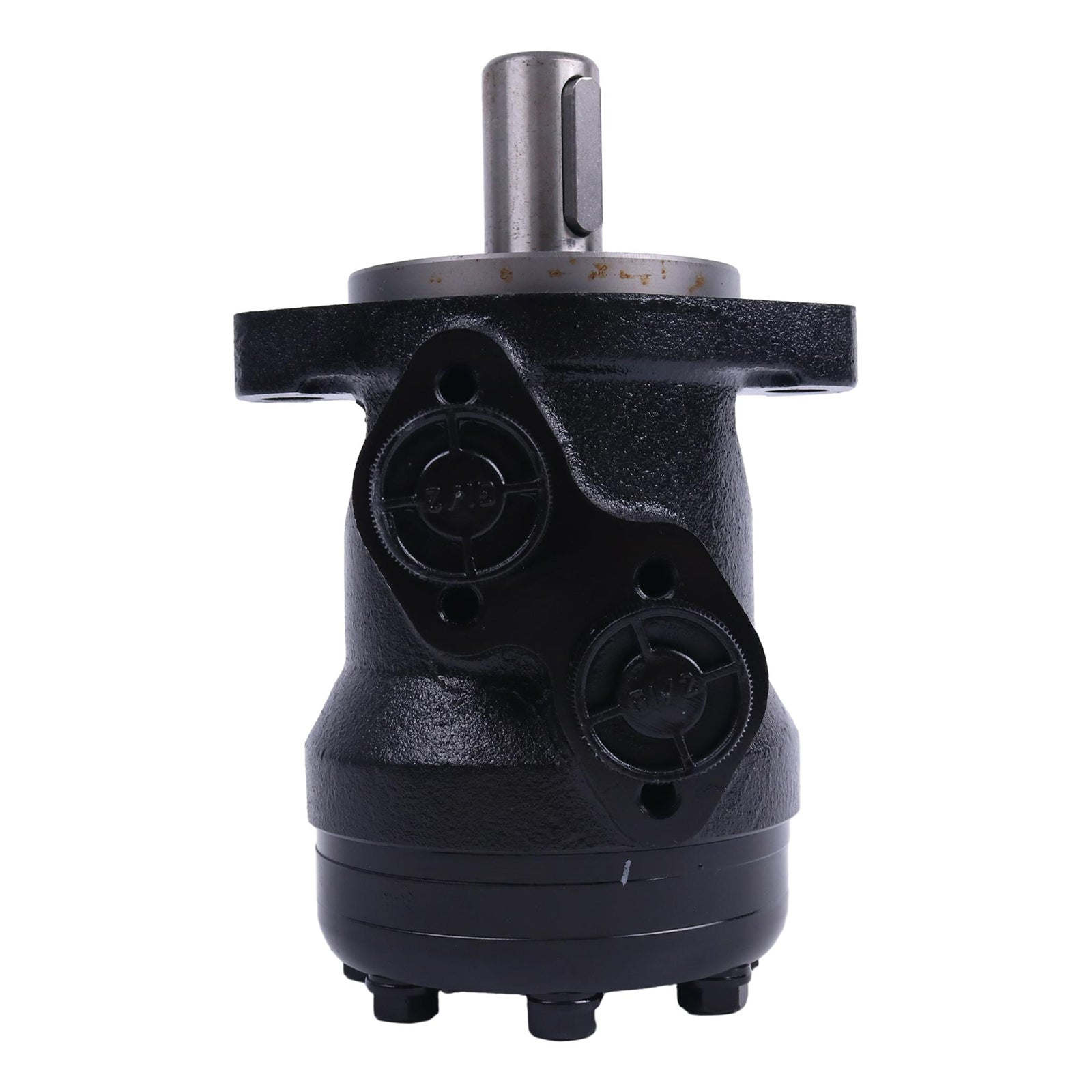

Part Name: Hydraulic Orbital Motor Manufacturing Part Number: OMR50 -151-0710, OMR x 50 - 11185537, 1510710
Specification:
Geometric displacement: 51.6cm³/[3.16in] Max speed cont: 775 rpm Max speed int: 970rpm Max torque cont: 100Nm/[890lbf in] Max torque int: 130Nm/[1150lbf in] Max output power cont: 7.0kW/[9.4hp] Max output power int: 8.5kW/[11.4hp] Max pressure drop cont: 140bar/[2030psi] Max pressure drop int: 175bar/[2540psi] Max pressure drop peak: 225bar[3260psi] Max oil flow cont: 40L/min Max oil flow int: 50L/min Max starting pressure with unloaded shaft: 10bar/[145psi] Min starting torque at max press drop cont: 80Nm/[710lbf in] Min starting torque at max press drop int: 100Nm/[890lbf in] Max inlet pressure cont: 175bar/[2540psi] Max inlet pressure int: 200bar/[2900psi] Max inlet pressure peak: 225bar/[3260psi] Max return pressure with drain line cont: 175bar/[2540psi] Max return pressure with drain line int: 200bar/[2900psi] Max return pressure with drain line peak: 225bar/[3260psi]
