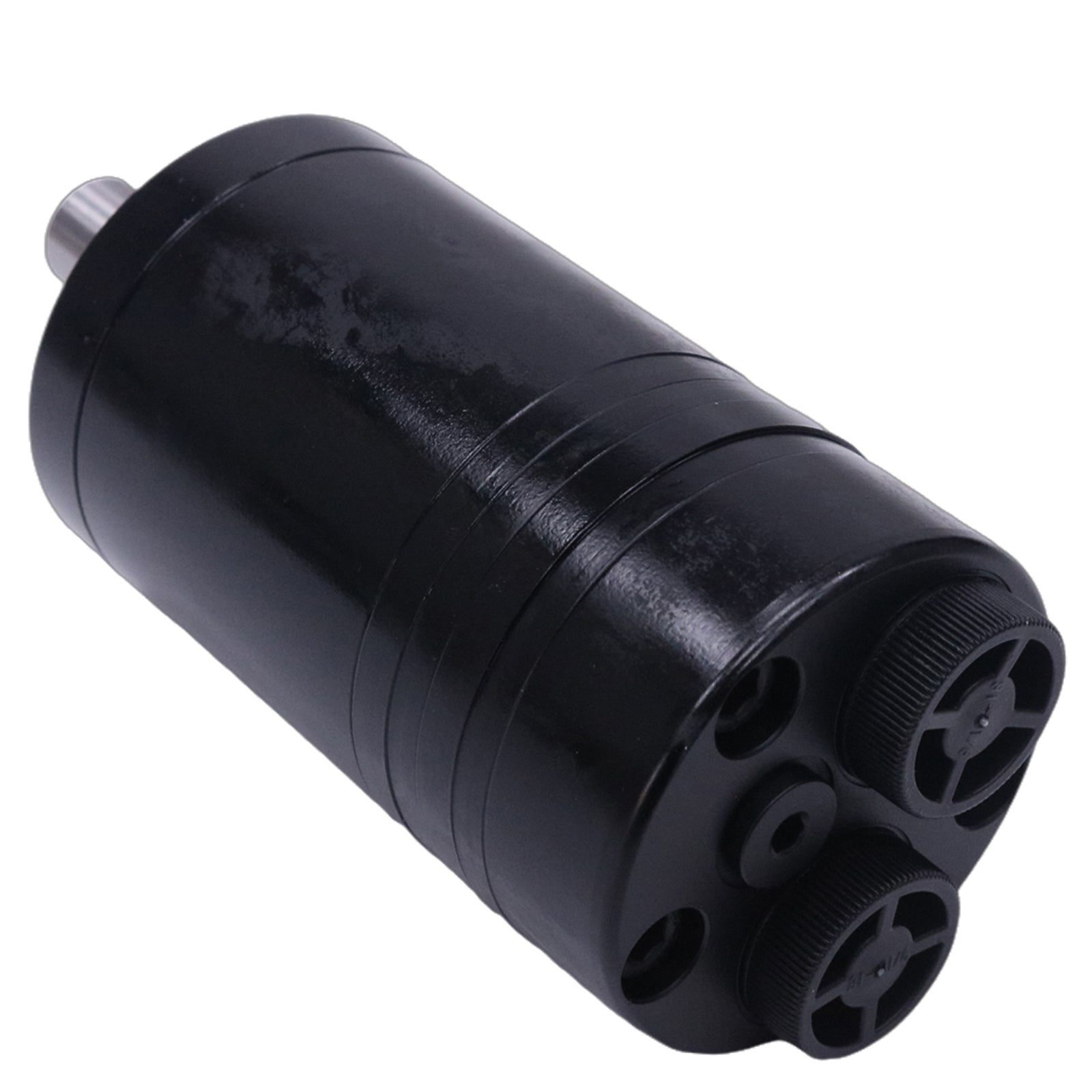

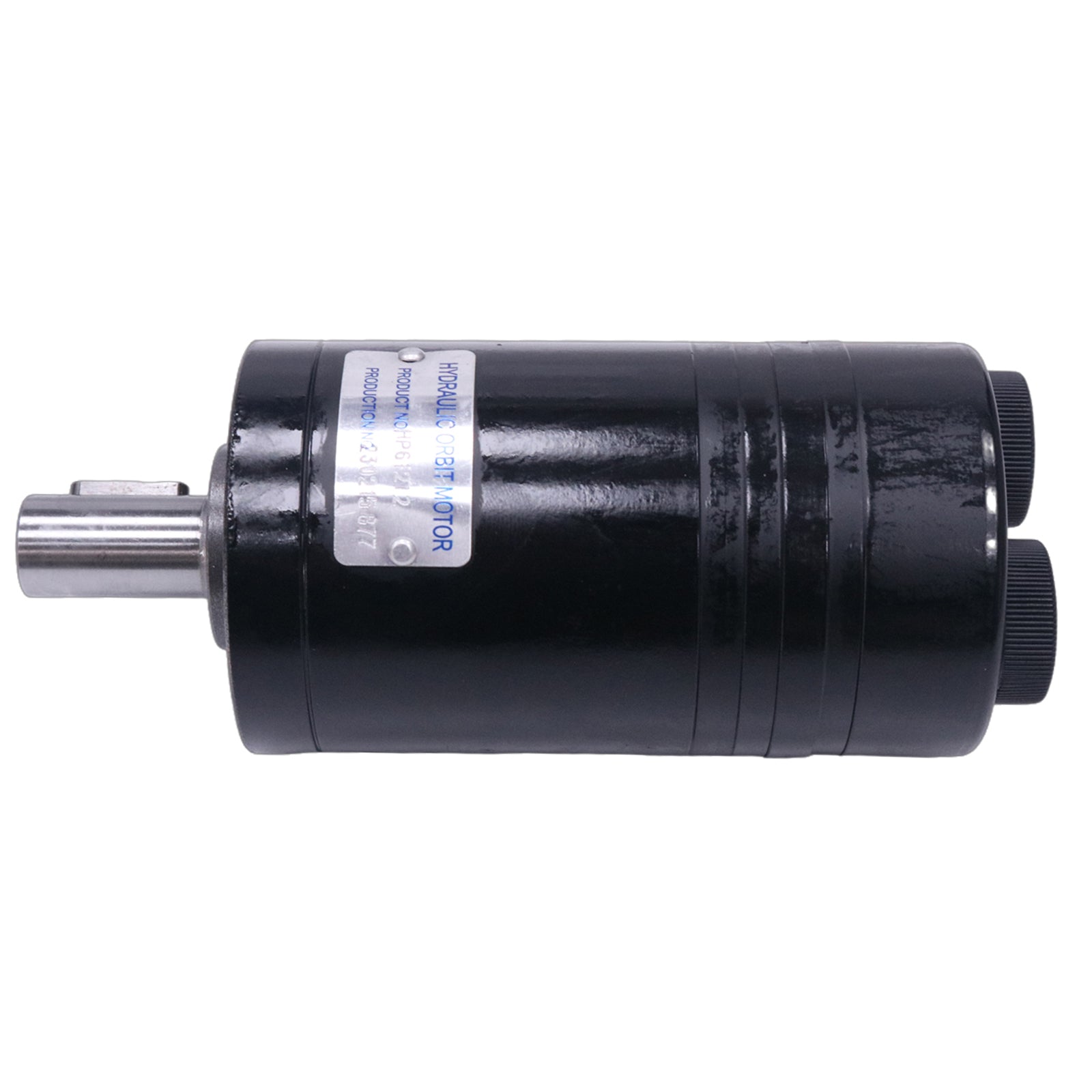

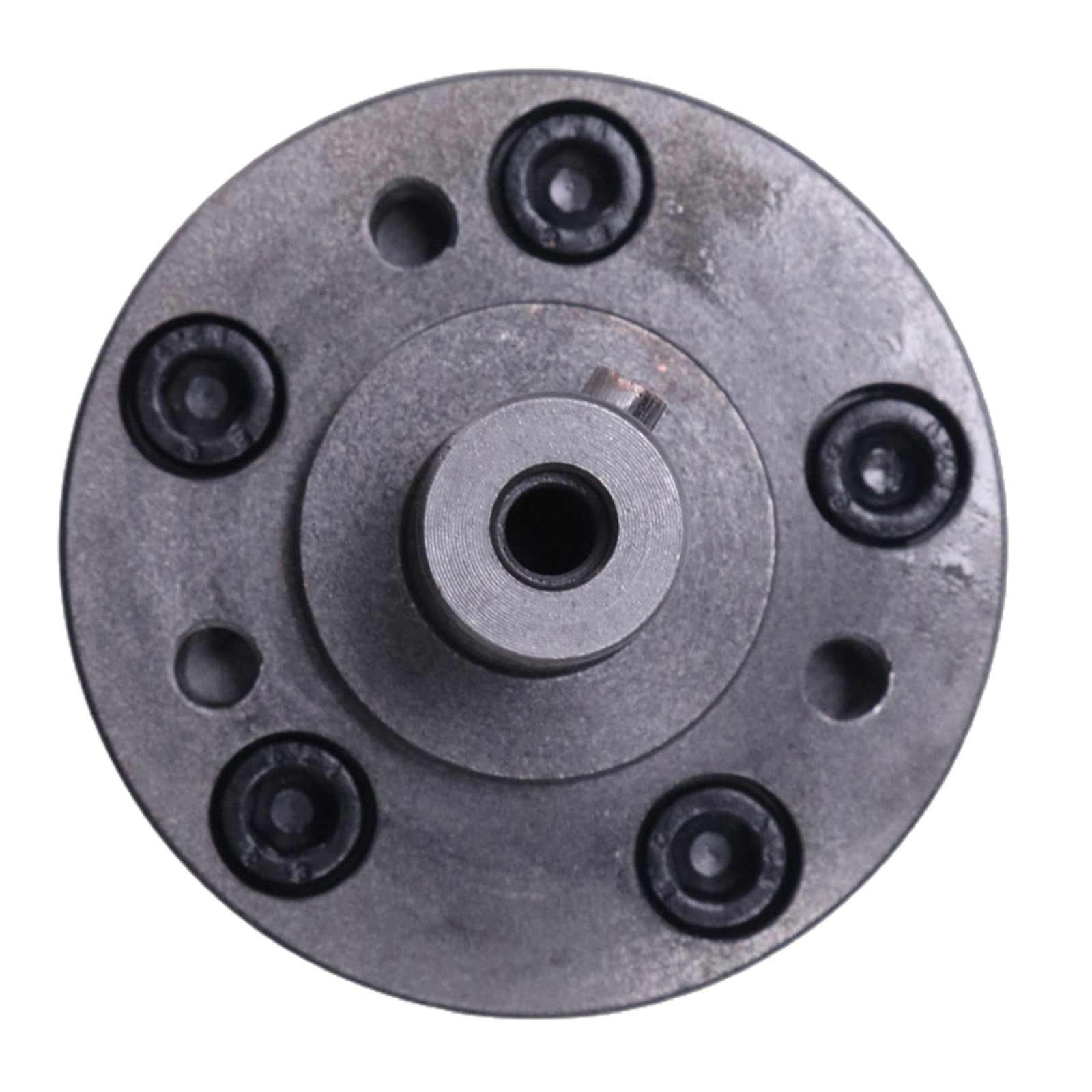

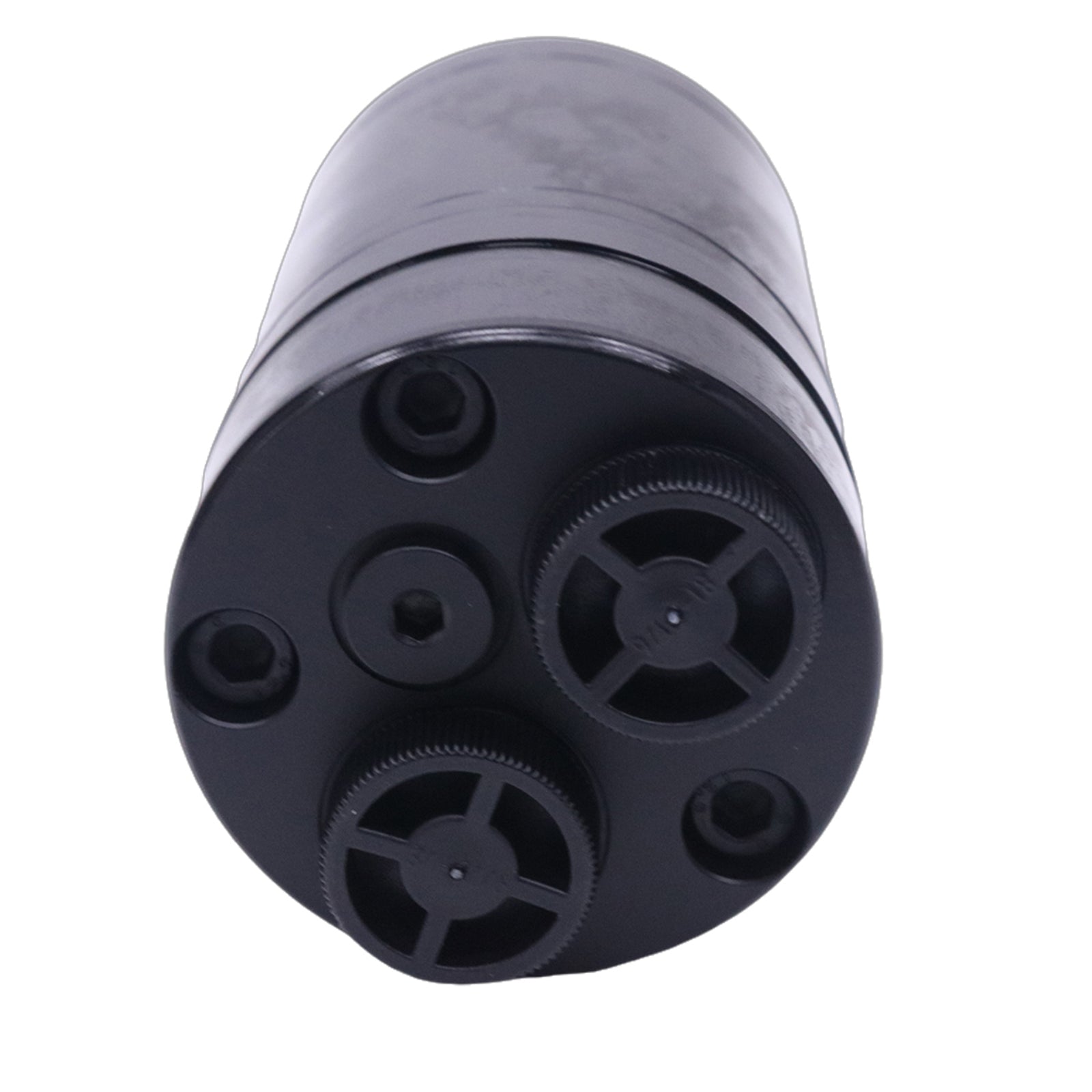

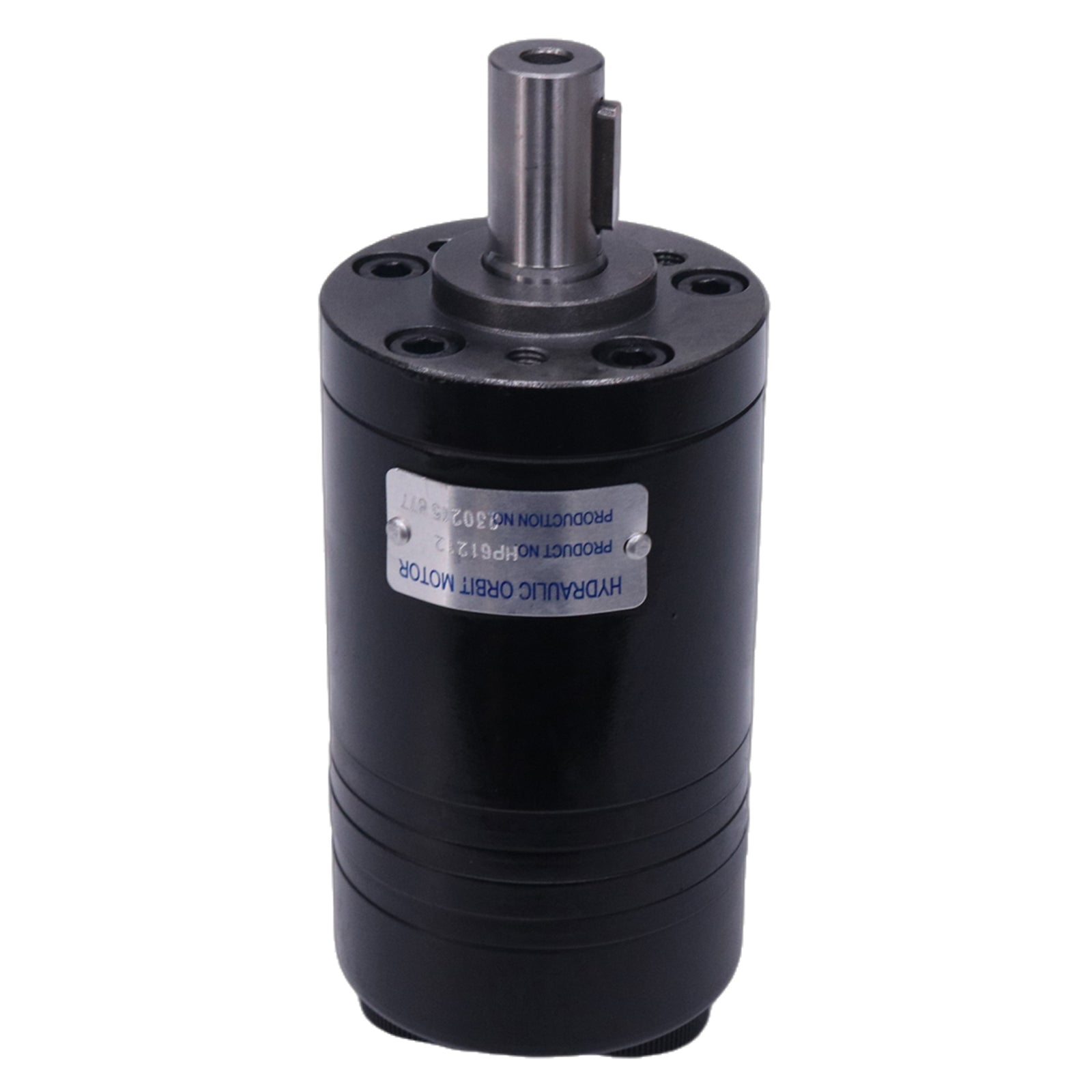

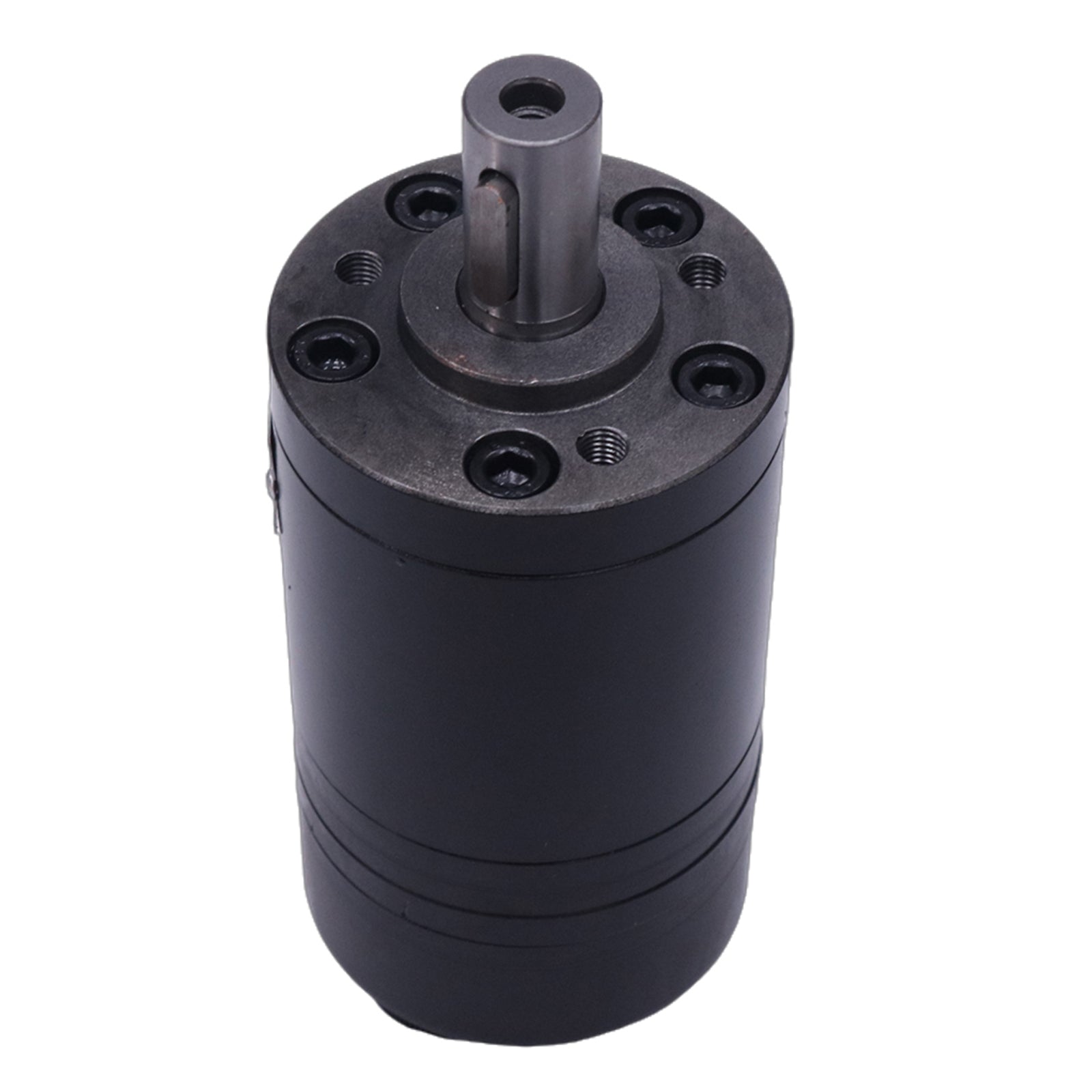

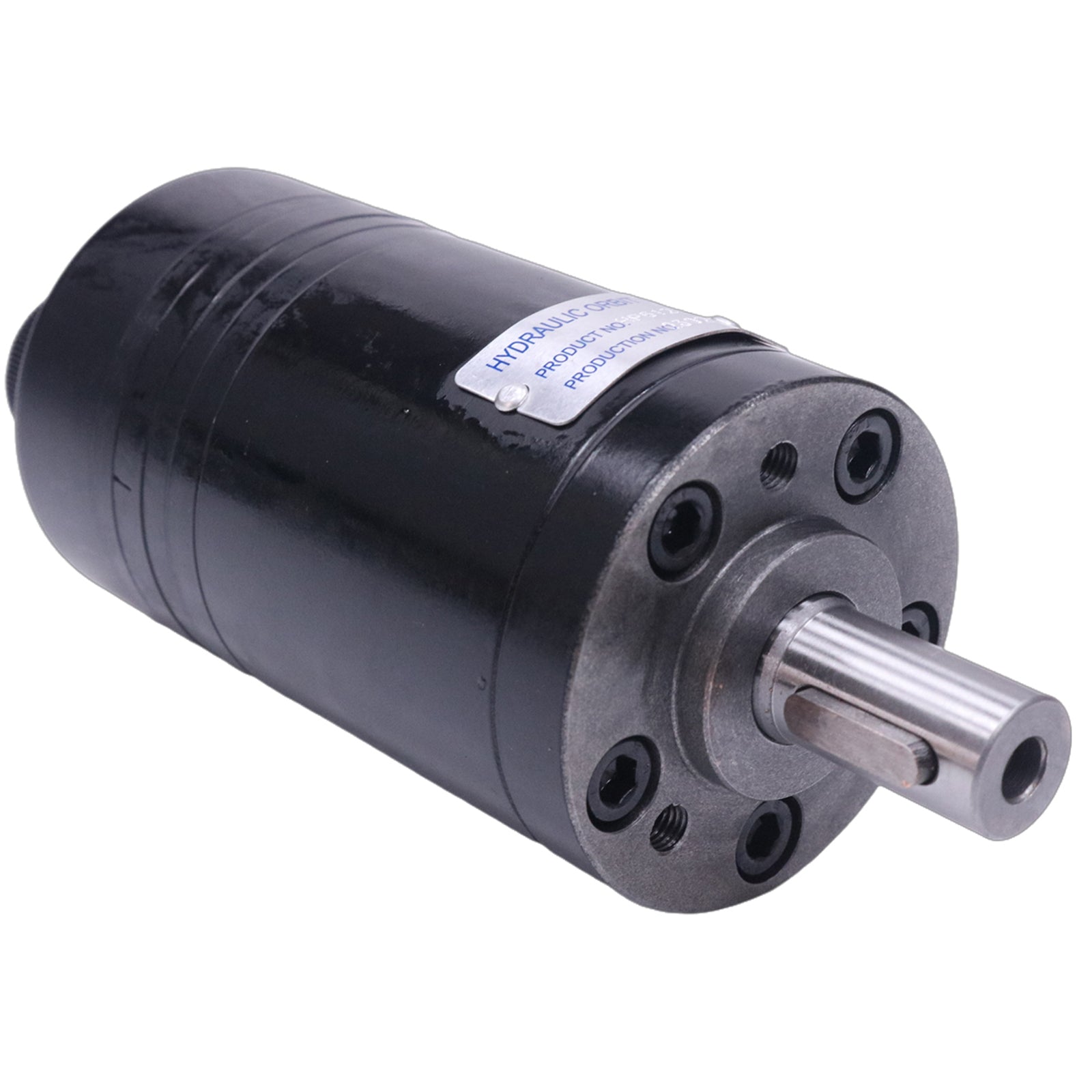

Part Name: Hydraulic Orbital Motor Manufacturing Part Number: OMM8 - 151G0048, 151G0048, OMM8151G0048 Specification:
Type: OMM
Motor Size: 8
Geometric displacement: 8.2cm³/[0.5in] Max speed cont: 1950 rpm Max speed int: 2450 rpm Max torque cont: 11Nm/[95lbf in] Max torque int: 15Nm/[135lbf in] Max output power cont: 1.8kW/[2.4hp] Max output power int: 2.6kW/[3.5hp] Max pressure drop cont: 100bar/[1450psi] Max pressure drop int: 140bar/[2030psi] Max pressure drop peak: 200bar[2900psi] Max oil flow cont: 16L/min Max oil flow int: 20L/min Max starting pressure with unloaded shaft: 4bar/[60psi] Min starting torque at max press drop cont: 7Nm/[60lbf in] Min starting torque at max press drop int: 10Nm/[90lbf in] Max inlet pressure cont: 140bar/[3050psi] Max inlet pressure int: 175bar/[3630psi] Max inlet pressure peak: 225bar/[4350psi] Max return pressure with drain line cont: 140bar/[2030psi] Max return pressure with drain line int: 175bar/[2540psi] Max return pressure with drain line peak: 225bar/[3050psi]
