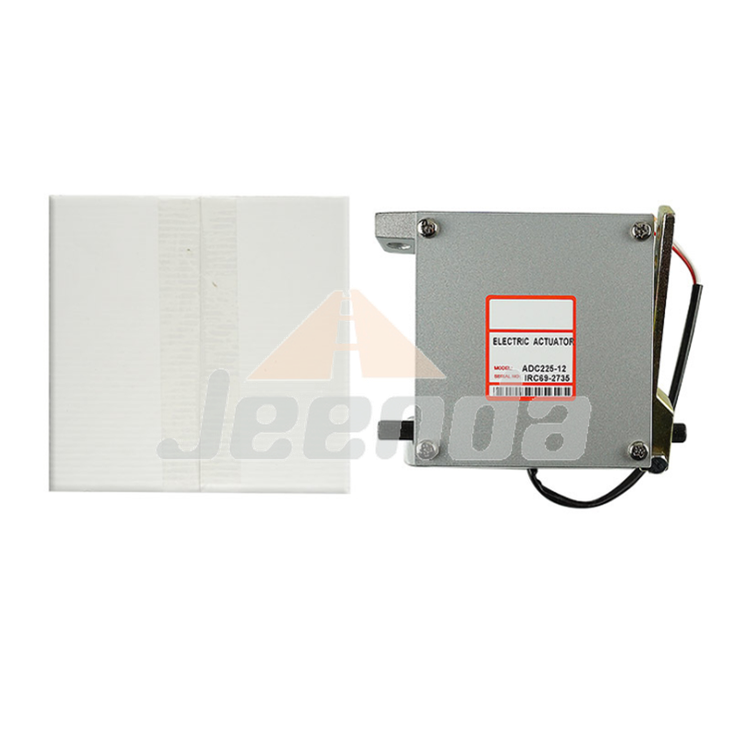

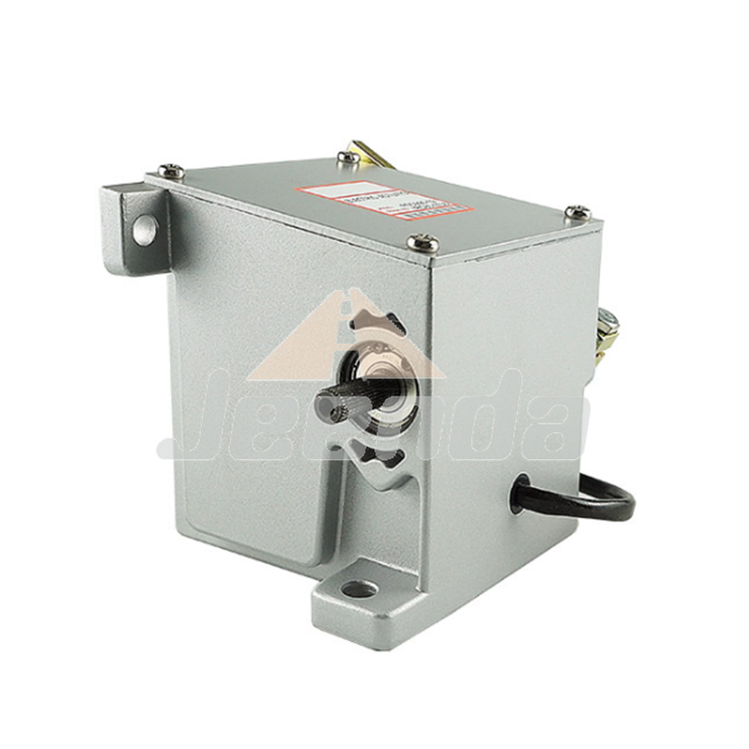

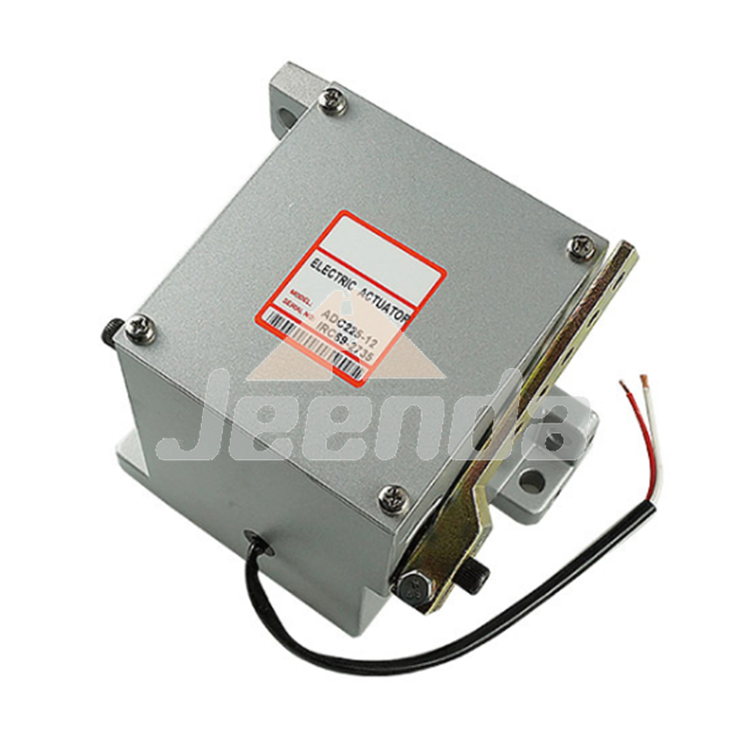

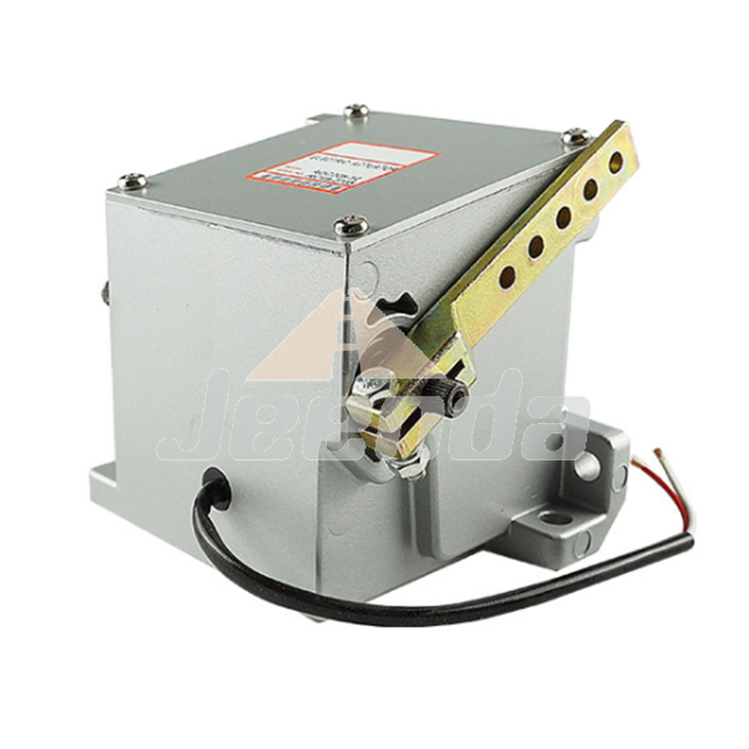

Free Shipping Electric Actuator ADB ADC225-12V for Generator Governor Actuator

Part Number:ADC225-12V

The 225 Series Electric Actuator is a rotary output, linear torque, and proportional servo. The electromechanical actuator is typically used as an engine fuel control positioning device. An internal spring provides a fail-safe operation of the fuel that is de-energized by forcing the actuator to turn off the position. This design combines fast operation, multi-voltage use, wider rotation angles, and proven reliability. Actuators can be powered directly from 12 and 24 volt battery power.

The actuator typically operates faster than comparable devices, so it provides a more stable and fast response to transient conditions. Applications include fuel injection pumps, engines with or without mechanical governors, rotary pumps, and large and medium-sized gaseous fuels. The 25 degree rotation extension is applied to a wider range of engines.

• Easy installation
• Universal design
• Built-in return spring
• Fast response transient
• Multiple mounting locations
• 2.2lb.ft. torque
• 25° rotation
