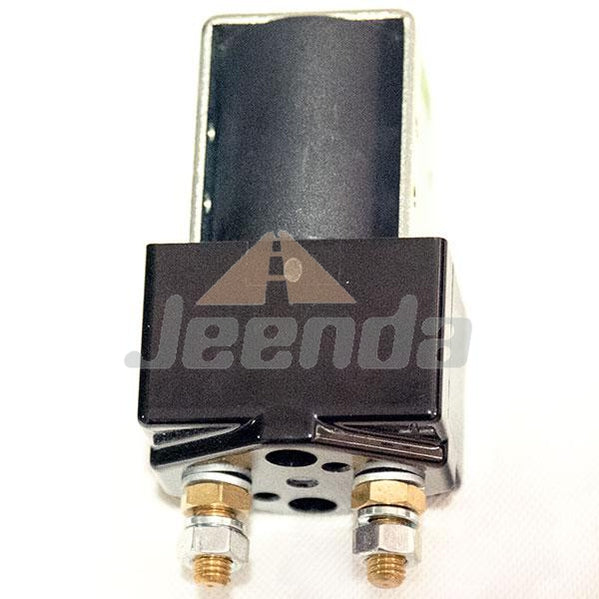

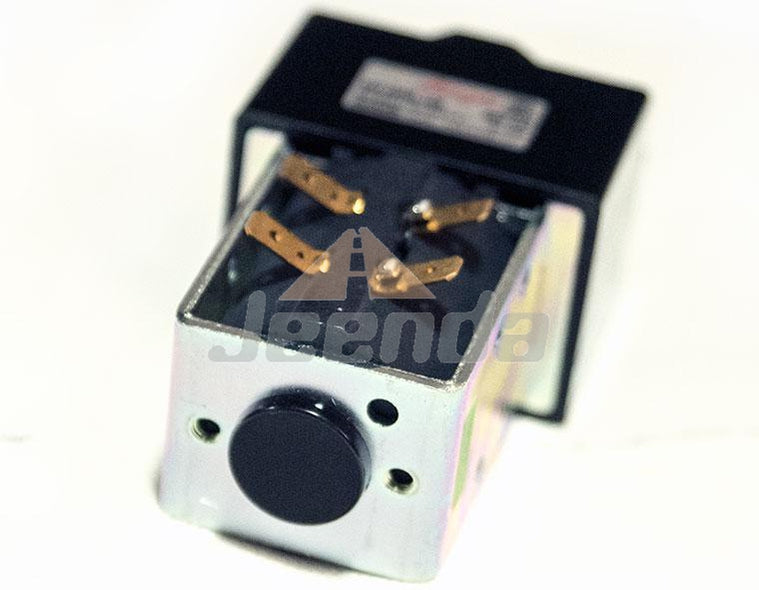

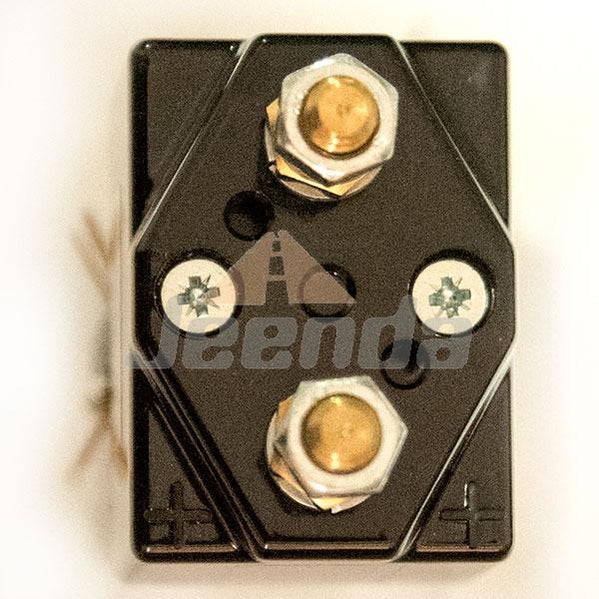

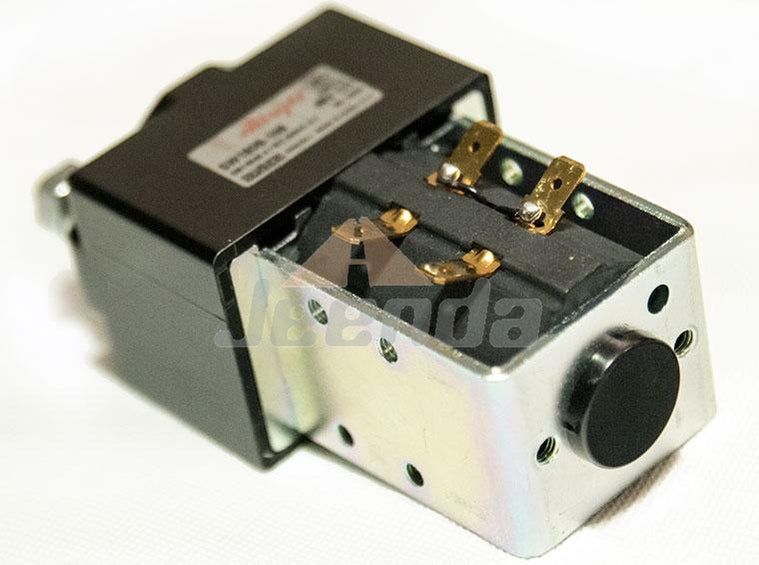

Part Number:SW180 48V 200A
Ated Current - 200 Amps
Voltage Coil Options – 72V
Double Pole, Changeover Contacts Magnetic Blowouts
Coil Power – 11 to 15W
Rated Voltage of Contact Circuit - 6 to 80 Volts DC
Dielectric Voltage Strength - 50Hz 1000V AC 1min
Current Volt Drop of Main Contact at 100A - Not above 80mV
Operating time, Contact Makes & Contact Brakes - >30ms
Mechanical Life - 100 thousand times
Electric Life - 20 thousand times
Weight 5 lbs
The SW180 / SW180B series contactors have been designed for direct current loads, particularly for motors used on electric vehicles such as industrial trucks, airport tractors, and electric forklift, etc.
SW180 / SW180B UL recognized DC contactors are used in both battery powered vehicles and power distribution systems. This contactor is rated 200A for resistive loads (Power System) and 150A for inductive/capacitive loads (electric motors).
