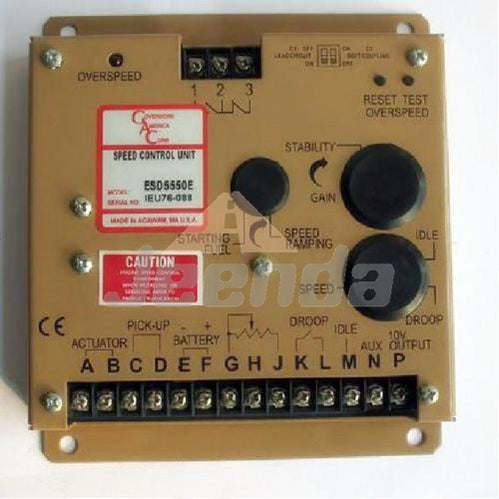

GAC Speed Governor Speed Controller ESD5550E

PERFORMANCE

Isochronous Operation/Steady State Stability

¡À0.25% or better

Speed Range/Governor

1K-7.5K Hz.continuous

Speed Drift with Temperature

¡À1% Maximum

Idle Adjust CW

60% of set speed

Idle Adjust CCW

Less than 1200 Hz.

Droop Range

1-5% regulation

Droop Adj. Max. (K-L Jumpered)

400 Hz., ¡À75Hz.per 1.0 A Change

Droop Adj. Min. (K-L Jumpered)

15 Hz., ¡À6 Hz.per 1.0 A Change

Speed Trim Range

¡À200 Hz.

Remote Variable Speed Range

500-7.5 Hz.or any part thereof

Terminal Sensitivity

J

100 Hz., ¡À15 Hz/Volt @ 5.0 K Impedance

L

735 Hz., ¡À60 Hz/Volt @ 65 K Impedance

N

148 Hz., ¡À10 Hz/Volt @ 1 Meg. Impedance

P

10V DC Supply @ 20 ma Max.

Speed Switch Adjustment Range

1000-10000 Hz.

ENVIRONMENTAL

Ambient Operating Temperature Range

-40¡ã to +85¡ãC

Relative Humidity

Up to 95%

All Surface Finishes

Fungus Proof and Corrosion Resistant

INPUT POWER

Supply

12 or 24V DC Battery Systems (Transient and Reverse Voltage Protected)

Polarity

Negative Ground (Case Isolated)

Power Consumption

50 ma continuous plus actuator current

Actuator Current Range @ 25¡ãC - (Inductive Load)

Min.

2.5 Amps

Max.

10 Amps continuous

Speed Sensor Signal

0.5-120 Volts RMS

Speed Switch Relay Contacts(N.O. And N.C.)

10 Amps

RELIABILITY

Vibration

1G @ 20-100Hz.

Testing

100% Functionally Tested

PHYSICAL

Weight

1.8 lbs. (0.82kg)

Mounting

Any Position, Vertical Preferred
