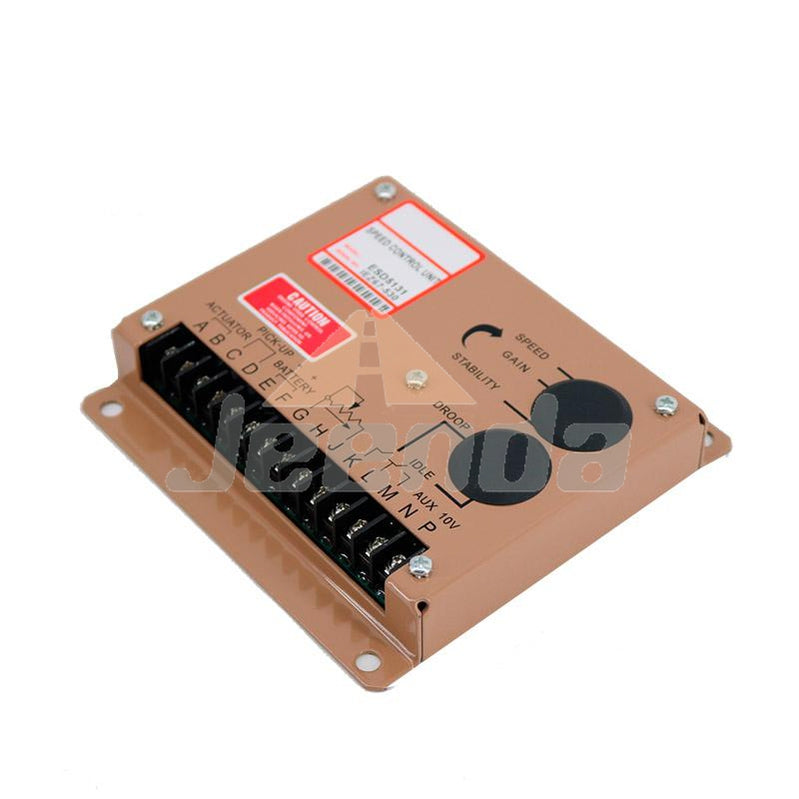

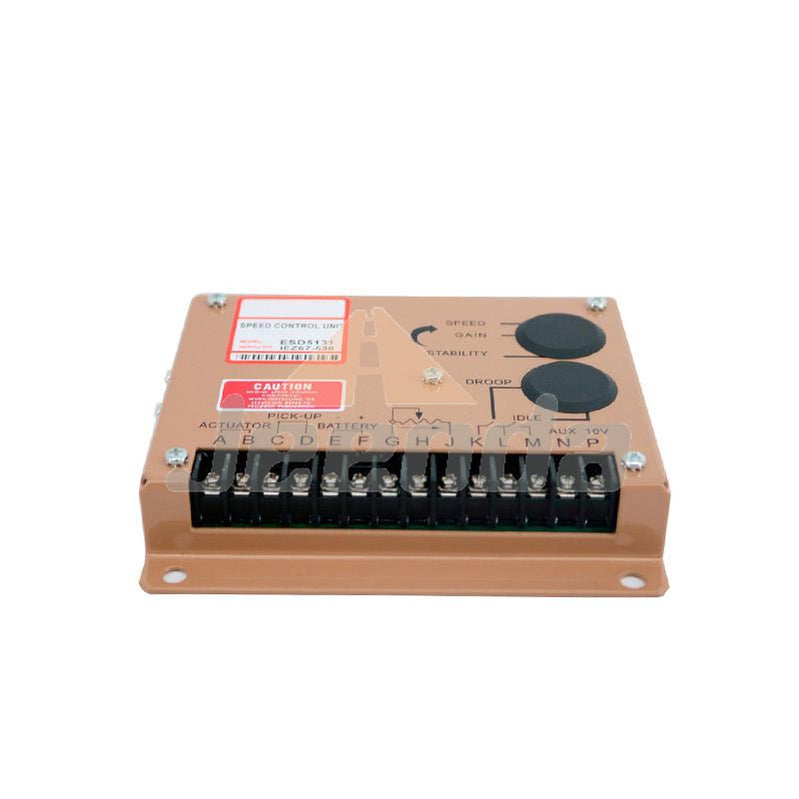

Generator Parts Engine Speed Controller Module ESD5131

Generator Governor Electronic Speed Control Board ESD5131 is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dedicated control equipment. If water, mist, or condensation may come in contact with the controller, it should be mounted vertically. This will allow the fluid to drain away from the speed control unit.

Generator Governor Electronic Speed Control Board ESD5131

• Speed stability: Better than ±0.25%
• Speed range:1Khz ~ 7.5Khz
• Thermostability: Max ±1%
• Idle adjustment:160 ± 20Hz ~ Rated speed 95%

Power Input

• Voltage;12V DC 24V DC
• Output:50mA
• Signal of speed sensor:0.5 ~ 120V RMS
