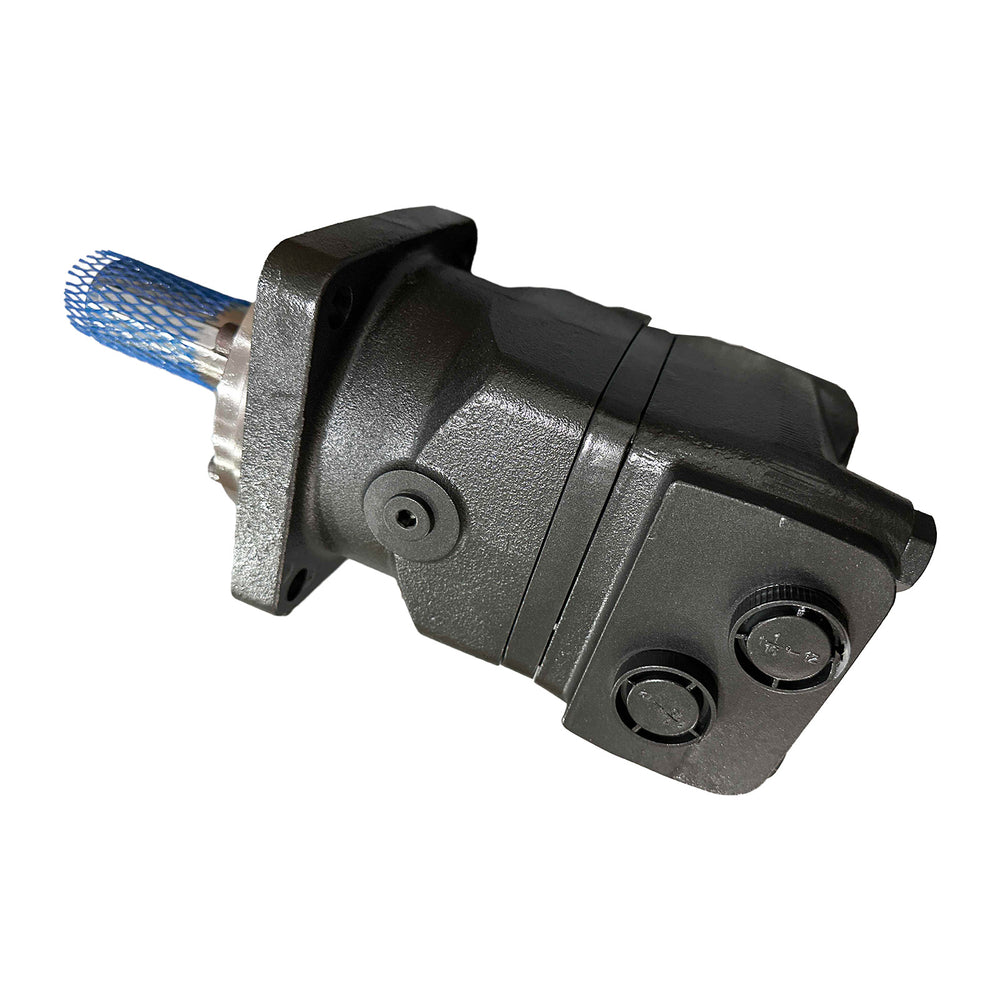

Hydraulic Motor OMT250 151B2052 OMT250-151B2052 151B-2052

Part Number: 151B2052, OMT250-151B2052, 151B-2052

Motorseries: O-Series

Basic Motor: OMT

Displacement: 250

Mounting Thread Dimension: None

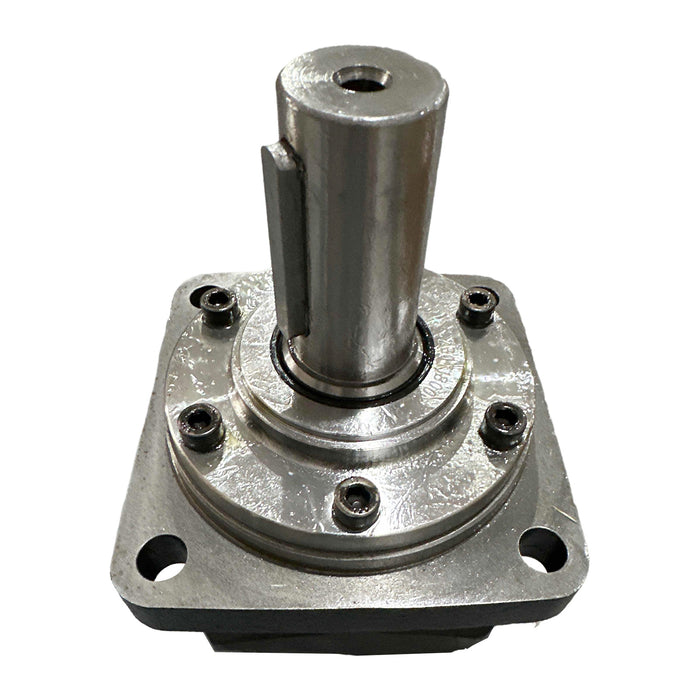

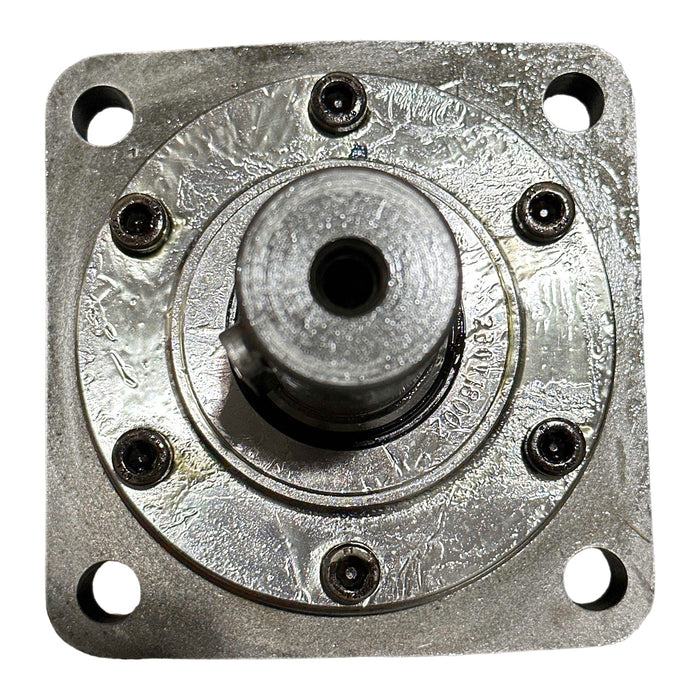

Shaft Style: Cylindrical

Shaft Size: 1 1/2 inch ; 3/8-16 UNC tap

Shaft Key: 3/8 x 3/8 x 2 1/4 inch

Port Size: Side port

Port Dimension: 1 1/16 - 12 UN

Drain Port Style: Standard

Drain port Dimension: 9/16 - 18 UNF

Dust Seal: Standard

Shaft Seal: NBR - Standard

Front bearing: Tapered roller bearing

Rear bearing: Tapered roller bearing

Gear wheel set: Standard
