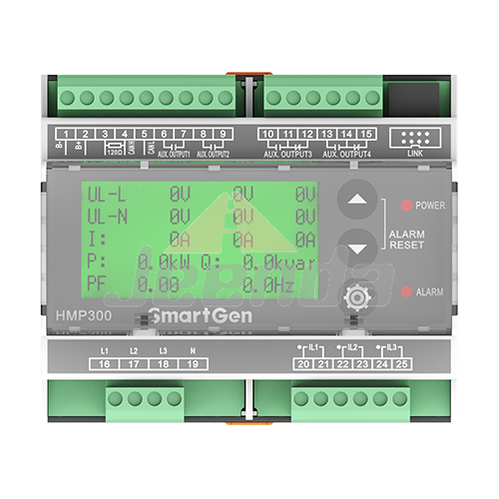

Marine Generator Control Module HMP300

Marine Generator Control Module HMP300

HMP300 power Integrated protection module integrates digitization, intelligentization and network technology which are used for collecting generator-set data (voltage, current, power, and frequency) and related action output for data errors to protect the device. It fit with LCD display, optional Chinese and English language interface, and it is reliable and easy to use.

• Power Supply：DC(8~35)V
• Case Dimensions：107.6 x 89.7 x 60.7(mm)
• Operating Temp. ：(-25~+70)℃
• Weight：0.30kg

CHARACTERISTICS:

1. 132x64 LCD display with backlight, selectable language interface (Chinese and English), push-button operation.

2. Equipped with LINK communication port; Through LINK interface on PC, data and parameters can be monitored and adjusted.

3. Equipped with CANBUS port, which can connect with the HMC9000/HMC6000 module to realize power and engine data collecting and display at the same time.

4. Differential protection function and controller will issue related alarm information after differential protection is active.

5. Protections for over/under voltage, over/under frequency, reverse power, overpower and over current.

6. Harmonic test function and each phase voltage/current harmonic distortion rate can be tested.

7. Suitable for 3-phase 4-wire, 3-phase 3-wire, single-phase 2-wire, and 2-phase 3-wire systems with frequency 50/60Hz.

8. Collects and shows 3-phase voltage, 3-phase current, frequency and power parameters.
