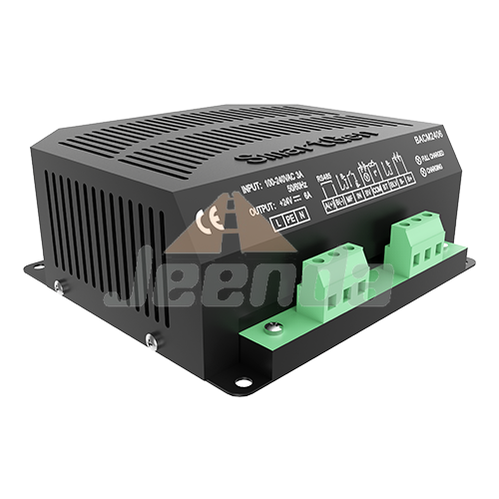

SmartGen BACM2406 Battery Charger

BACM2406 series battery charger is intelligent and multi-function which is specially designed to meet the charging characteristics of the lead-acid engine starter batteries. BACM2406 battery chargers are divided into 2 types according to the battery voltage: BACM2406 (suitable for 24V). Both of their maximum charge currents is 6A.

PERFORMANCE AND CHARACTERISTICS:

• 1. Switch power supply structure, wide input AC voltage range, small size, lightweight, high-efficiency rate;
• 2. Users can select an automatic two-stage charging process or automatic three-stage charging process as needed. Both the two charging process is carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
• 3. Built-in PFC circuit can calibrate the power factor above 0.99;
• 4. Built-in current protective circuit for overcurrent protection, short-circuit protection and reverse connection protection. The output will be recovery automatically after the failure is removed.
• 5. Battery voltage detection ports can detect the battery voltage in real-time.
• 6. Battery low voltage output port; It will output low level immediately after the battery voltage has fallen below the set value for preset delay.
• 7. Temperature sensor port allows for monitoring the battery temperature in real-time and temperature compensation function which can prevent the battery temperature is too high effectively.
• 8. Mains failure port; It will output low level immediately when the AC input is interrupted.
• 9. Standard RS485 communication port.
• 10. BACM2406 charger is suitable for 24V battery；rated current：6A；
• 11. LED display: Full charged indication (Green light) and charging indication (Red light)
