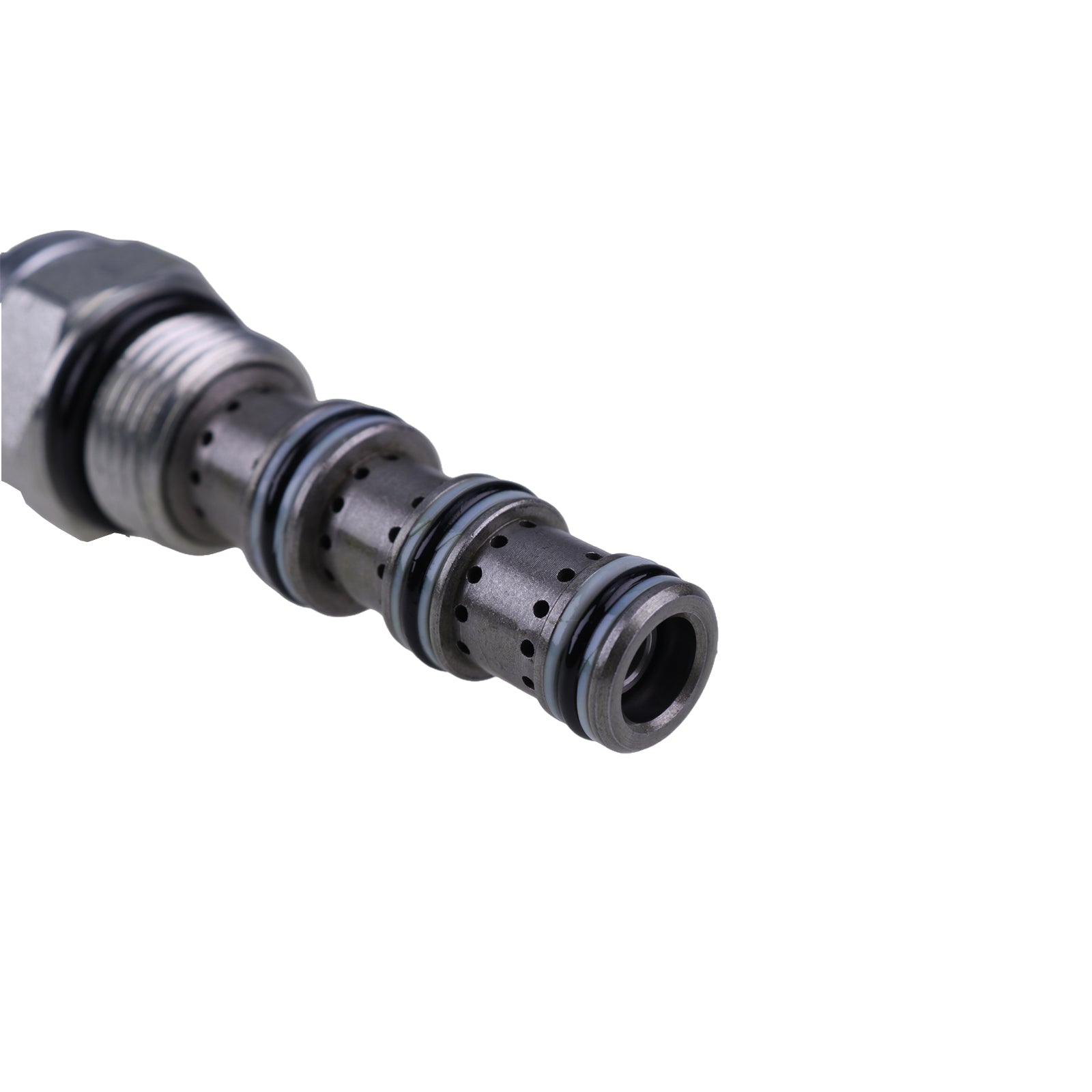

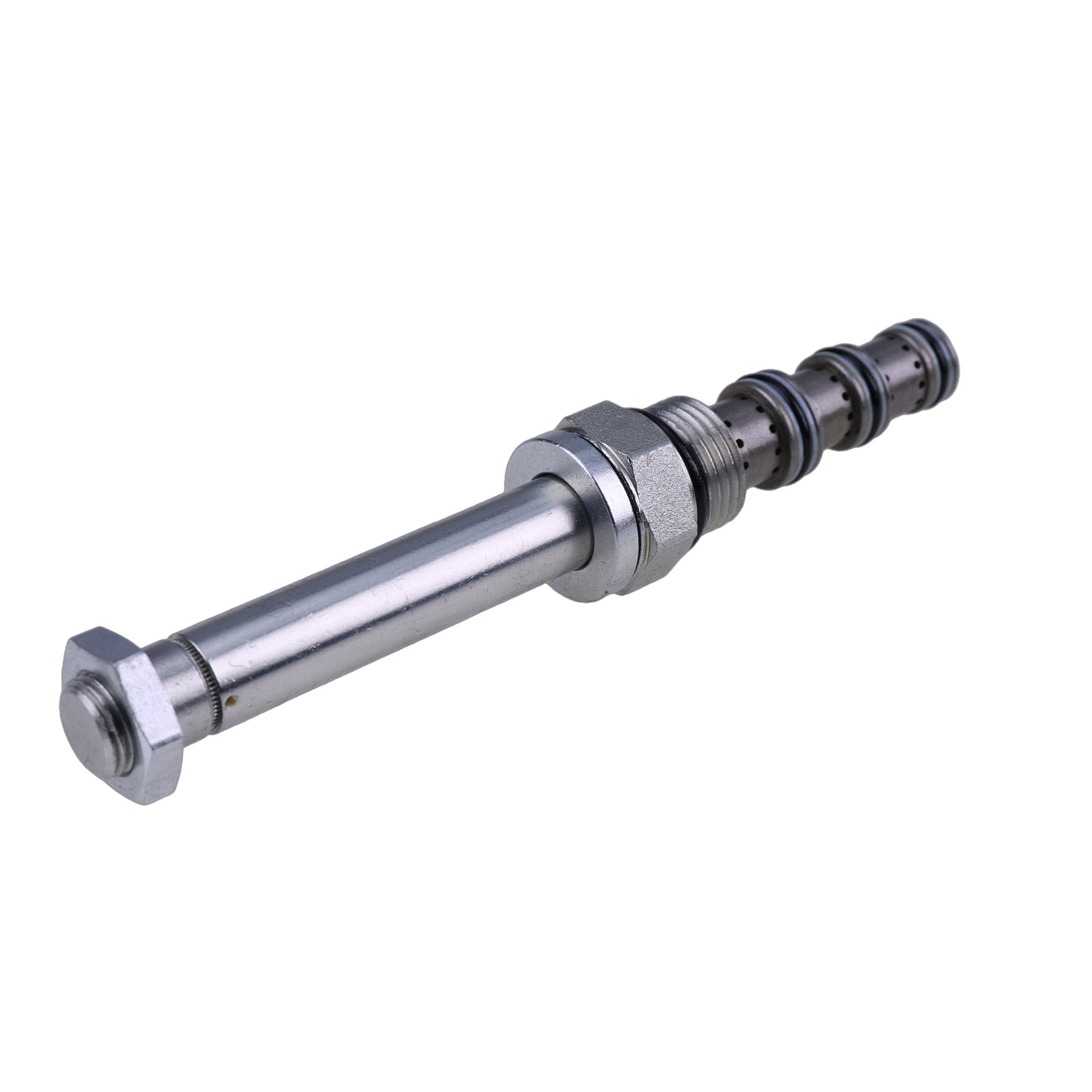

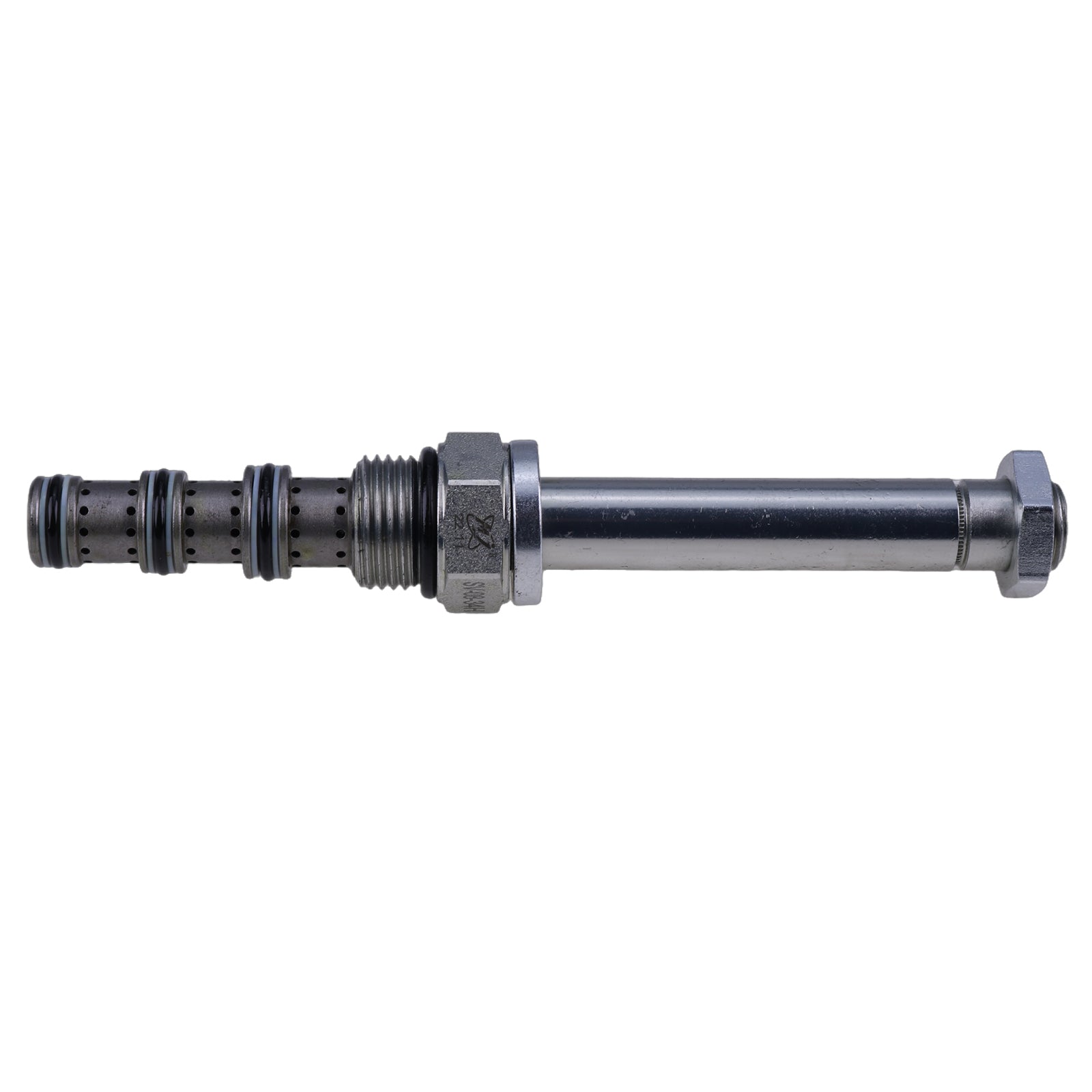

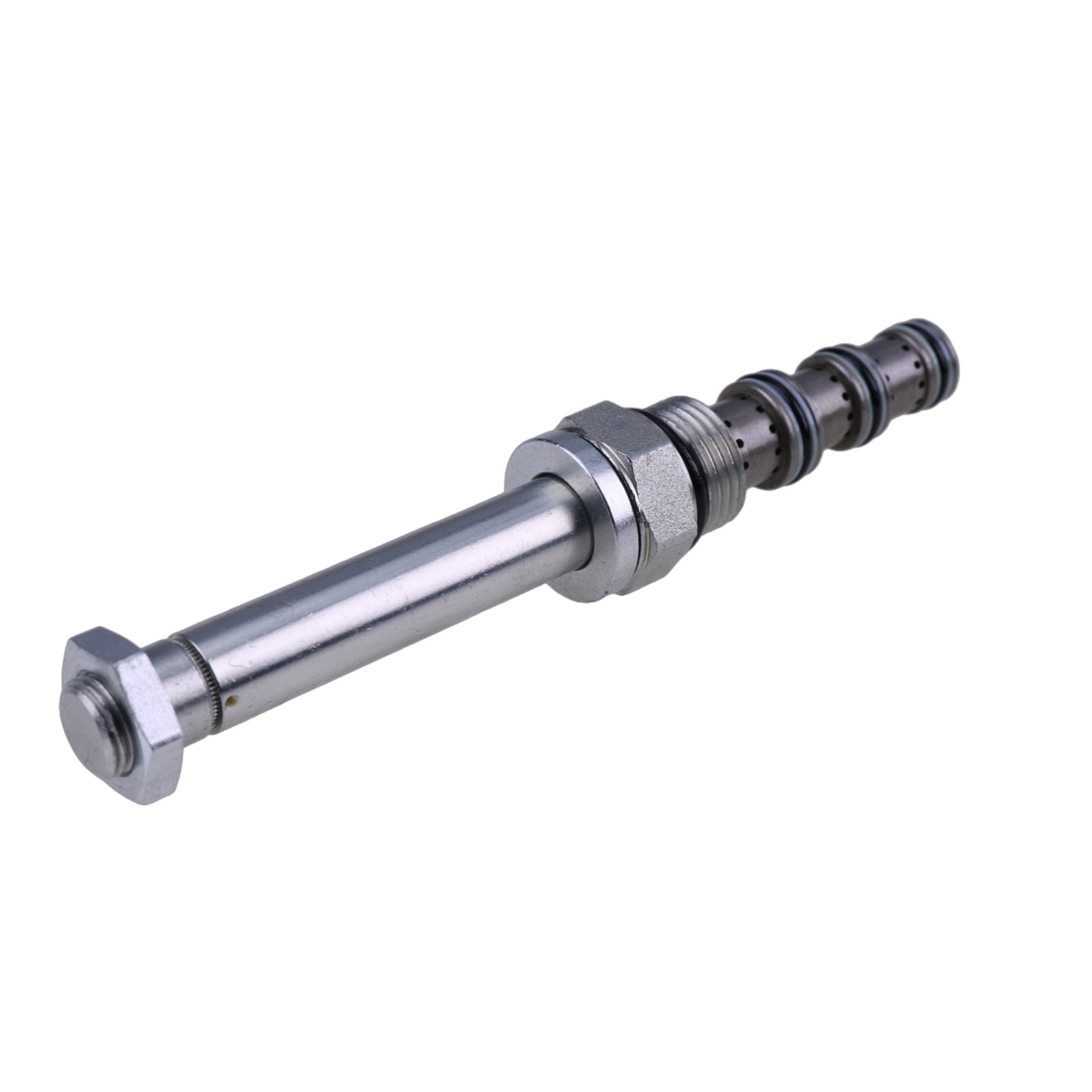

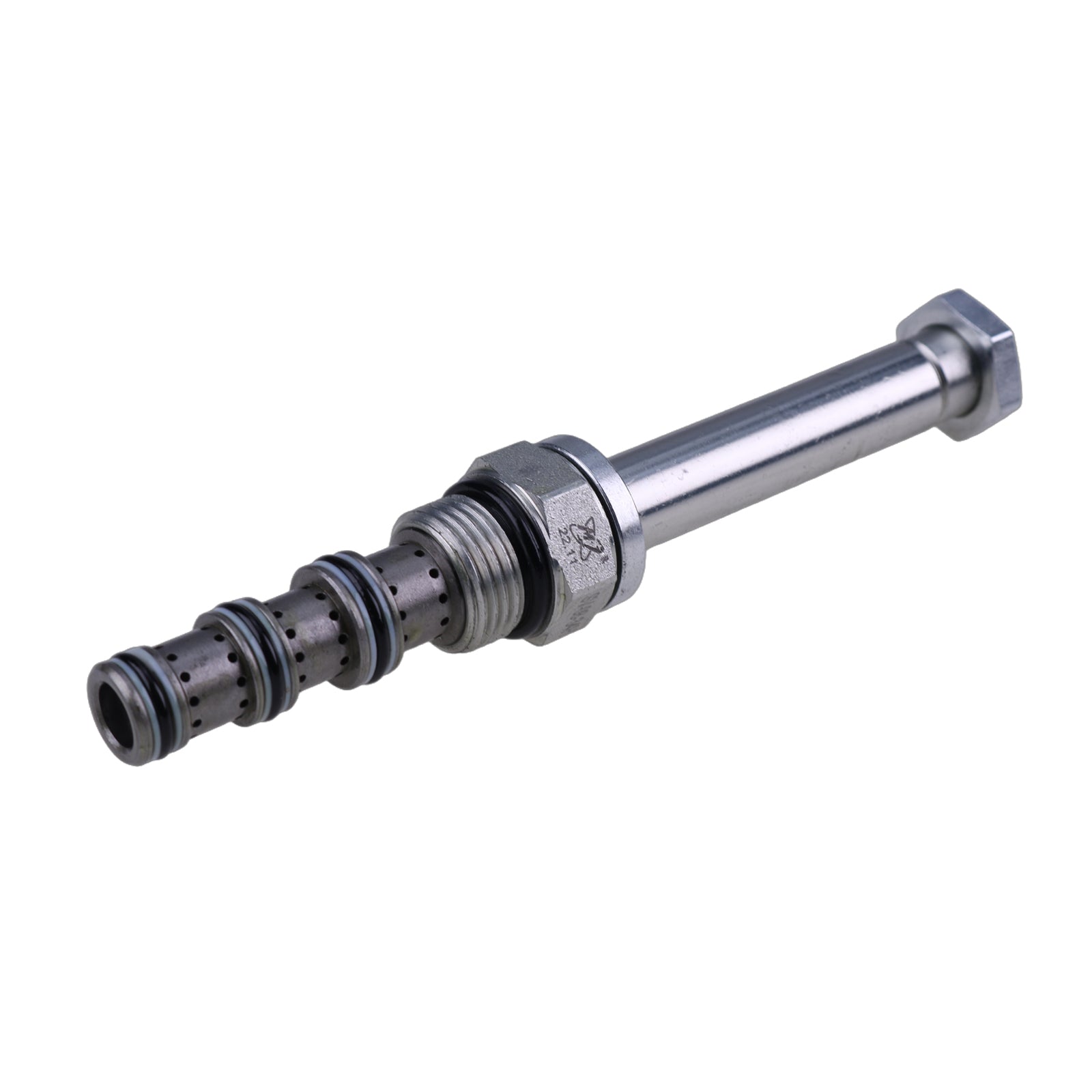

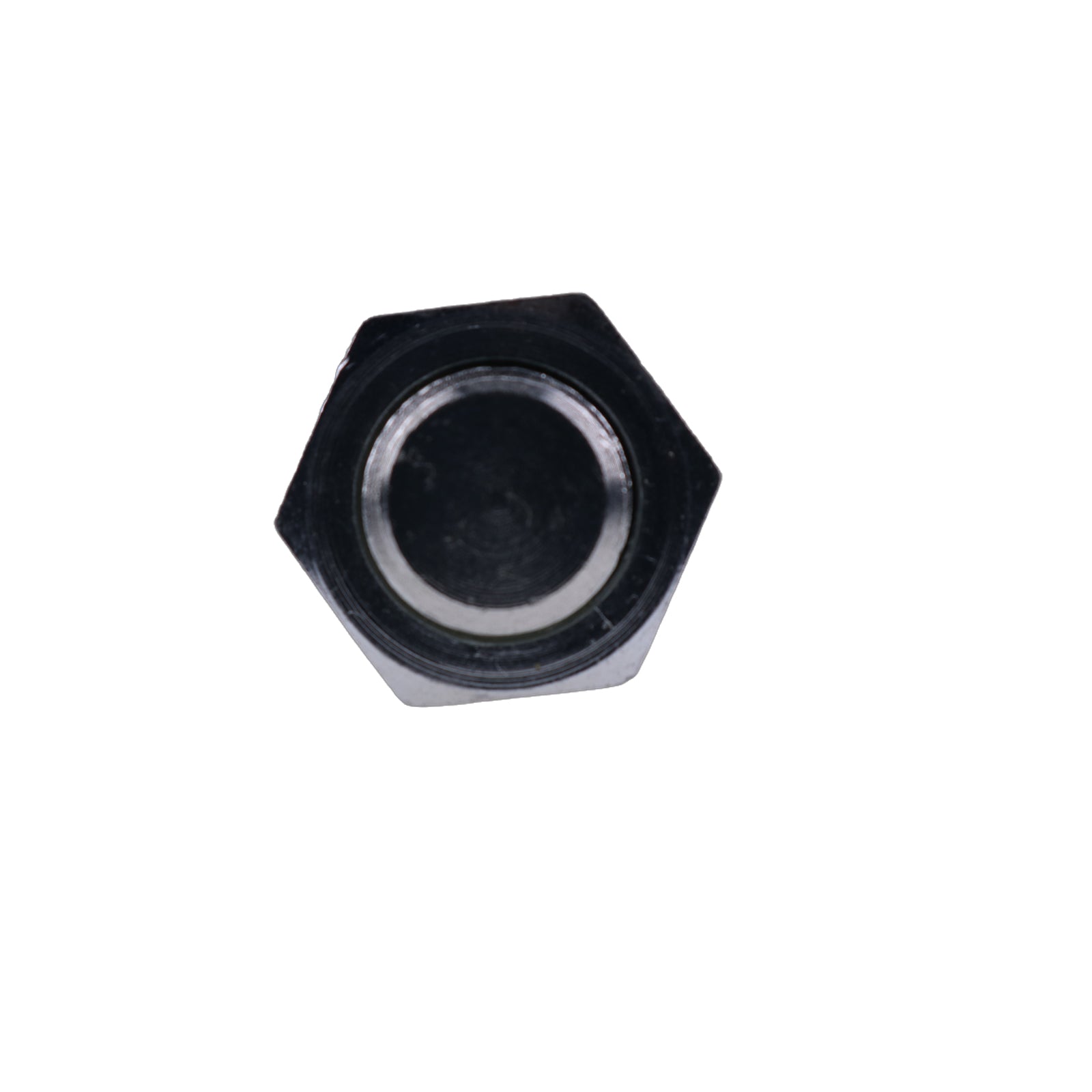

Solenoid Operated Spool Cartridge Valve SV0847B0N00 SV08-47B-0-N-00 for Hydraforce 4-Way 3-P

Solenoid Operated Spool Cartridge Valve SV0847B0N00 SV08-47B-0-N-00 for Hydraforce 4-Way 3-P

$74.00 USD
$74.00 USD
In offerta Esaurito
Spese di spedizione calcolate al check-out.
Part Name: Solenoid Operated Spool Cartridge Valve
Manufacturing Part Number: SV08-47B-0-N-00, SV0847B0N00
Application: For Hydraforce 4-Way 3-Position
Uses Size 08 (1/2″ Hole) Solenoids
Specification:
  • Pressure rating: 240 bar (3500 psi)
  • Proof Pressure: 344 bar (5000 psi)
  • Burst Pressure: 779 bar (11300 psi)
  • Maximum Internal Leakage: 164 ml/min (10 in³/min)
  • Operating fluid temperature: -40 to 100 °C (-40 to 212 °F)/-26 to 204 °C (-15 to 400 °F)/-54 to 107 °C (-65 to 225 °F)
  • Storage temperature: -40 to 70 °C (-40 to 160 °F)
  • Ambient Temperature: -40 to 70 °C (-40 to 160 °F)
  • Cavity: VC08-4, 08-size-4-way Cavities
  • Compatible Coils: 08 size D coils, 08 size E coils
