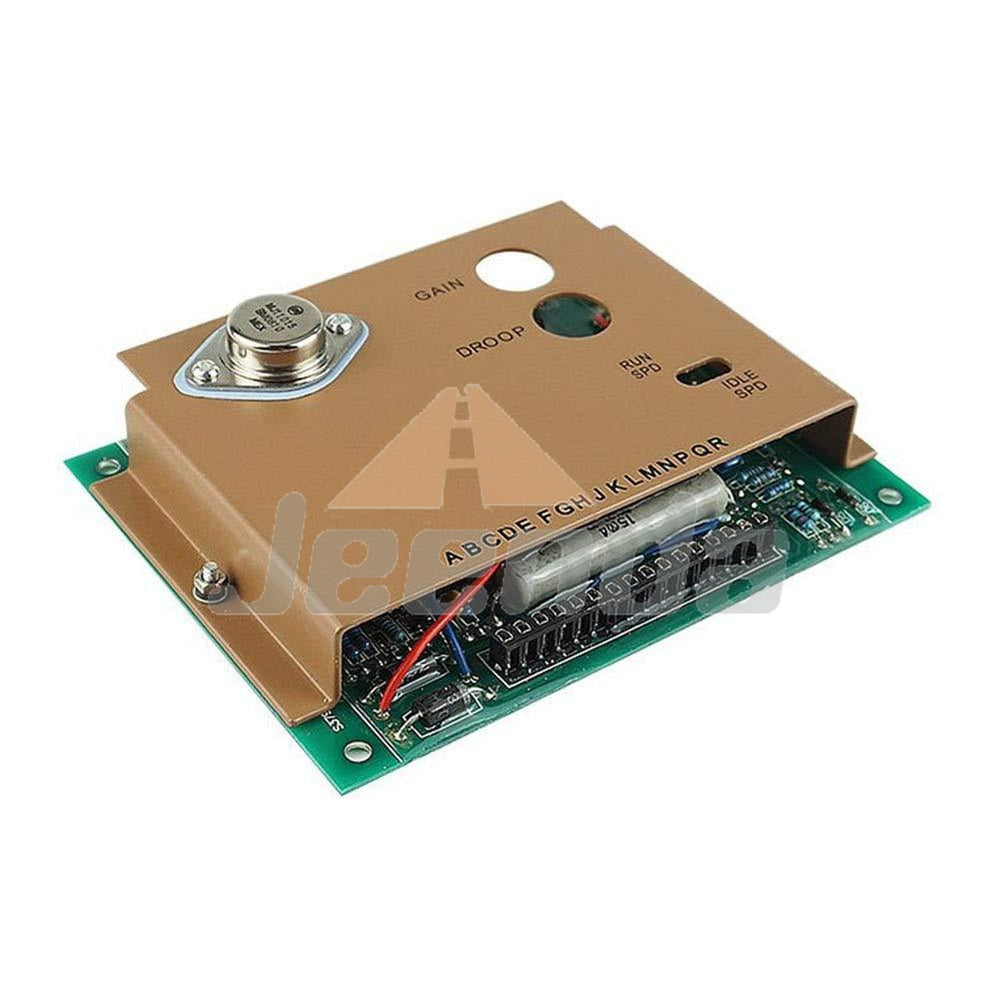

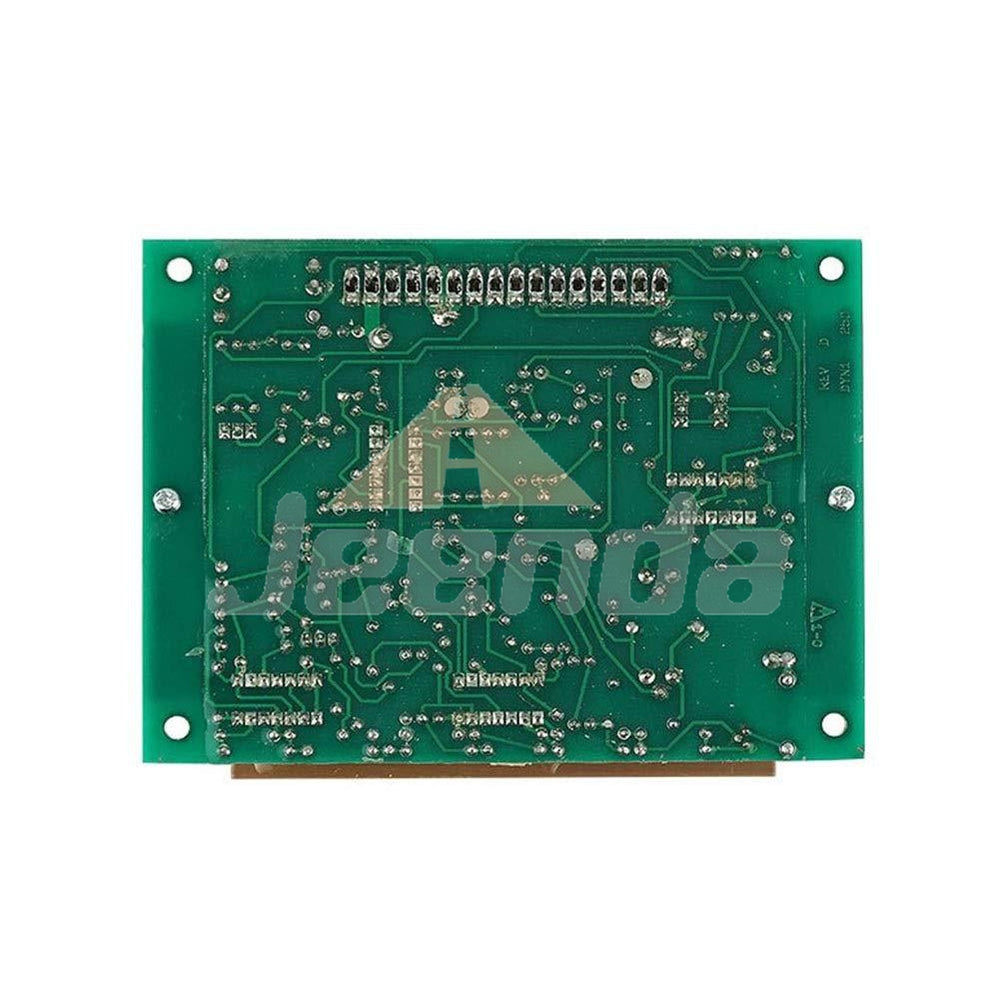

Speed Controller EFC 3062323 for Cummins Controller

Speed Controller EFC 3062323 for Cummins Generator

Electrical Parameters:

• Speed stability better than ±0.25%
• Speed range 1KHz ~ 6.5KHz
• Thermal stability up to ±0.7%
• IDLE adjustment 260 ±20Hz ~ 85% of rated speed
• DROOP adjustment Minimum position is 15Hz ±6Hz / load current change per ampere
• Maximum position 400Hz ±75Hz / load current change per ampere
• External speed adjustment ±200Hz (external 1KΩ)
• AUX input sensitivity 148Hz / 1V., ±10Hz
• Impedance 1MΩ

 Use of the Environment:

• Operating temperature range -40°C ~ 85°C
• Operating humidity range up to 95%
• Storage temperature -55°C ~ 92°C
• Vibration 20-100HZ 500mm/Sec.

Input power:

• Power supply voltage 24V DC battery system
• Ground polarity
• Power consumption 40mA
• Actuator continuous current minimum 1A; maximum 4.5A
• Speed sensor signal 2 ~ 120V RMS
