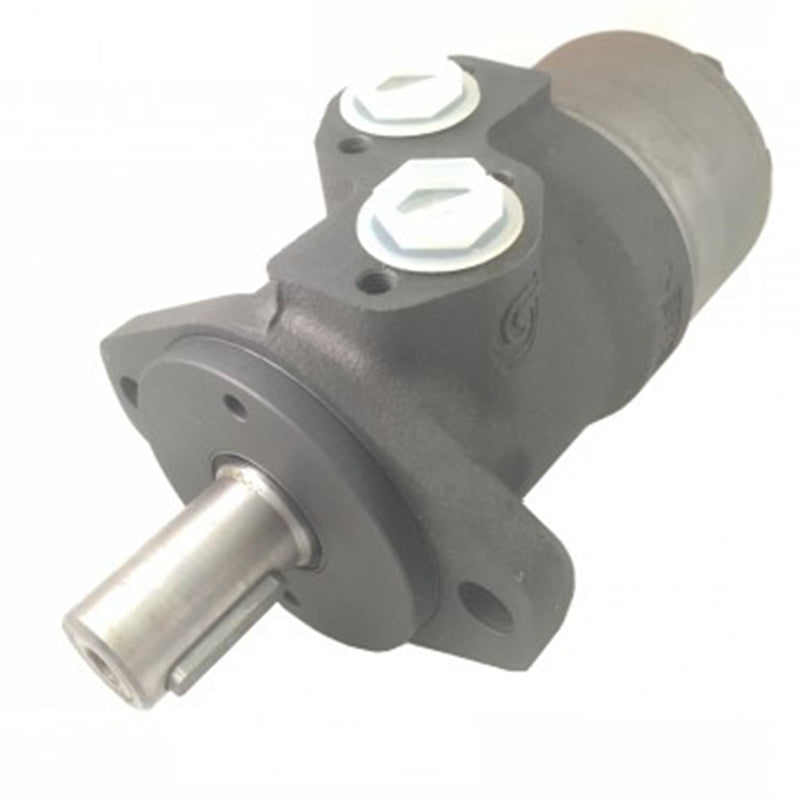

1'' 1/2 BSP Hydraulic Orbital Motor OMP315 - 151-0307 151-0607
1'' 1/2 BSP Hydraulic Orbital Motor OMP315 - 151-0307 151-0607
通常価格
$275.00 USD
通常価格
セール価格
$275.00 USD
配送料はチェックアウト時に計算されます。
Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMP315 - 151-0307, OMP315 - 151-0607, 1510307, 1510607
Manufacturing Part Number: OMP315 - 151-0307, OMP315 - 151-0607, 1510307, 1510607
Specification:
Type: OMP
Motor Size: 315
Geometric displacement: 306.1cm³/[18.73in]
Max speed cont: 195 rpm
Max speed int: 245 rpm
Max torque cont: 300Nm/[2660lbf in]
Max torque int: 390Nm/[3450lbf in]
Max output power cont: 5.0kW/[6.7hp]
Max output power int: 7.0kW/[9.4hp]
Max pressure drop cont: 75bar/[1090psi]
Max pressure drop int: 100bar[1450psi]
Max pressure drop peak: 160bar/[2320psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 5bar/[75psi]
Min starting torque at max press drop cont: 280Nm/[2480lbf in]
Min starting torque at max press drop int: 370Nm/[3280lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
Max speed cont: 195 rpm
Max speed int: 245 rpm
Max torque cont: 300Nm/[2660lbf in]
Max torque int: 390Nm/[3450lbf in]
Max output power cont: 5.0kW/[6.7hp]
Max output power int: 7.0kW/[9.4hp]
Max pressure drop cont: 75bar/[1090psi]
Max pressure drop int: 100bar[1450psi]
Max pressure drop peak: 160bar/[2320psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 5bar/[75psi]
Min starting torque at max press drop cont: 280Nm/[2480lbf in]
Min starting torque at max press drop int: 370Nm/[3280lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
