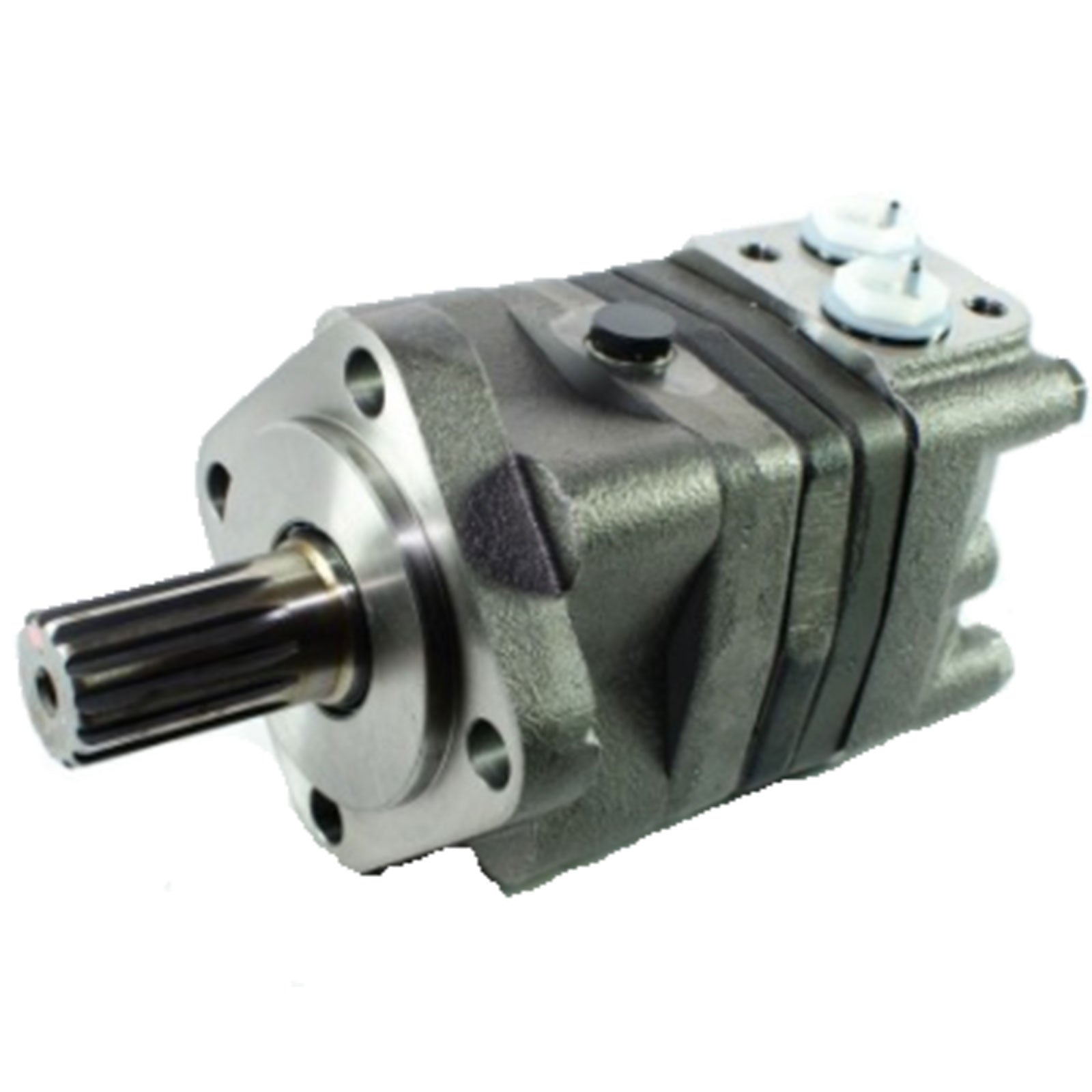

1.25'' 1/2 BSP Hydraulic Orbital Motor OMS315-151F0513 151F0513 OMS315151F0513
1.25'' 1/2 BSP Hydraulic Orbital Motor OMS315-151F0513 151F0513 OMS315151F0513
通常価格
$475.00 USD
通常価格
セール価格
$475.00 USD
配送料はチェックアウト時に計算されます。
Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMS315-151F0513, 151F0513, OMS315151F0513
Manufacturing Part Number: OMS315-151F0513, 151F0513, OMS315151F0513
Specification:
Type: OMS
Motor size: 315
Geometric displacement: 315.9cm³/[19.22in]
Max speed cont: 240 rpm
Max speed int: 285 rpm
Max torque cont: 825Nm/[7300lbf in]
Max torque int: 1000Nm/[8850lbf in]
Max output power cont: 15kW/[20.1hp]
Max output power int: 17.0kW/[22.8hp]
Max pressure drop cont: 200bar/[2900psi]
Max pressure drop int: 240bar/[3480psi]
Max pressure drop peak: 260bar[3770psi]
Max oil flow cont: 75L/min
Max oil flow int: 90L/min
Max starting pressure with unloaded shaft: 8bar/[115psi]
Min starting torque at max press drop cont: 710Nm/[6280lbf in]
Min starting torque at max press drop int: 850Nm/[7520lbf in]
Max inlet pressure cont: 230bar/[3340psi]
Max inlet pressure int: 295bar/[4280psi]
Max inlet pressure peak: 300bar/[4350psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 210bar/[3050psi]
Max speed cont: 240 rpm
Max speed int: 285 rpm
Max torque cont: 825Nm/[7300lbf in]
Max torque int: 1000Nm/[8850lbf in]
Max output power cont: 15kW/[20.1hp]
Max output power int: 17.0kW/[22.8hp]
Max pressure drop cont: 200bar/[2900psi]
Max pressure drop int: 240bar/[3480psi]
Max pressure drop peak: 260bar[3770psi]
Max oil flow cont: 75L/min
Max oil flow int: 90L/min
Max starting pressure with unloaded shaft: 8bar/[115psi]
Min starting torque at max press drop cont: 710Nm/[6280lbf in]
Min starting torque at max press drop int: 850Nm/[7520lbf in]
Max inlet pressure cont: 230bar/[3340psi]
Max inlet pressure int: 295bar/[4280psi]
Max inlet pressure peak: 300bar/[4350psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 210bar/[3050psi]
