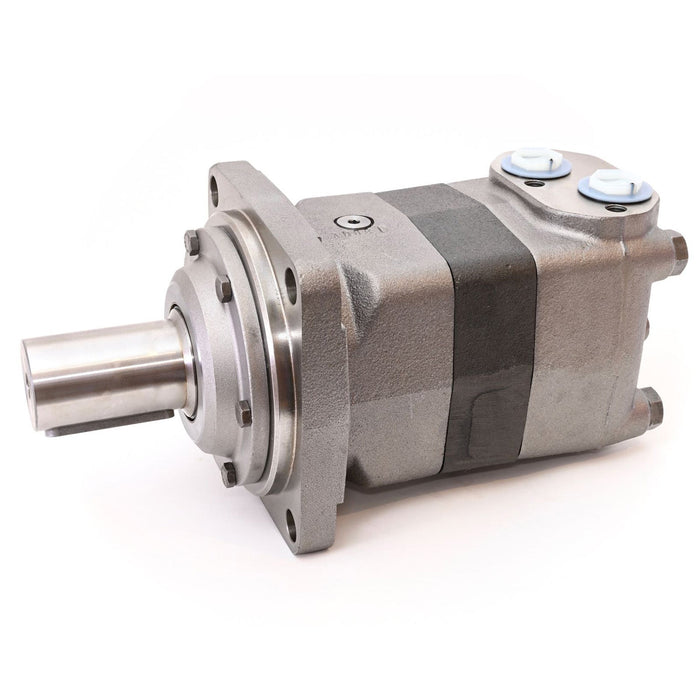

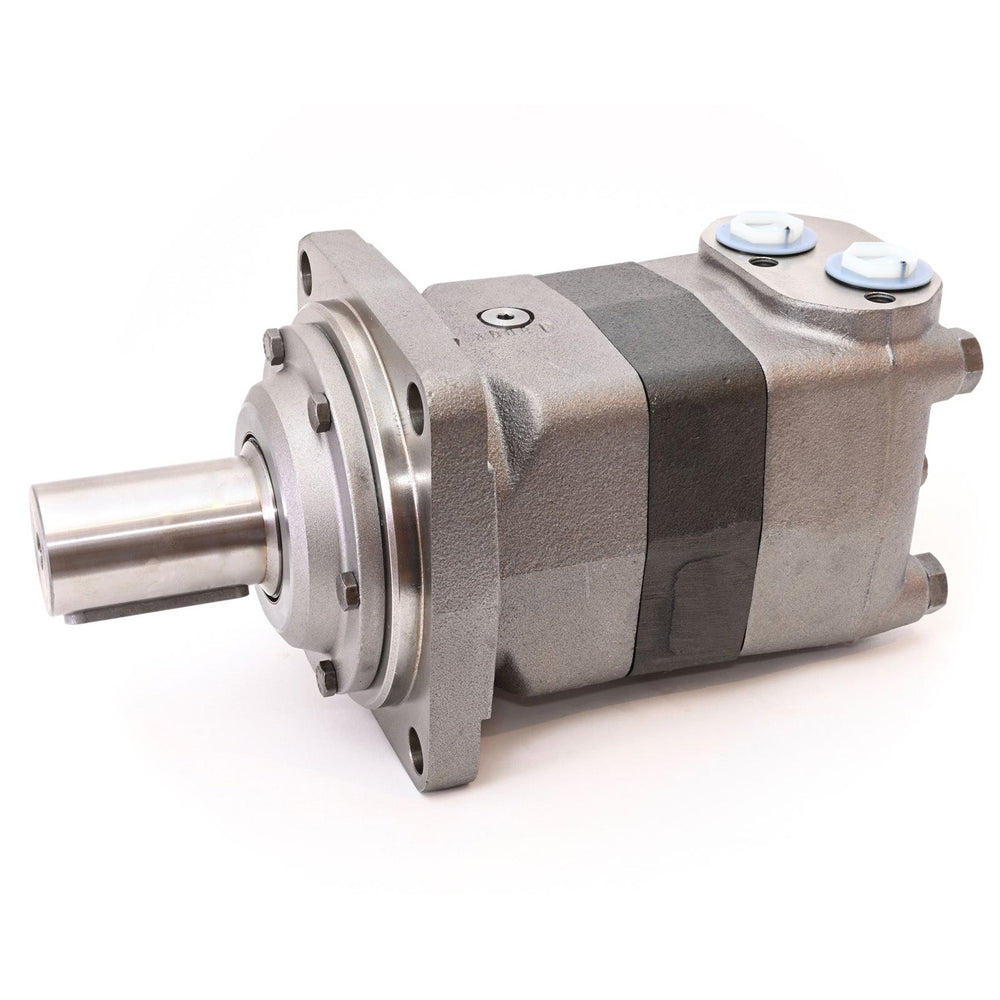

1 5/16 - 12 UN Hydraulic Motor 151B2154 OMV800-151B2154 151B-2154

Part Number: 151B2154, OMV800-151B2154, 151B-2154

Motorseries: O-Series

Basic Motor: OMV

Displacement: 800

Mounting Flange: Standard

Shaft Style: Cylindrical

Shaft Size: 2 1/4 inch ; 3/8-16 UNC tap

Shaft Key: 1/2 x 1/2 x 2 1/4 inch (B.S. 46)

Port Size: Side port

Port Dimension: 1 5/16 - 12 UN

Drain Port Style: Standard

Drain port Dimension: 9/16 - 18 UNF

Front bearing: Tapered roller bearing

Rear bearing: Tapered roller bearing
