1'' Hydraulic Orbital Motor OMR80 - 151-0701 151-0401 OMR x 80 - 11185560
1'' Hydraulic Orbital Motor OMR80 - 151-0701 151-0401 OMR x 80 - 11185560
通常価格
$248.00 USD
通常価格
セール価格
$248.00 USD
配送料はチェックアウト時に計算されます。

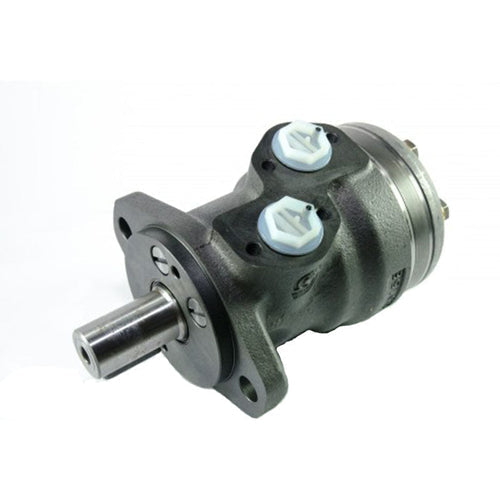

Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMR80 - 151-0401, OMR80 - 151-0701, OMR x 80 - 11185560, 1510701
Manufacturing Part Number: OMR80 - 151-0401, OMR80 - 151-0701, OMR x 80 - 11185560, 1510701
Specification:
Geometric displacement: 80.3cm³/[4.91in]
Max speed cont: 750rpm
Max speed int: 940rpm
Max torque cont: 195Nm/[1730lbf in]
Max torque int: 220Nm/[1960lbf in]
Max output power cont: 12.5kW/[16.8hp]
Max output power int: 15.0kW/[20.1hp]
Max pressure drop cont: 175bar/[2540psi]
Max pressure drop int: 200bar/[2900psi]
Max pressure drop peak: 225bar[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 10bar/[145psi]
Min starting torque at max press drop cont: 150Nm/[1330lbf in]
Min starting torque at max press drop int: 170Nm/[1510lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
Max speed cont: 750rpm
Max speed int: 940rpm
Max torque cont: 195Nm/[1730lbf in]
Max torque int: 220Nm/[1960lbf in]
Max output power cont: 12.5kW/[16.8hp]
Max output power int: 15.0kW/[20.1hp]
Max pressure drop cont: 175bar/[2540psi]
Max pressure drop int: 200bar/[2900psi]
Max pressure drop peak: 225bar[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 10bar/[145psi]
Min starting torque at max press drop cont: 150Nm/[1330lbf in]
Min starting torque at max press drop int: 170Nm/[1510lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
